Slide Adjuster Disassembly/Assembly

SLIDE ADJUSTER DISASSEMBLY/ASSEMBLY

CAUTION: When disassembling/assembling the slide adjuster, perform the work on a flat, level surface to prevent whine noise from the motors.

1. Remove the slide adjuster.

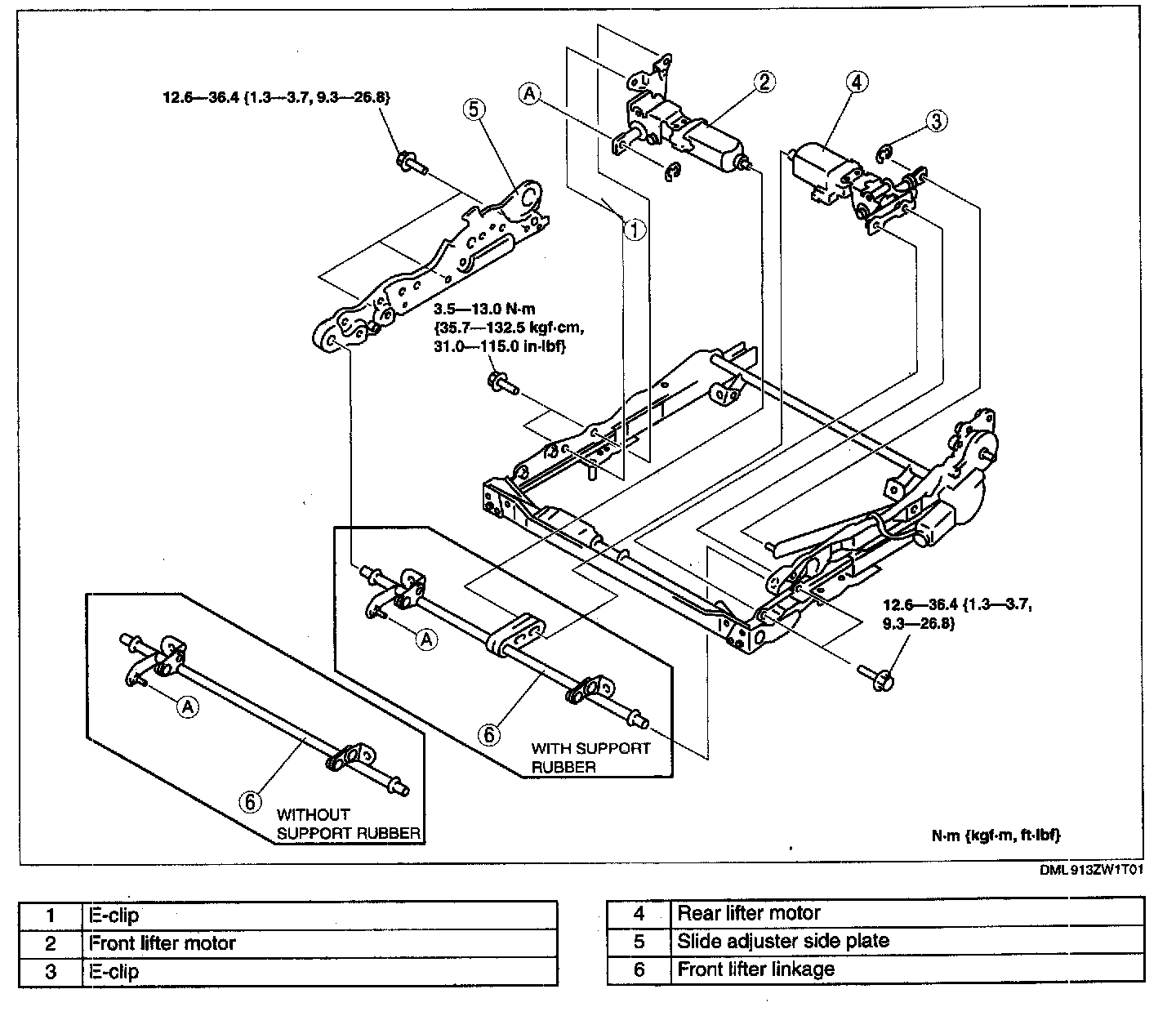

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
