WDS Scan Tool

Active Command Modes Procedure

Note:
^ When driving the ABS motor and each valve forcibly, turn ABSVLVRLY on, and then each command on. ABSVLVRLY regulates the power supply for the ABS motor and eight valves.

1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the steering column.
2. Turn the ignition switch to ON (Engine OFF) or start engine.
3. Activate active command modes by WDS or equivalent.

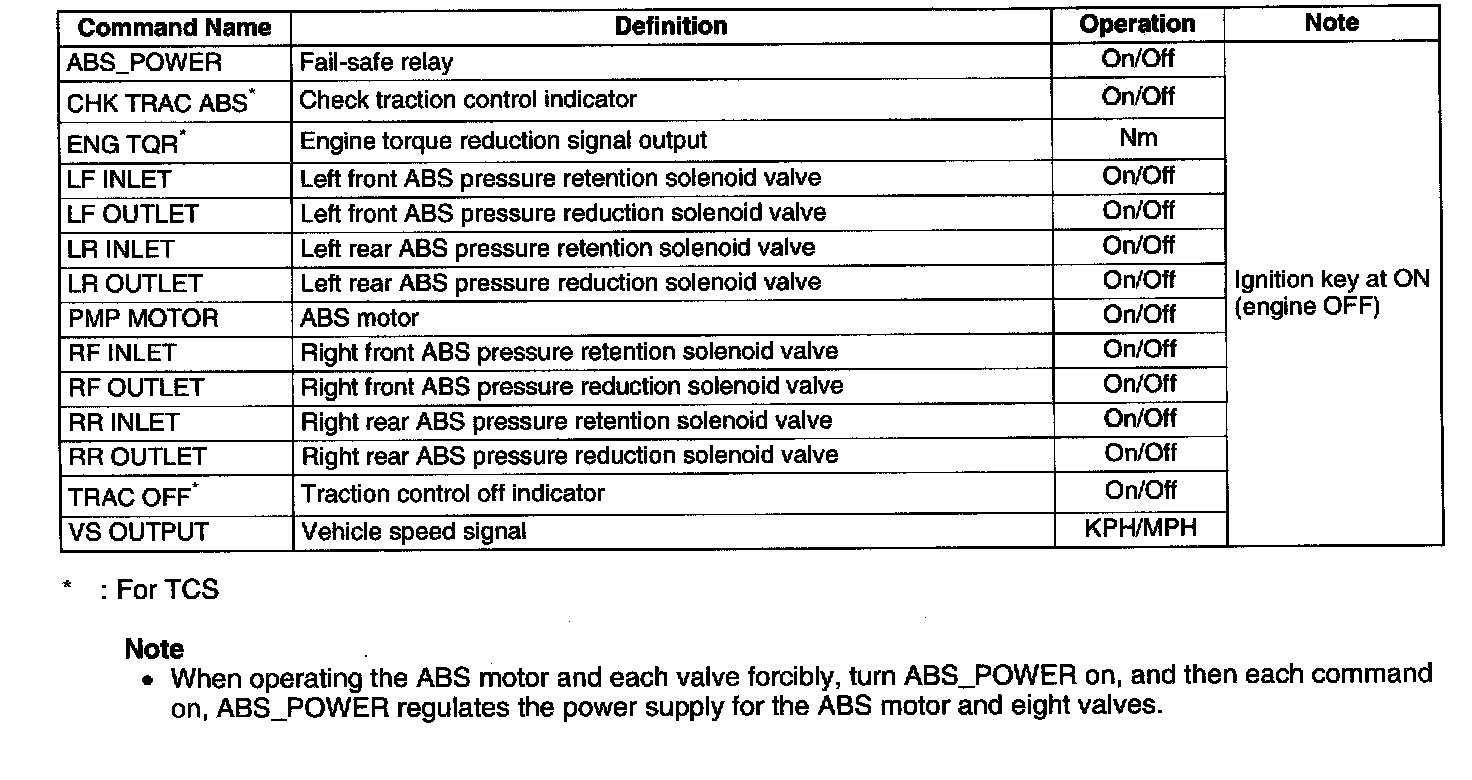

Active Command Modes Table
