Traction Control Switch: Testing and Inspection

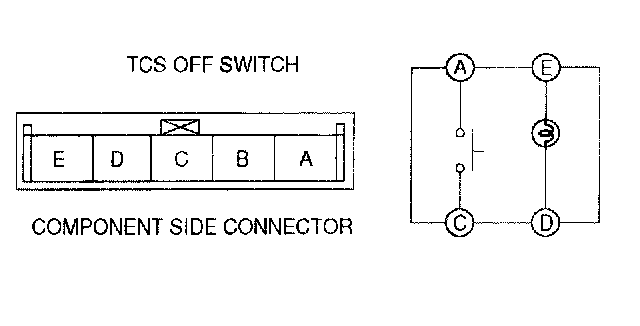

TCS OFF SWITCH INSPECTION1. Remove the TCS OFF switch.

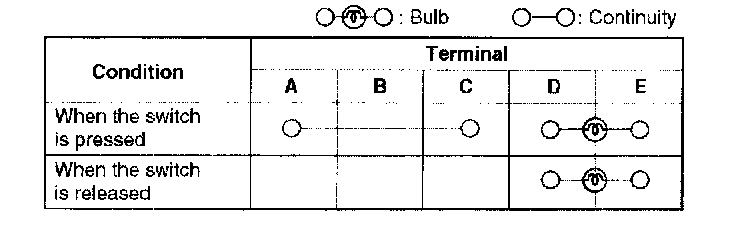

2. Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
^ If not within the specification, replace the TCS OFF switch.
1. Remove the TCS OFF switch.
2. Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
^ If not within the specification, replace the TCS OFF switch.
