Cruise Control Switch: Service and Repair

AUDIO CONTROL SWITCH REMOVAL/INSTALLATION

NOTE: The audio control switch and the cruise control switch use a common connector.

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/ INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM], DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
3. Remove the steering wheel.

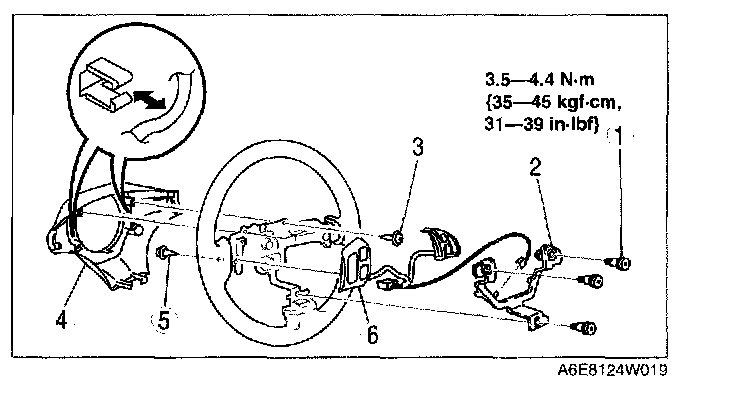

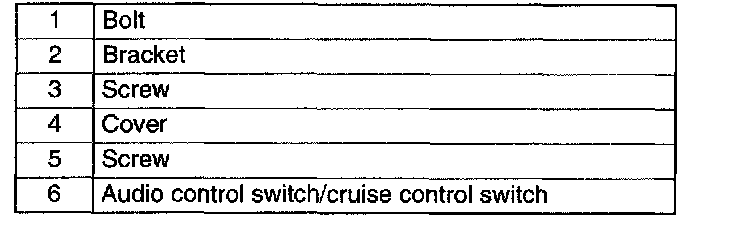

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
