Disassembly/Assembly
ENGINE DISASSEMBLY/ASSEMBLY 1.
Disconnect the engine and automatic transaxle.
2.
Remove the drive plate.
3.
Remove the intake-air system.
4.
Remove the
exhaust system.
5.

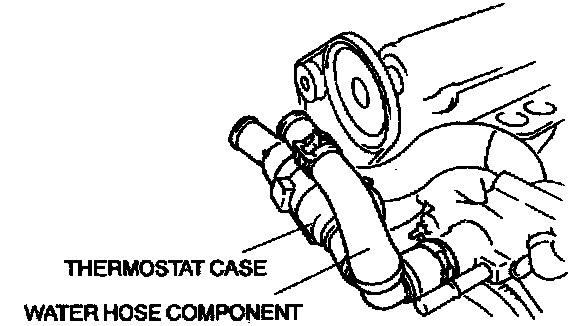

Remove the thermostat case and water hose component.
6.
Remove the water bypass tube.
7.
Remove the Ignition coils.
8.

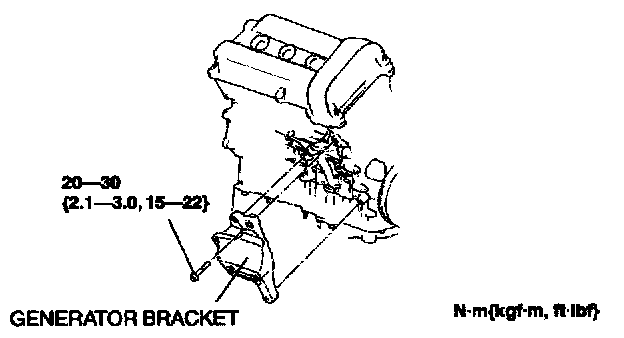

Remove the generator bracket.
9.
Assemble in the reverse order of disassembly.
