Front Resistor

FRONT RESISTOR INSPECTION

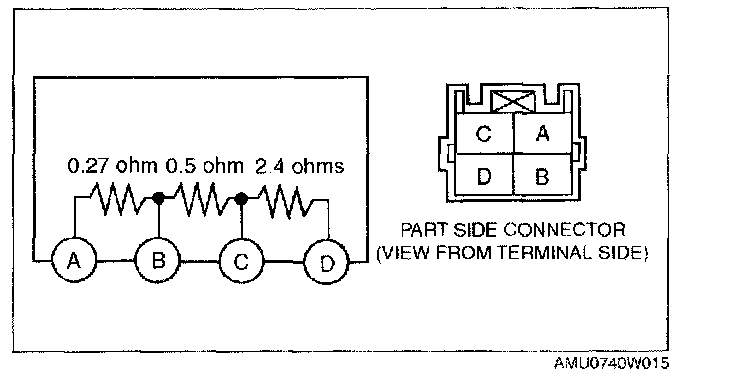

1. Verify that the resistance between the terminals of the front resistor is as shown in the table.
- If there is any malfunction, replace the front resistor.
