Disassembly and Assembly

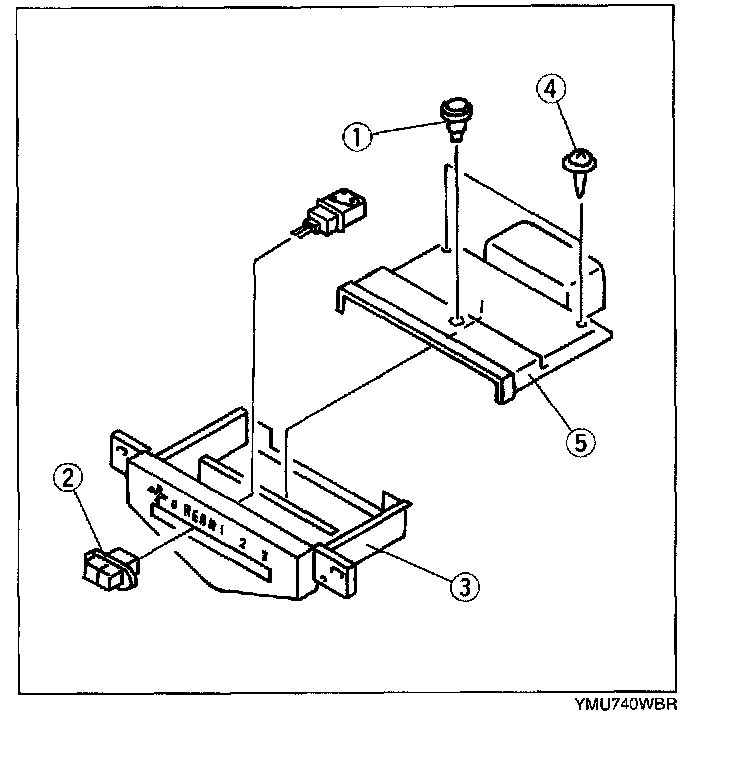

REAR MAIN FAN SWITCH DISASSEMBLY/ASSEMBLY

1. Remove the rear main fan switch. (See REAR MAIN FAN SWITCH REMOVAL/INSTALLATION.)

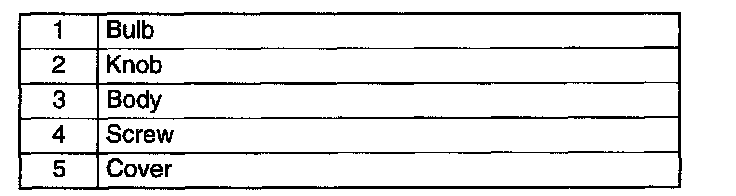

2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.
