Compressor Clutch: Service and Repair
MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY 1.
Remove the A/C compressor.
2.

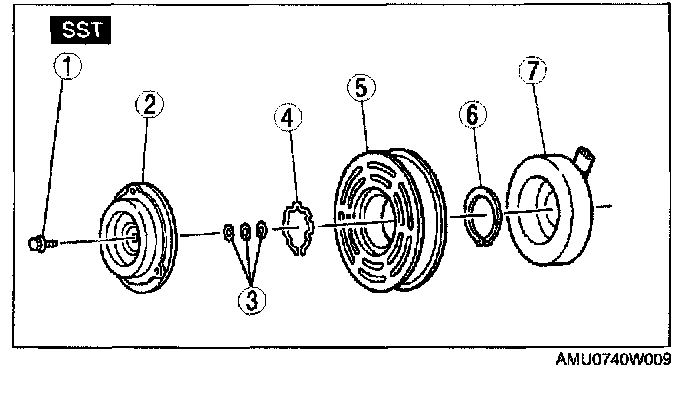

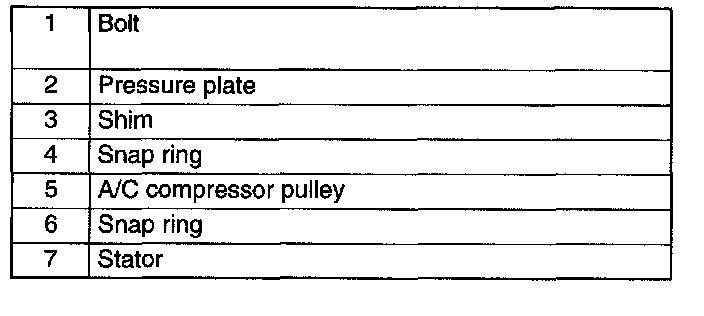

Disassemble in the order indicated in the table.
3.
Assemble in the reverse order of disassembly.
4.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)

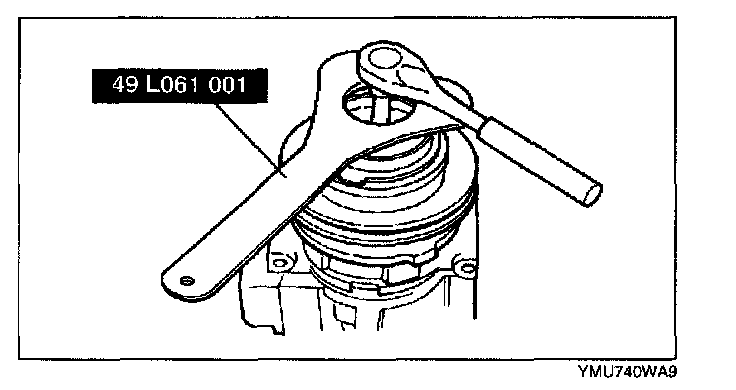

Bolt Disassembly Note: 1.
Remove the bolt using the SST.
