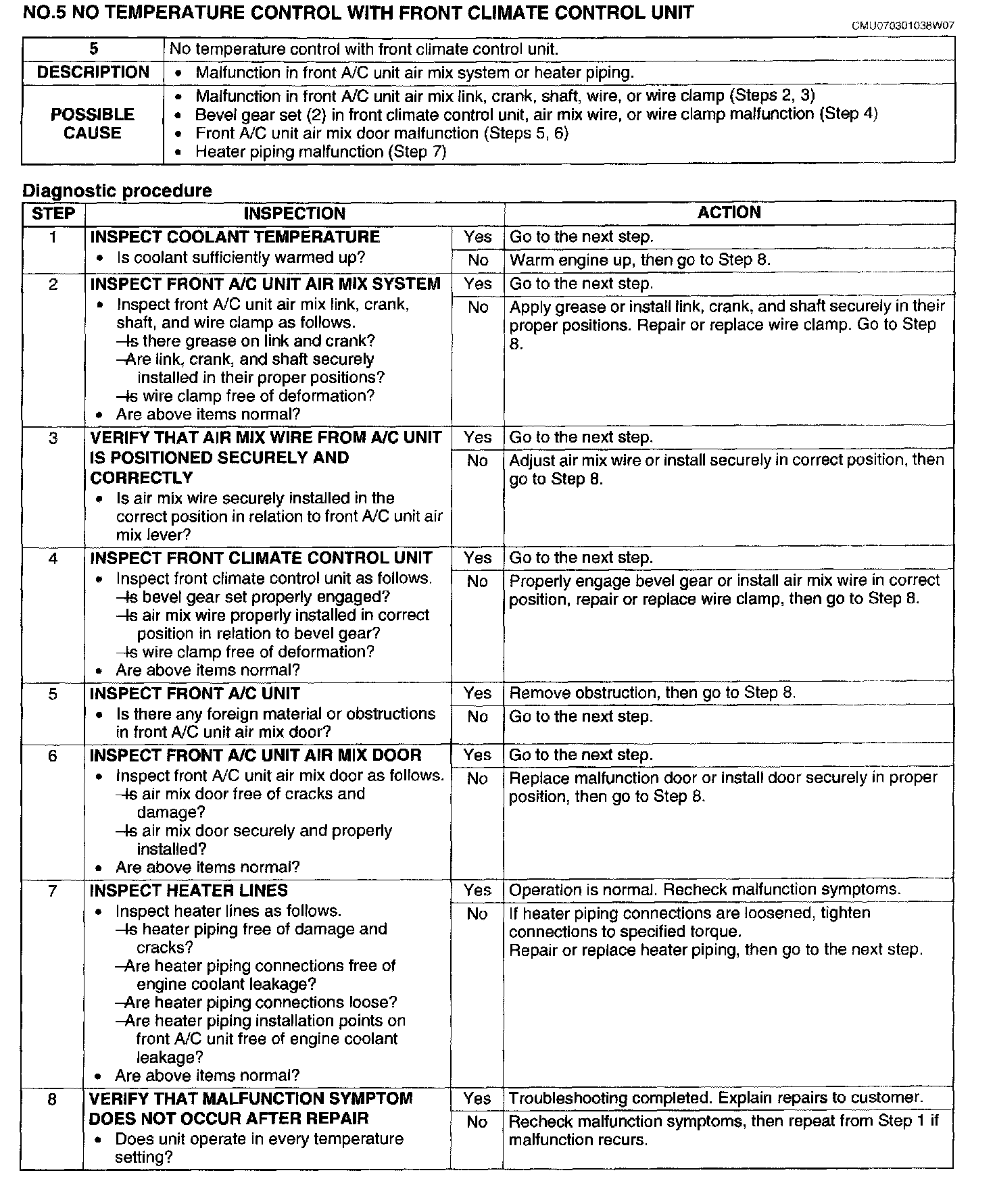

No.5 No Temperature Control With Front Climate Control Unit
No.5 No Temperature Control With Front Climate Control Unit
Step 1 - 8:
