Troubleshooting Index

FOREWORD

- Thoroughly read and understand the basic flow of troubleshooting in order to properly perform the procedures. (See Troubleshooting Procedure.)

- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.

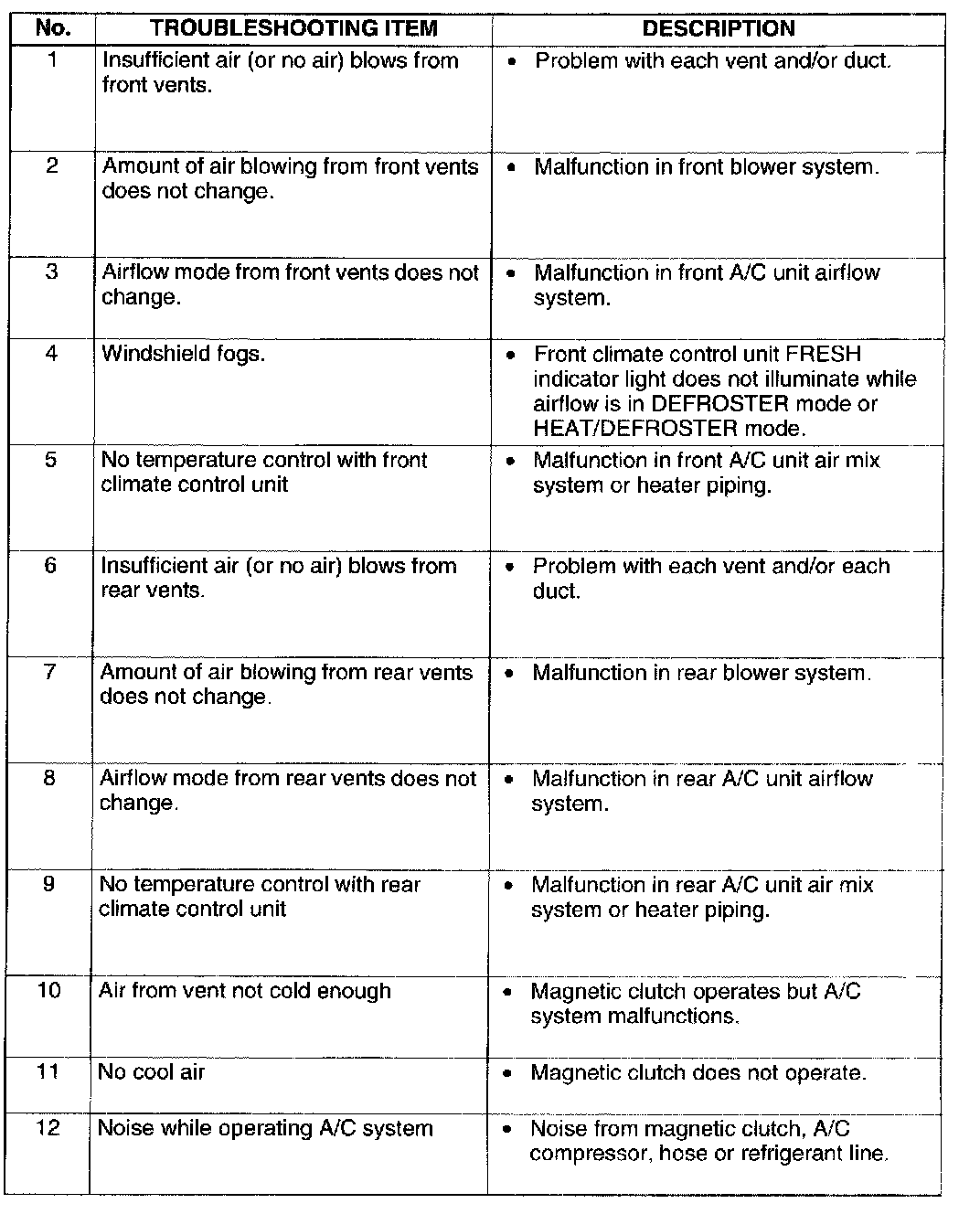

Troubleshooting Index:




- The areas for inspection (steps) are given according to various circuit malfunctions. Use the chart given to verify the symptoms of the trouble in order to diagnose the appropriate area.
