Cargo Lamp: Service and Repair

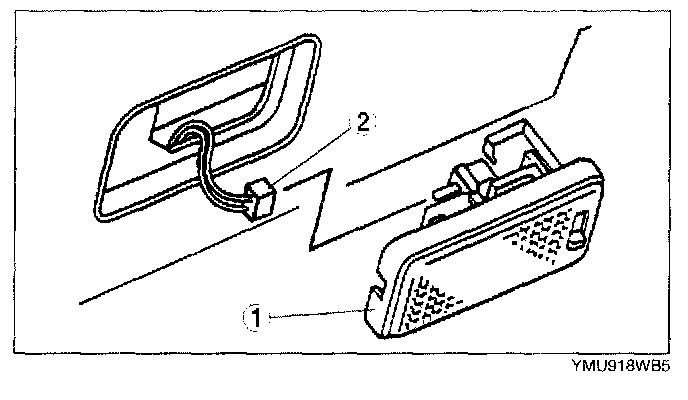

CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.







2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

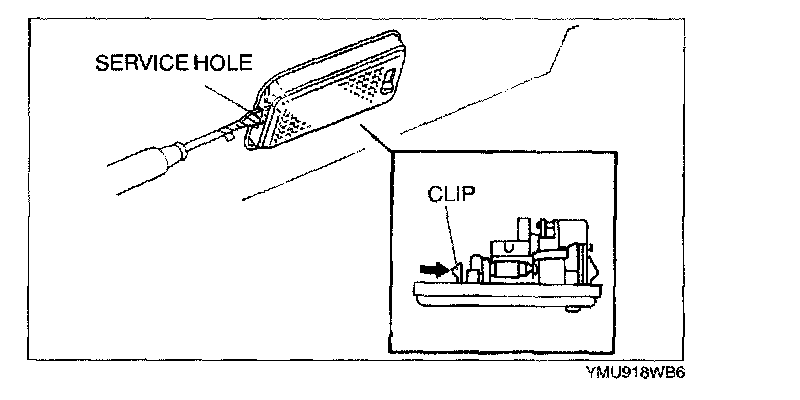

Cargo Compartment Light Removal Note:




1. Insert a tape-wrapped flathead screwdriver into the service hole.
2. Press the clip with the flathead screwdriver to remove the cargo compartment light.
