Courtesy Lamp: Service and Repair

INTERIOR LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

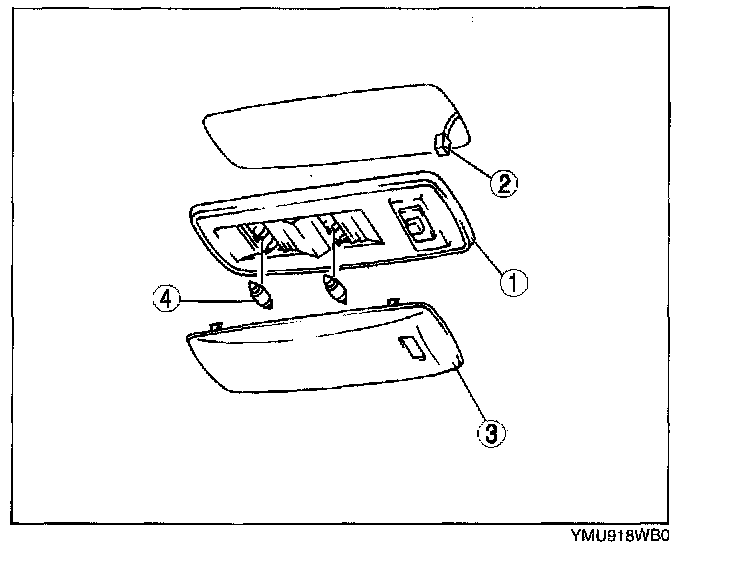

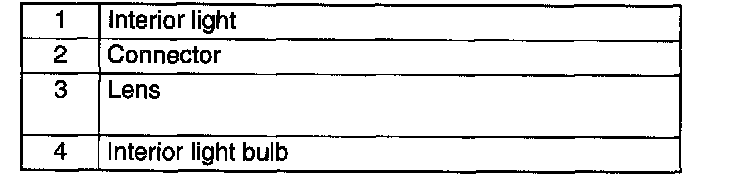

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

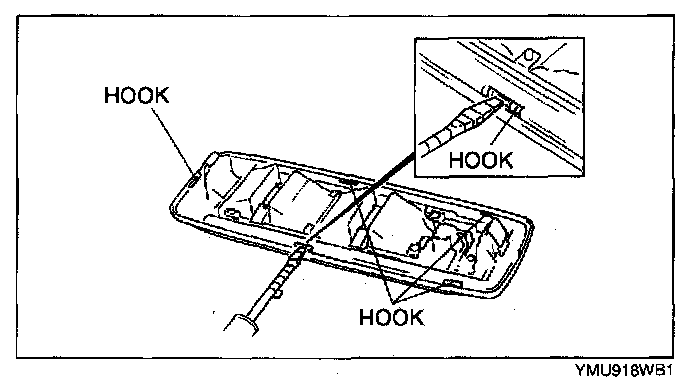

Lens Removal Note:




1. Insert a tape-wrapped flathead screwdriver into the service hole.
2. Push the hooks to remove the lens.
