Dimmer Switch: Service and Repair

PANEL LIGHT CONTROL SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the driver-side side panel.

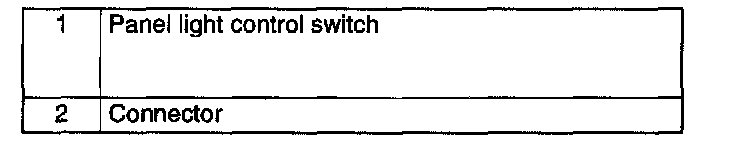

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

Panel Light Control Switch Removal Note:

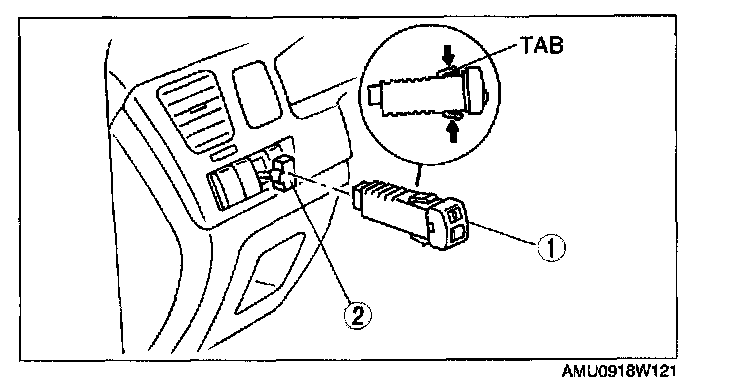

1. Insert your hand into the hole in the driver-side side panel, grasp the tabs of the panel light control switch and pull it forward to remove.
