Front Drive Belt Replacement

Front Drive Belt Replacement
1. Remove the splash shield (RH).

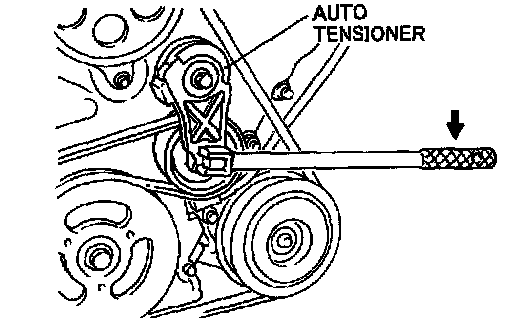

2. Set a breaker bar on the center of the tensioner pulley as shown.
3. Using the breaker bar, turn the center of the tensioner pulley clockwise to release tension to the drive belt.
4. Remove the drive belt.
5. Reinstall the drive belt or install a new drive belt.
6. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.
7. Install the splash shield (RH).
