Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2004
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

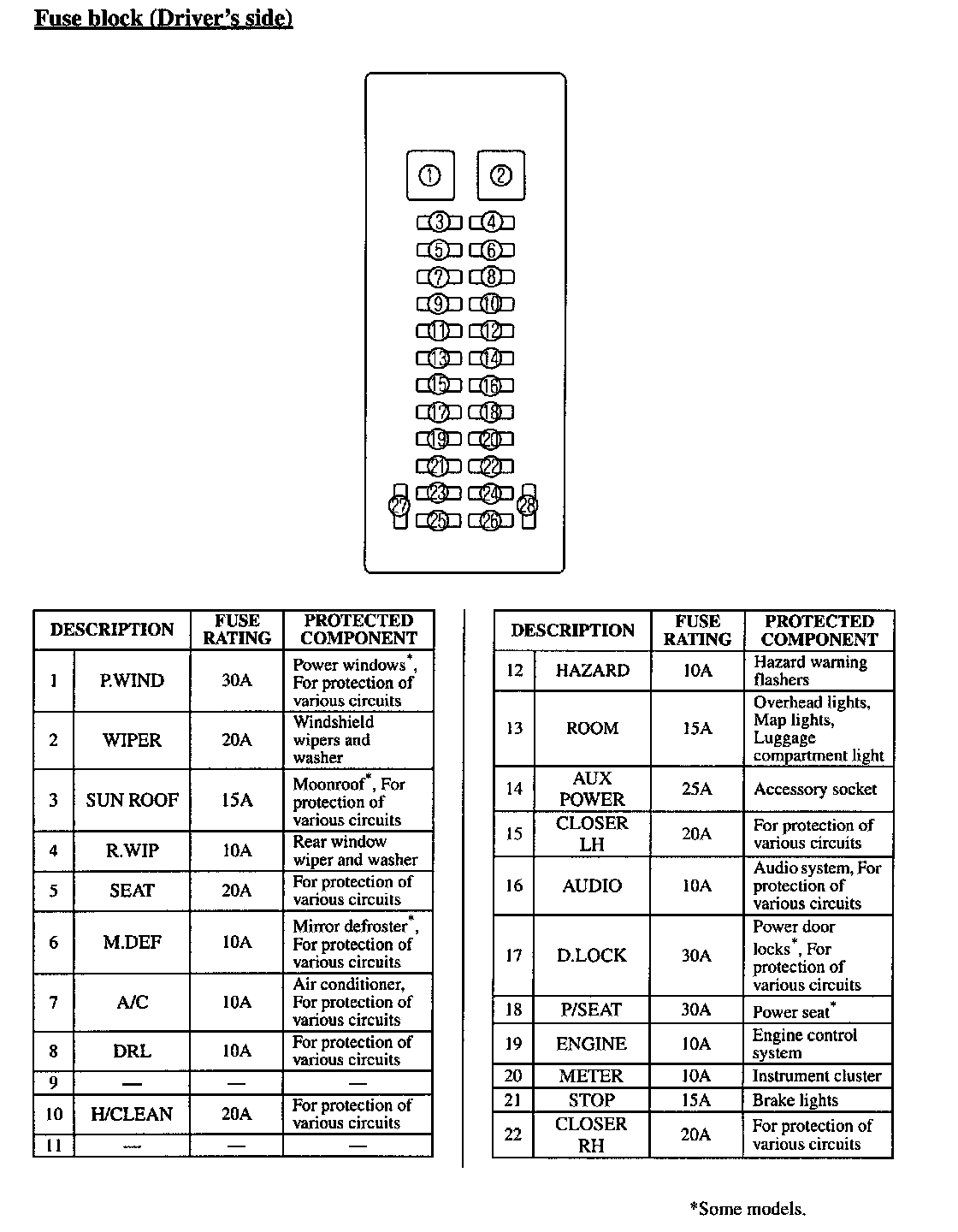

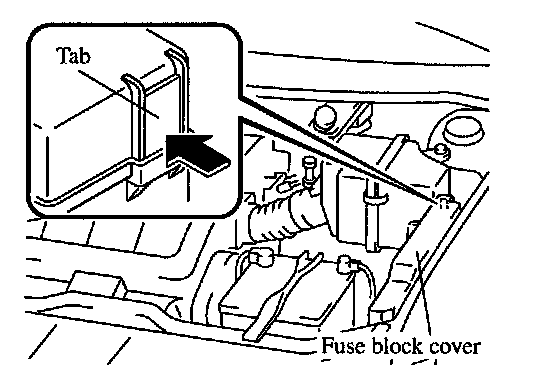

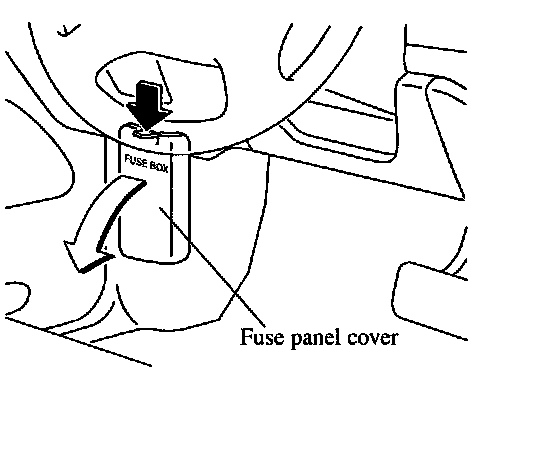

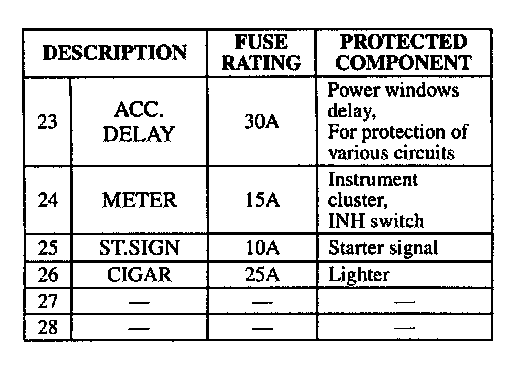

Component Locations
Component Locations
