Home >> Mazda >> 2004 >> MPV V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations >> Connector Locations >> Except North American Market

Except North American Market

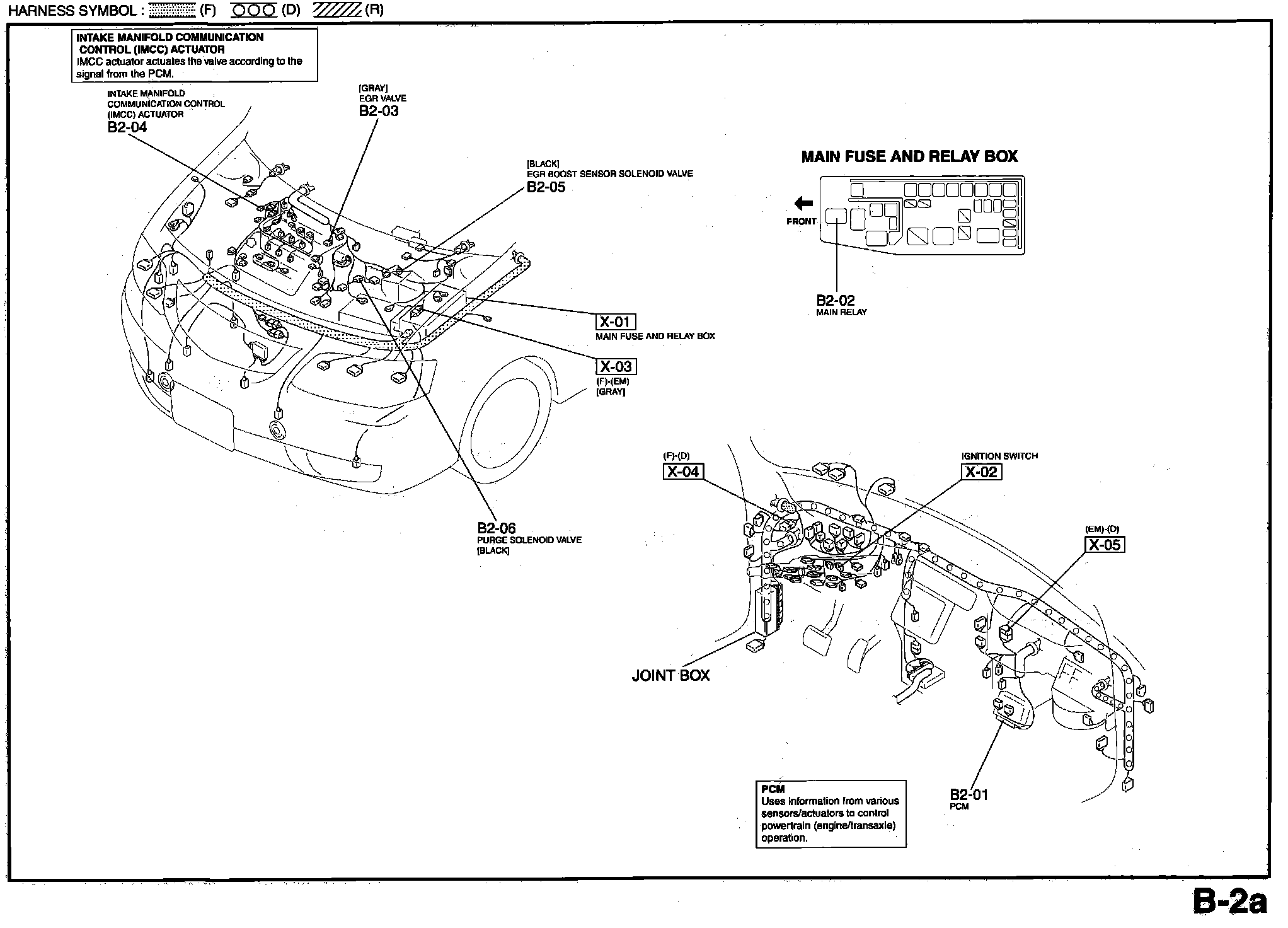

Routing View B-2a:
