Power Steering Pressure Switch: Testing and Inspection
POWER STEERING PRESSURE (PSP) SWITCH INSPECTIONNOTE: Perform the following test only when directed.
Continuity Inspection
1. Inspect the following if the power steering is inoperative (See POWER STEERING FLUID INSPECTION.):
- Power steering fluid level
- Power steering fluid leakage
- Power steering fluid pressure
2. Disconnect the PSP switch connector.
3. Start the engine.
4. Inspect for continuity between the PSP switch terminal and GND using an ohmmeter.
- If not as specified, replace the PSP switch.
- If the PSP switch is okay, but PID value or PCM terminal 31 voltage are out of specification, perform the "Circuit Open/Short Inspection".

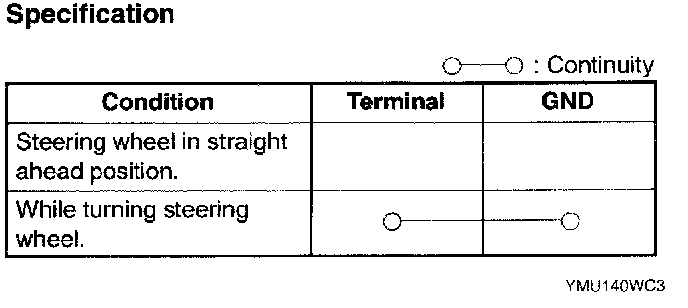

Specification
Circuit Open/Short Inspection
1. Disconnect the PCM connector.(See PCM REMOVAL/INSTALLATION.)

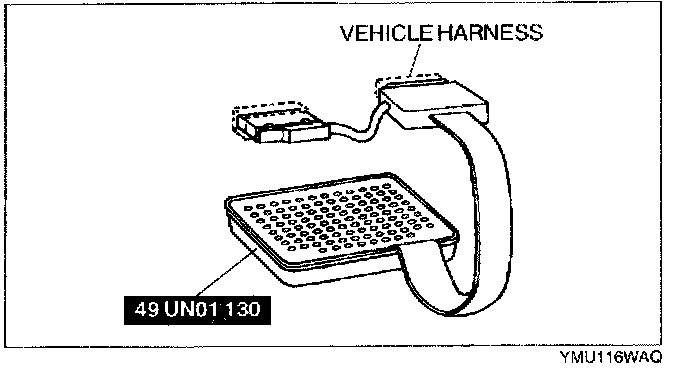

2. Connect the SST (104 Pin Breakout Box) with the PCM disconnected.
3. Tighten the connector attaching bolt.
Tightening torque: 3.0-5.4 Nm {30-56 kgf.cm, 27-48 in.lbf}
4. Inspect the following harness for open or short circuit (Continuity check).
Open circuit
- If there is no continuity, the circuit is open.Repair or replace the harness.
- PSP switch terminal and PCM terminal 31
