Engine Controls - MIL ON/DTC's P2404/P0446 Stored: Overview
TSB: 01-003/072002 - 2004 MPV - MIL ILLUMINATION WITH DTCS P2404 / P0446
NOTE:
This bulletin replaces 01-019/04. Please update your records accordingly.
BULLETIN NOTE
This bulletin supersedes the previous bulletin 01-019/04, issued on 05/12/04. The APPLICABLE MODEL(S)/VINS, CALIBRATION, REPAIR PROCEDURE and WARRANTY INFORMATION has been revised.
APPLICABLE MODEL(S)/VINS
2002 - 2004 MPV
DESCRIPTION
Some vehicles may have a Malfunction Indictor Light (MIL) illuminated with the following DTCs stored in the Powertrain Control Module (PCM) memory.
^ DTC P2404
^ DTC P0446
^ DTC P2404 & P0446
Depending on the VIN and DTCs stored in memory, installation of a LIQUID PURGE BOX KIT and/or PCM REPROGRAMMING will be necessary to repair the vehicle.
Customers having this concern should have their vehicle repaired using the following procedure.
REPAIR PROCEDURE

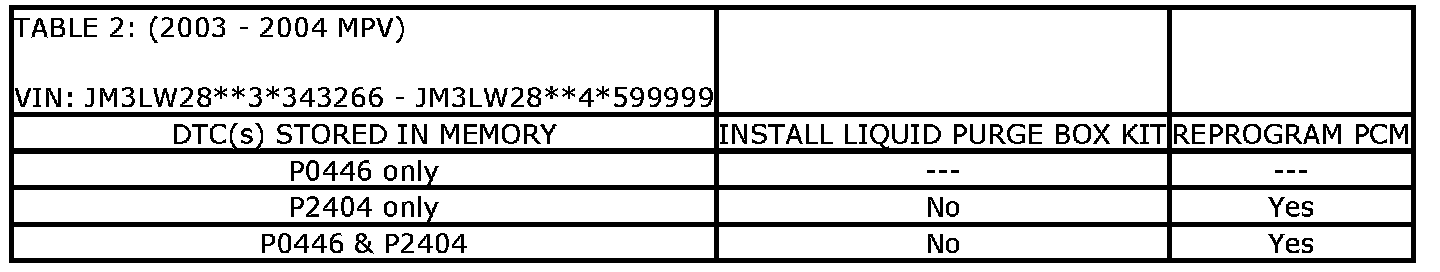

1. According to the VIN of the subject vehicle, refer to TABLE 1 or TABLE 2.
2. Based on the DTC(s) stored in PCM memory, determined the necessary repair(s).
3. Proceed to either LIQUID PURGE BOX KIT INSTALLATION or PCM REPROGRAMMING section of this Service Bulletin.
NOTE:
If it is necessary to perform both repairs (Liquid Purge Box Kit installation & PCM Reprogramming) on the same vehicle, be sure to install the Liquid Purge Box Kit BEFORE reprogramming the PCM.
CALIBRATION INFORMATION
NOTE:
The PCM Calibration Part Numbers listed above are provided for PCM reprogramming purposes only.
These are not necessarily the same Mazda part numbers used to order an actual PCM through the Mazda Parts System. It is not necessary to order a PCM as part of this repair procedure.
PART(S) INFORMATION

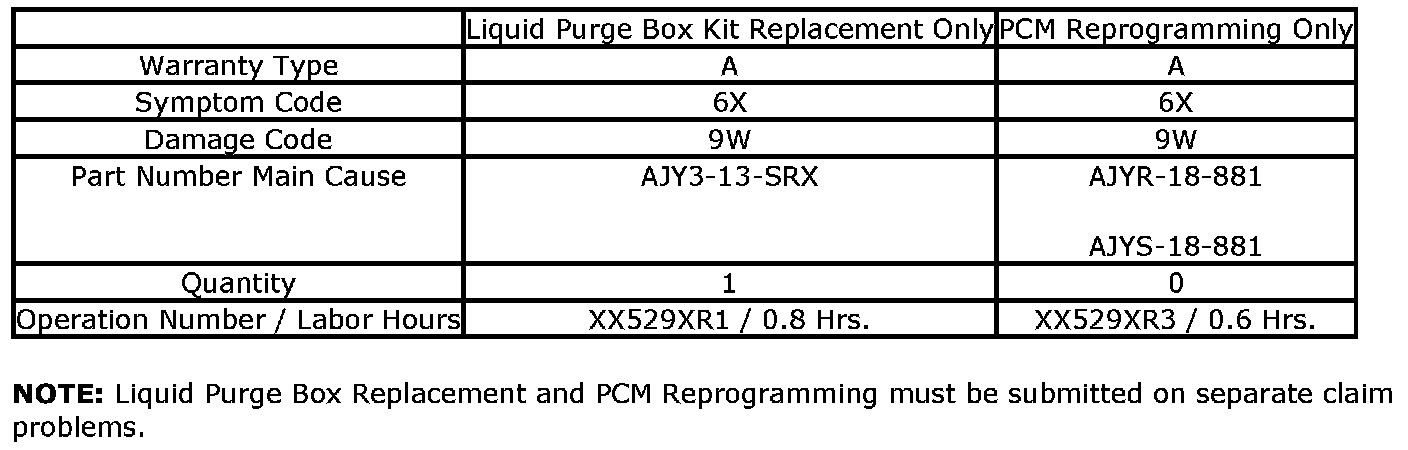

WARRANTY INFORMATION
NOTE:
^ This warranty information applies only to verified customer complaints on vehicles eligible for warranty repair. Refer to the SRT microfiche for warranty term information.
^ Additional diagnostic time cannot be claimed for this repair.
