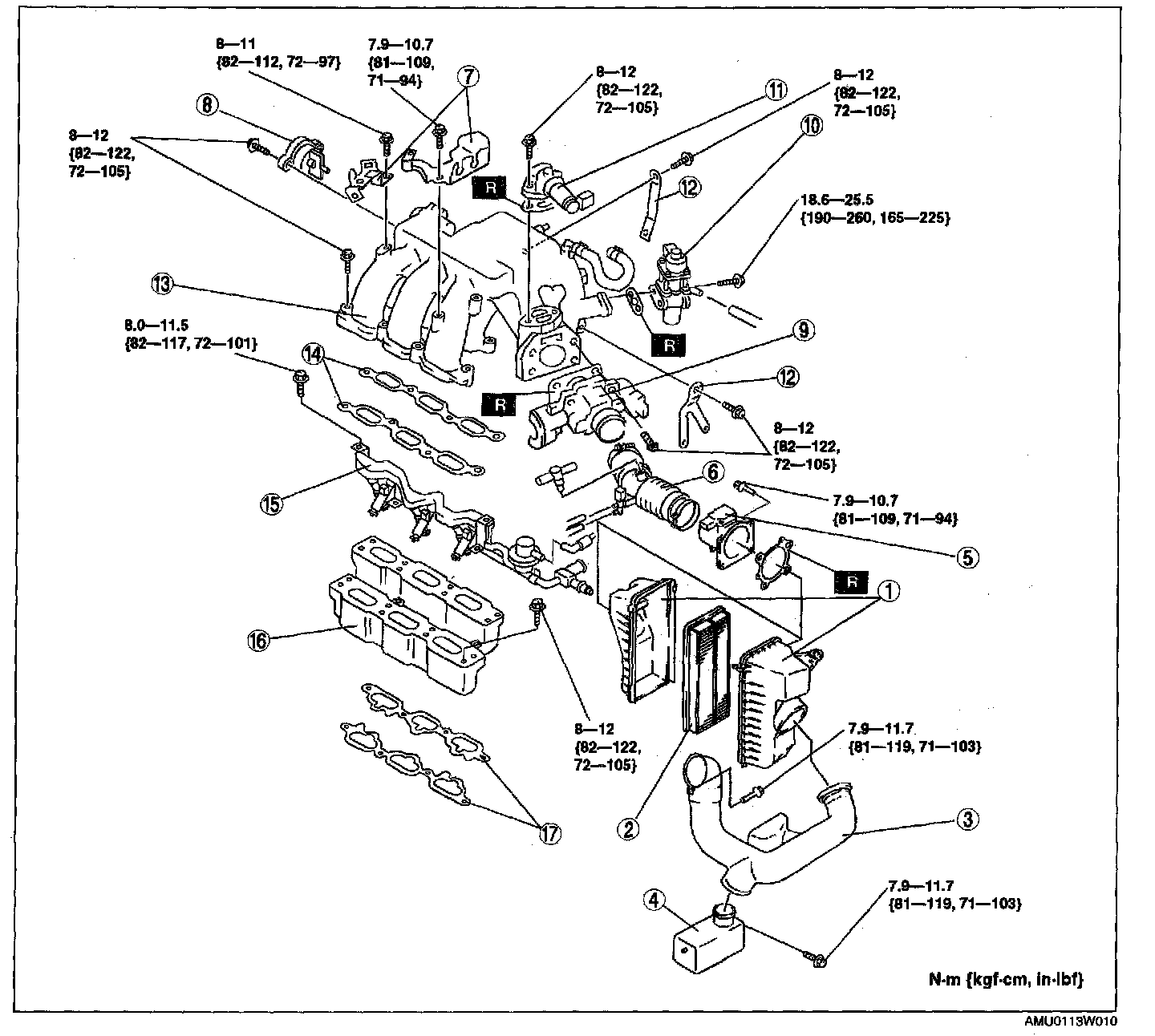

Exploded Views

1. Air cleaner
2. Air cleaner element
3. Fresh-air duct (See Fresh-air Duct Removal Note)
4. Resonance chamber (See Resonance Chamber Removal Note)
5. Mass air flow sensor
6. Air hose
7. Accelerator cable bracket
8. IMCC actuator
9. Throttle body
10. EGR valve (See EGR VALVE REMOVAL/INSTALLATION)
11. IAC valve
12. Bracket
13. Dynamic chamber (See Dynamic Chamber Installation Note)
14. Dynamic chamber gasket
15. Fuel distributor (See Fuel Distributor Removal Note)
16. Intake manifold (See Intake Manifold Installation Note)
17. Intake manifold gasket
