IGT Control Signal

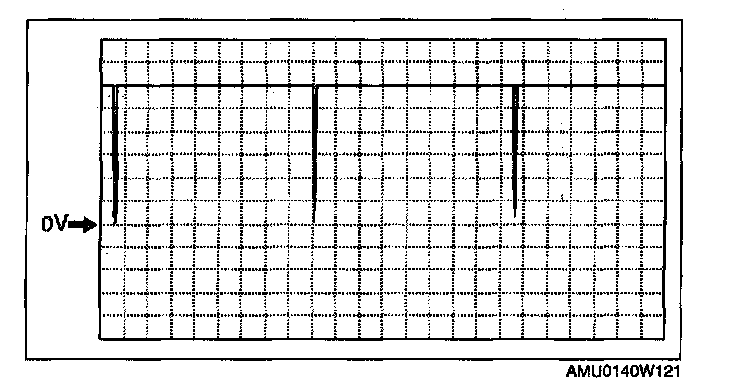

Inspection Using An Oscilloscope (Reference)IGT signal -
PCM terminal
-
IGT1 26 (+) - 103 (-)
-
IGT2 1 (+) - 103 (-)
-
IGT3 52 (+) - 103 (-)
-
IGT4 27 (+) - 103 (-)
-
IGT5 78 (+) - 103 (-)
-
IGT6 82 (+) - 103 (-)
-
Oscilloscope setting:
2 V/DIV (Y),
10 ms/DIV (X), DC range
-
Vehicle condition: idle after warm up
