PROCEDURE 3: QUICK RE-FLASH:

1. Turn the screen saver "OFF" (See Steps 11-13 under "Procedure 1: Installing Flashing Software").

2. Open the folder on the desktop called "reflash".

3. Open the program "Flash32r.exe".

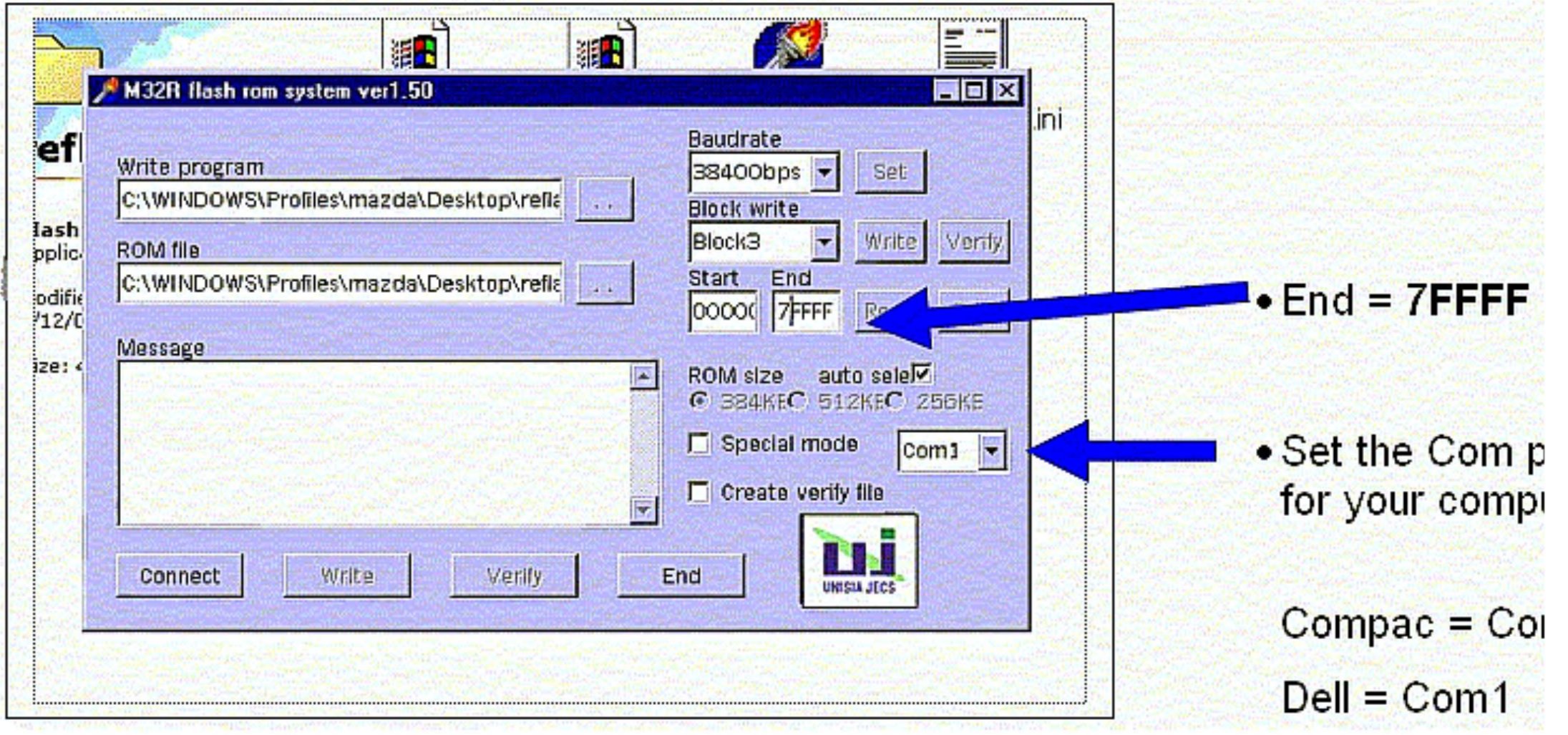

4. Verify the screen settings shown.

5. Connect the two (2) Reflash Cube connectors to the Transmission Control Module (TCM).

6. Switch the Reflash Cube "ON", wait 1-second, then select "Connect" within 10-seconds.

7. Wait for the message "Writing program forwarding completion"

8. Select "Write", and wait for the message "Flash-ROM writing completion".

9. Select "Verify", and wait for the message "Verify completion".

10. Turn the Reflash Cube "OFF".

11. Repeat Steps 6 - 10 for additional TCM's.

NOTE:
If the procedure is interrupted, turn the Reflash Cube "OFF" and start again from Step 6.

12. Select "End".

13. Disconnect the TCM.

14. Using a permanent marker, write the letter "N" and the "Date of Reflash" near the part number found on the TCM to identify the new software calibration level.

15. Turn the screen saver back "ON" (See Steps 26 - 28 under "Procedure 2: First Time TCM ReFlash").

16. The TCM Reflash is now complete.

17. Return to the Service Bulletin "REPAIR PROCEDURE" section and complete Steps 8 - 16 before returning the vehicle to the customer.
