Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2004
>>
MPV V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Body and Frame
>>
Power Sliding Door Module
>>
Locations
>>
Component Locations
Component Locations

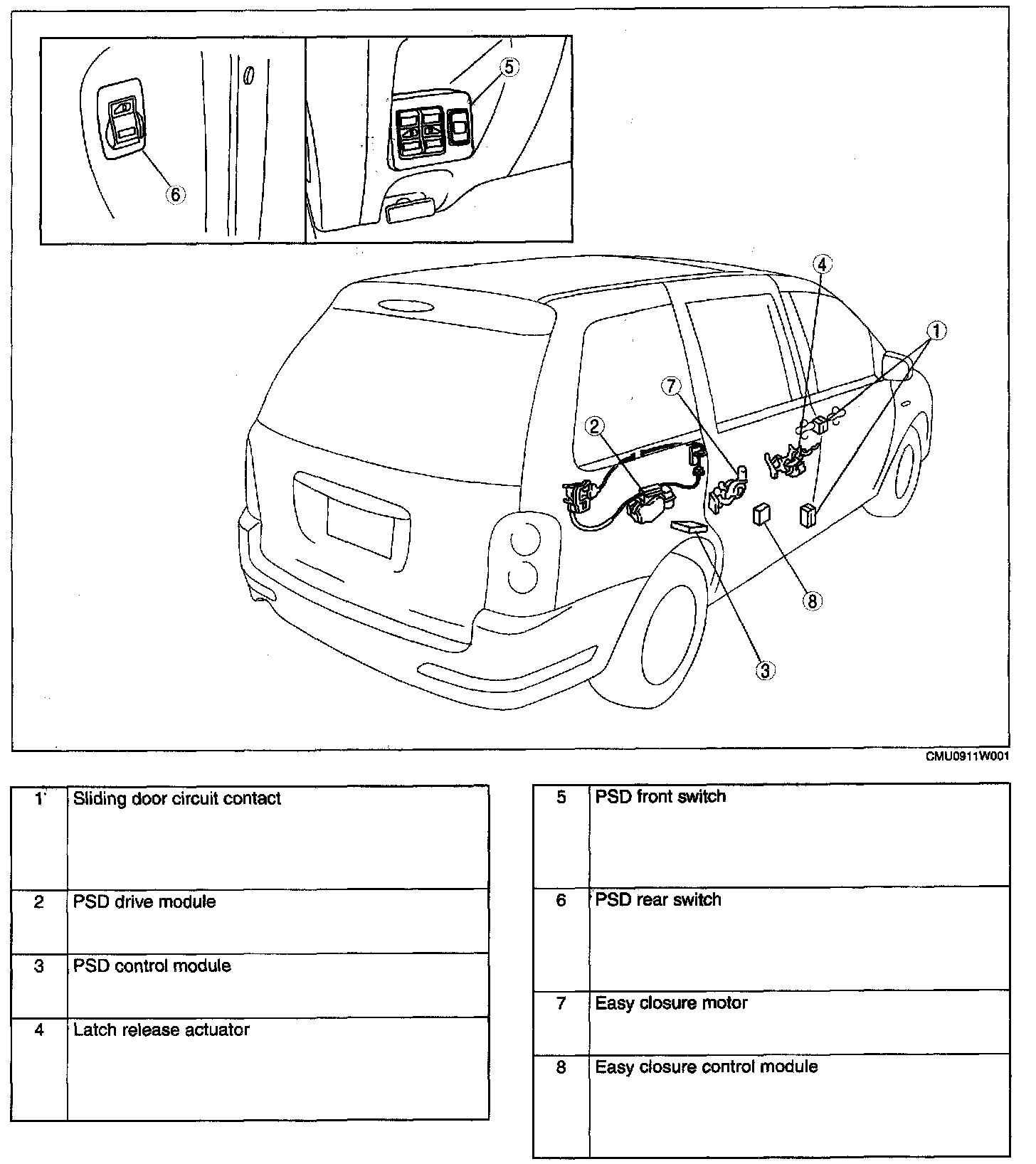

PSD System Location Index:
