Daytime Running Lamp Control Unit: Testing and Inspection

DRL CONTROL MODULE INSPECTION

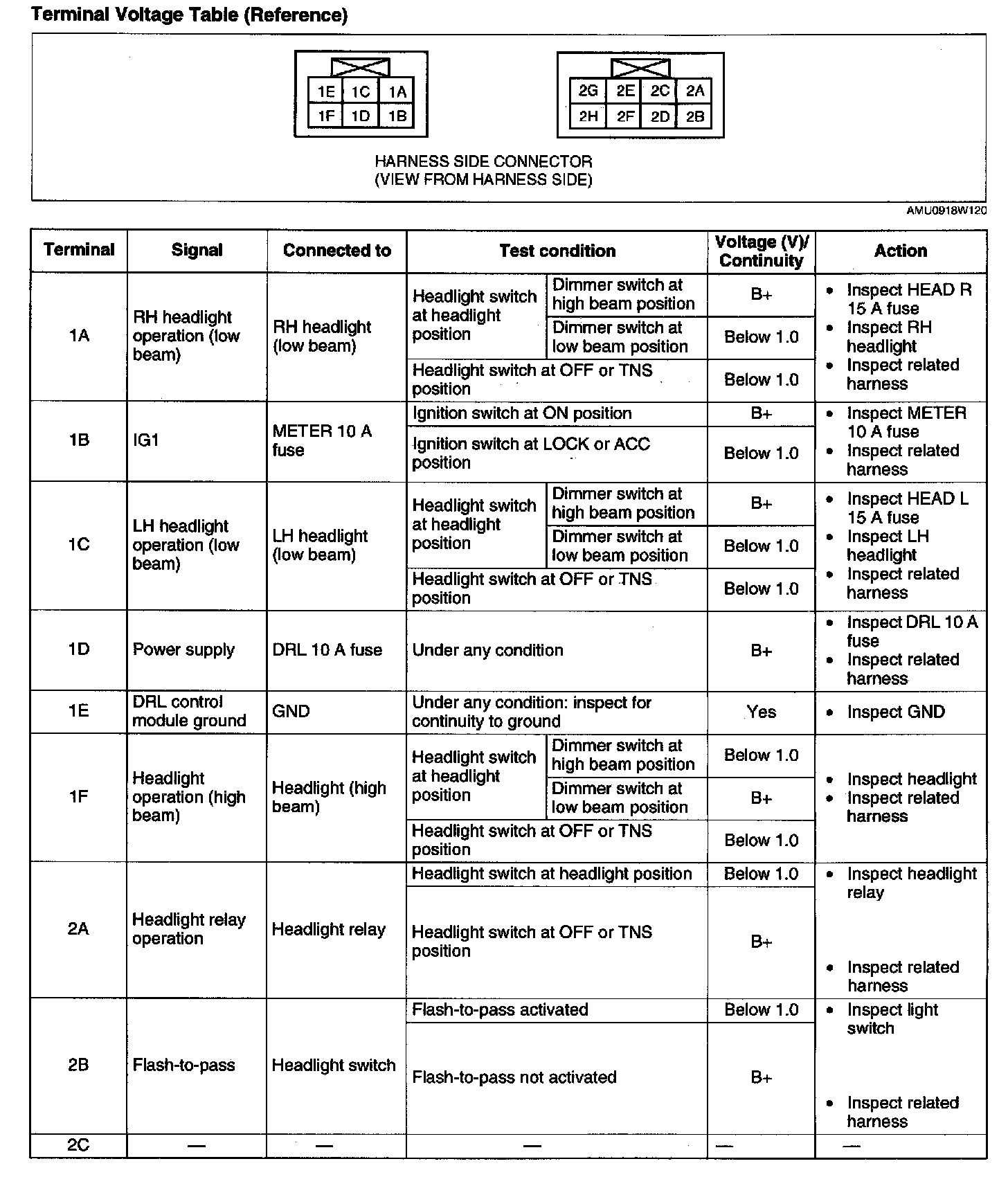

Terminal Voltage Table (Reference) - Terminal (1A - 2C):

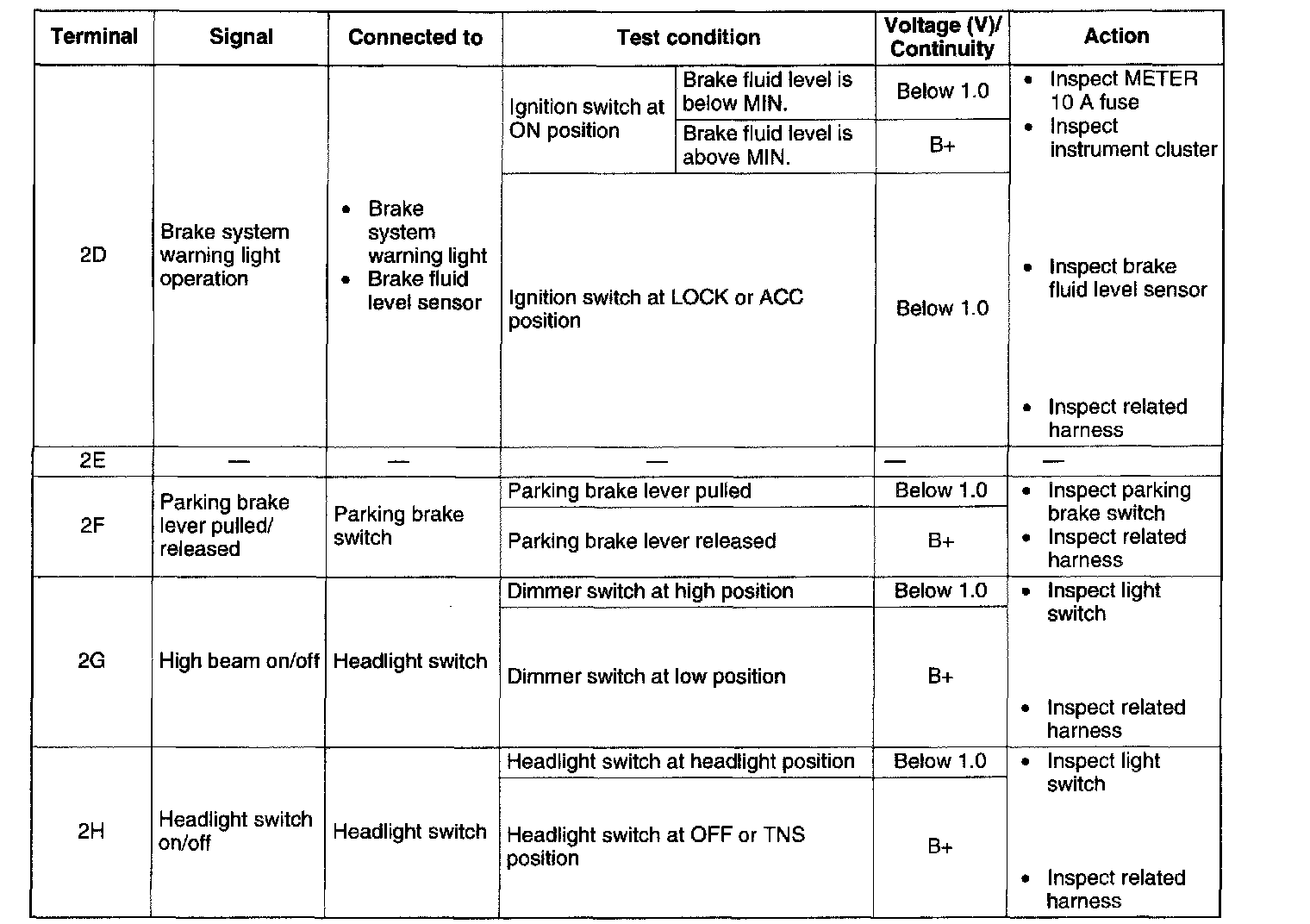

Terminal Voltage Table (Reference) - Terminal (2D - 2H):

1. Measure the voltage at the DRL control module terminals as indicated.
2. Disconnect the DRL control module connector before inspecting for continuity at terminal 1E.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the DRL control module.
