Air Bag Control Module
>>
Locations
>>
Component Locations
Component Locations

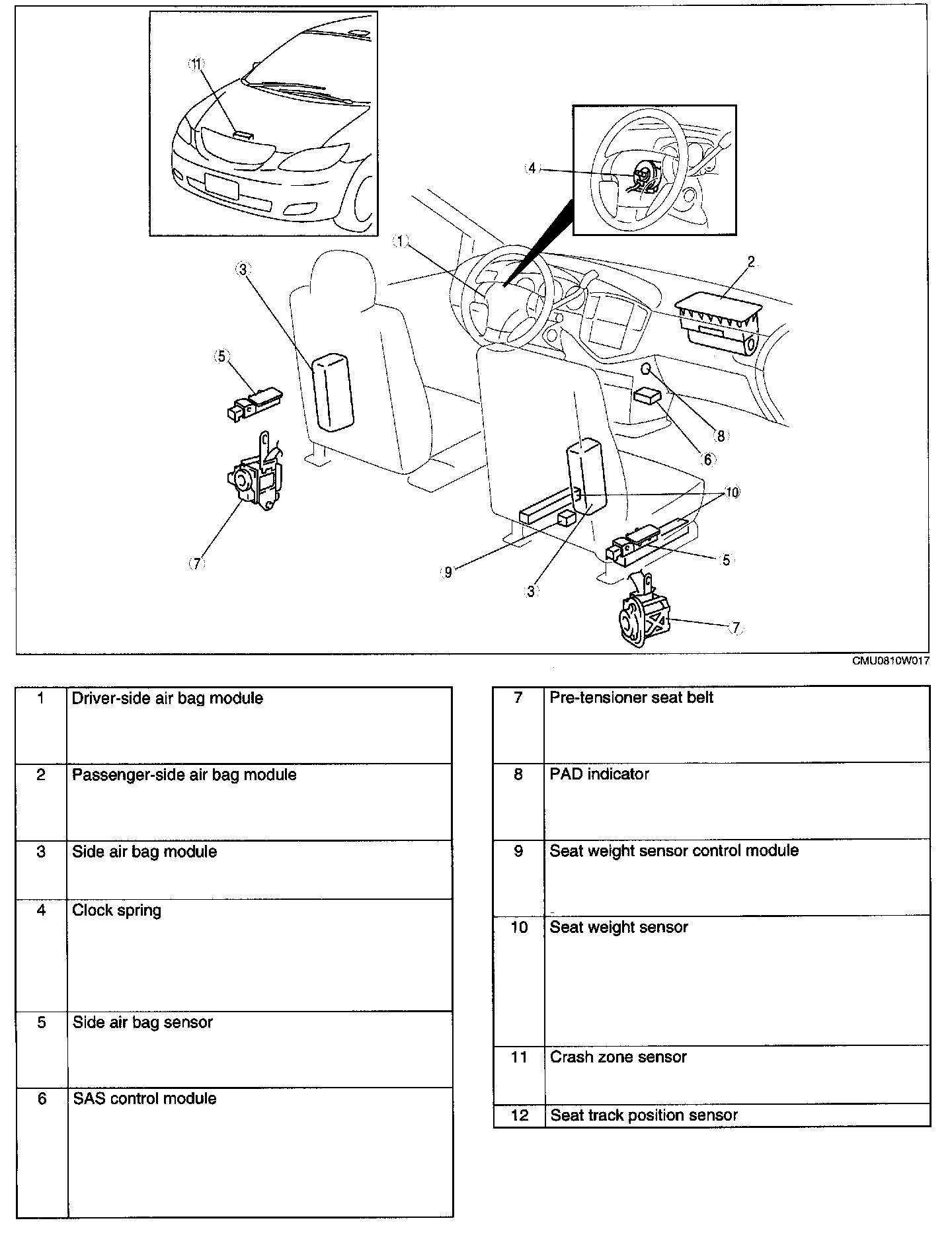

Air Bag System Location Index [Standard Deployment Control System]:
Air Bag System Location Index [Two-Step Deployment Control System]:
