Driver-Side Air Bag Module
>>
Two-Step Deployment Control System
Two-Step Deployment Control System

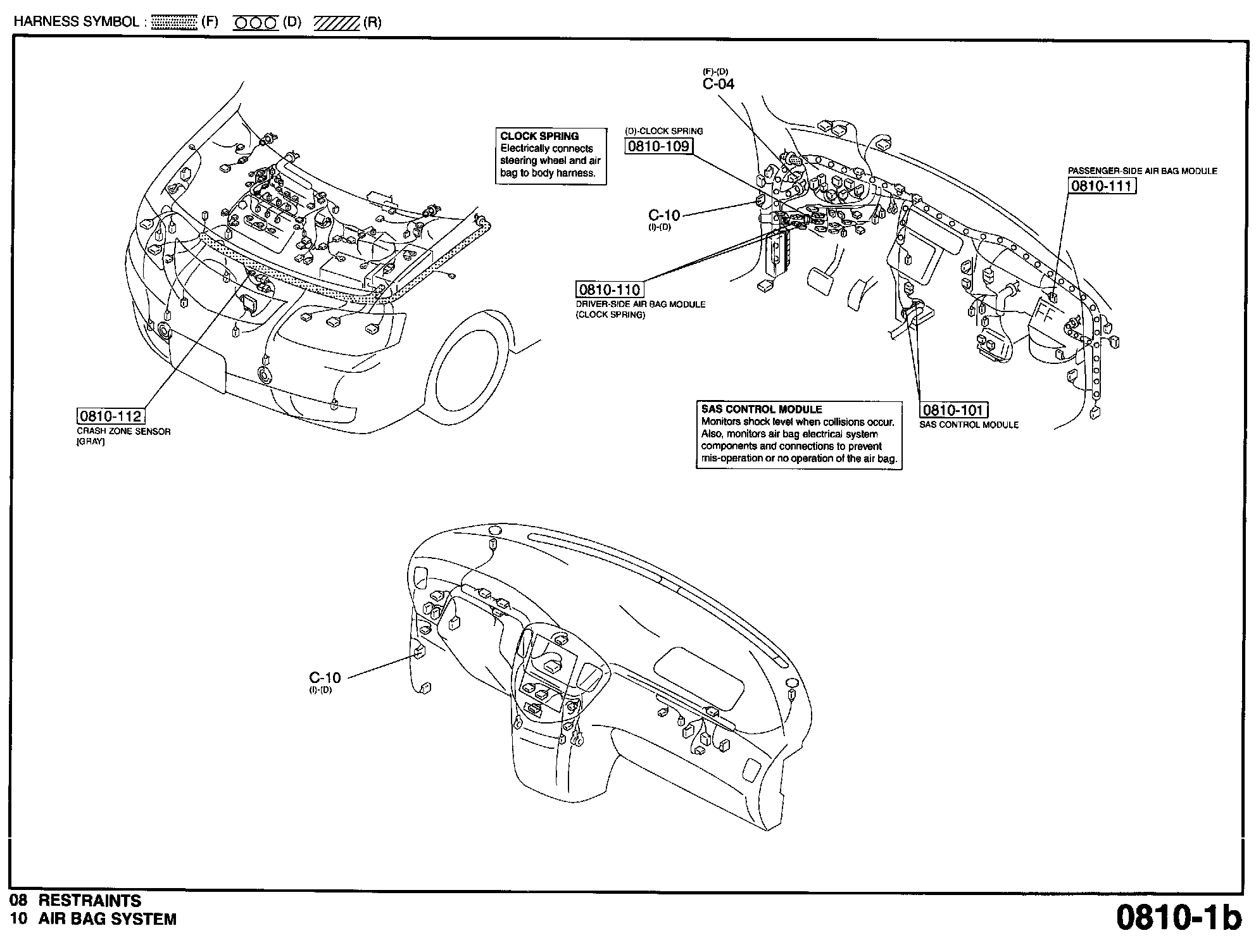

Routing View 0810-1b:
