Passenger-Side Air Bag Module [Two-Step Deployment Control System]

PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

WARNING: Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. (See SERVICE WARNINGS.) (See SERVICE CAUTIONS.)

1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for 1 min or more.
3. Remove the glove compartment.

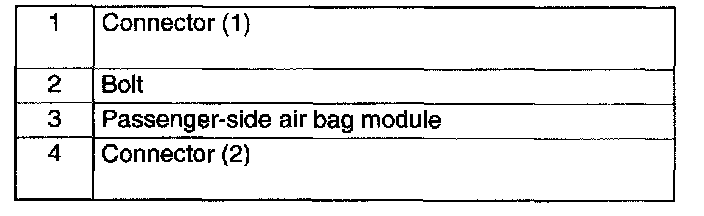

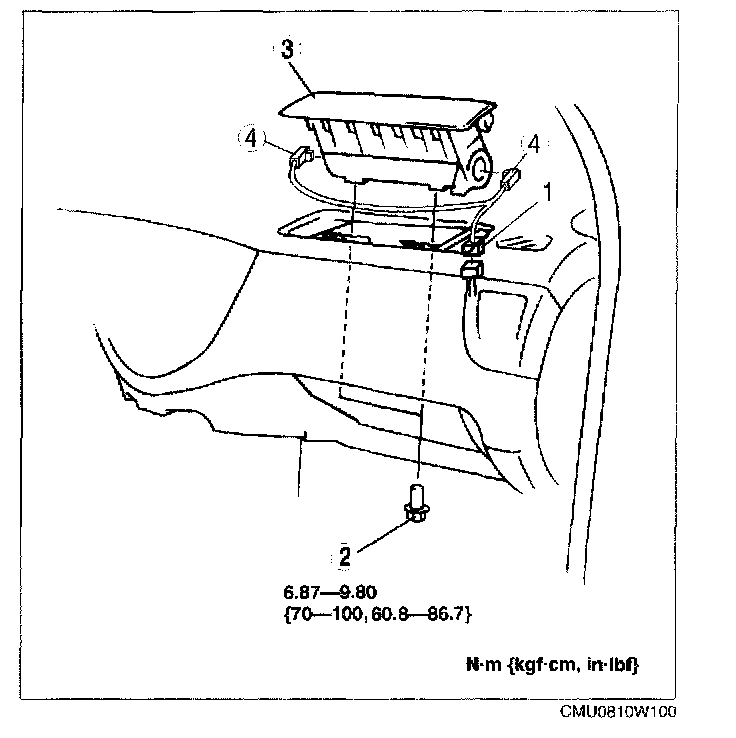

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light illuminates for approx. 6 s and then goes off
- If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic function. (See FOREWORD [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Connector (2) Removal Note:

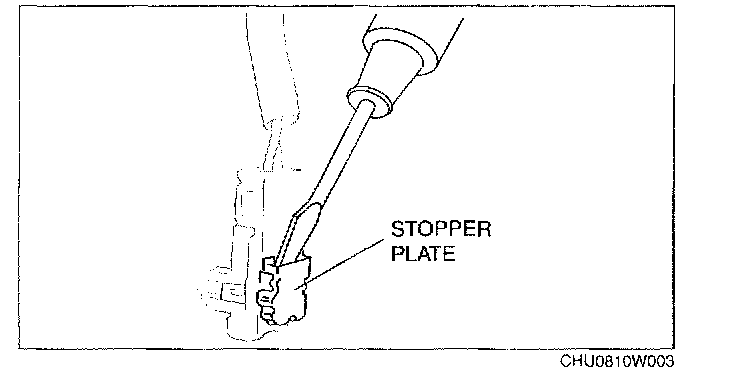

1. Using a flathead screwdriver, pry out the connector stopper plate.
2. Disconnect the connector.

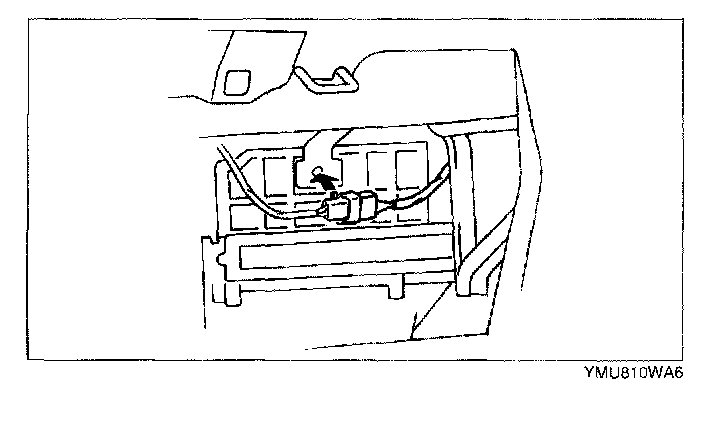

Connector (1) Installation Note:




- Connect the connector, then install it as shown in the figure.
