Home >> Mazda >> 2004 >> MPV V6-3.0L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Neutral Safety Switch >> Locations

Neutral Safety Switch: Locations

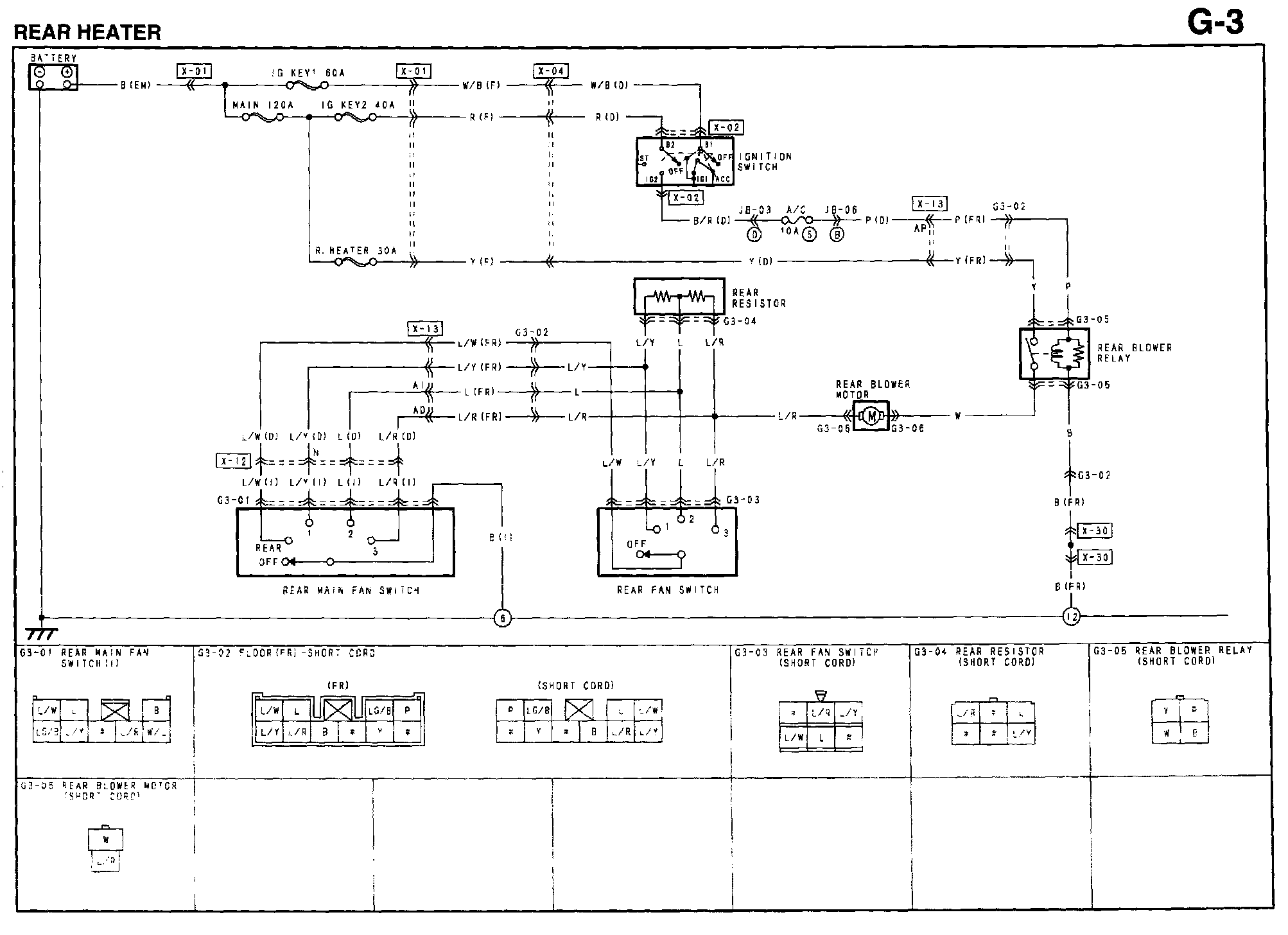

Diagram G-3:
