Procedure 1 - Installing Flashing Software

PROCEDURE 1: INSTALLING FLASHING SOFTWARE:

1. Turn the PC "ON".

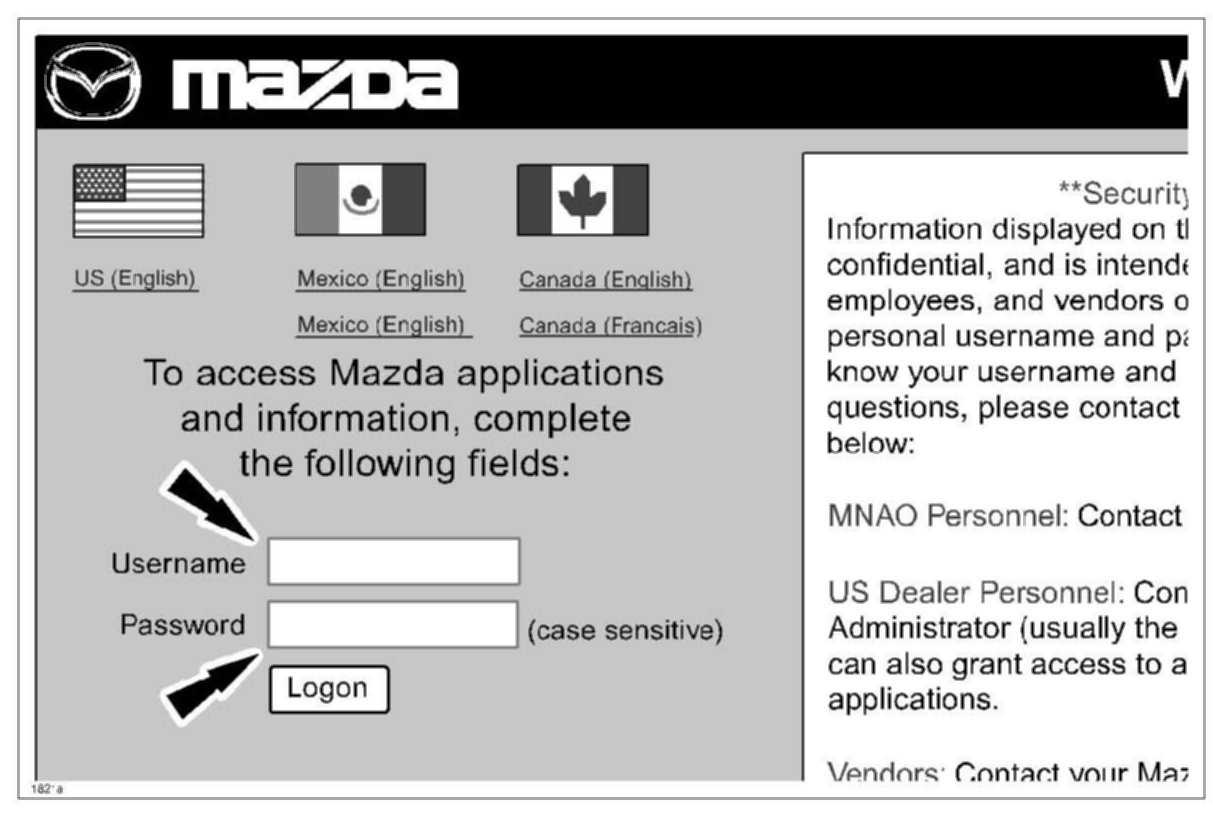

2. From "Web Security Logon (WSL)", enter your "Username" and "Password".

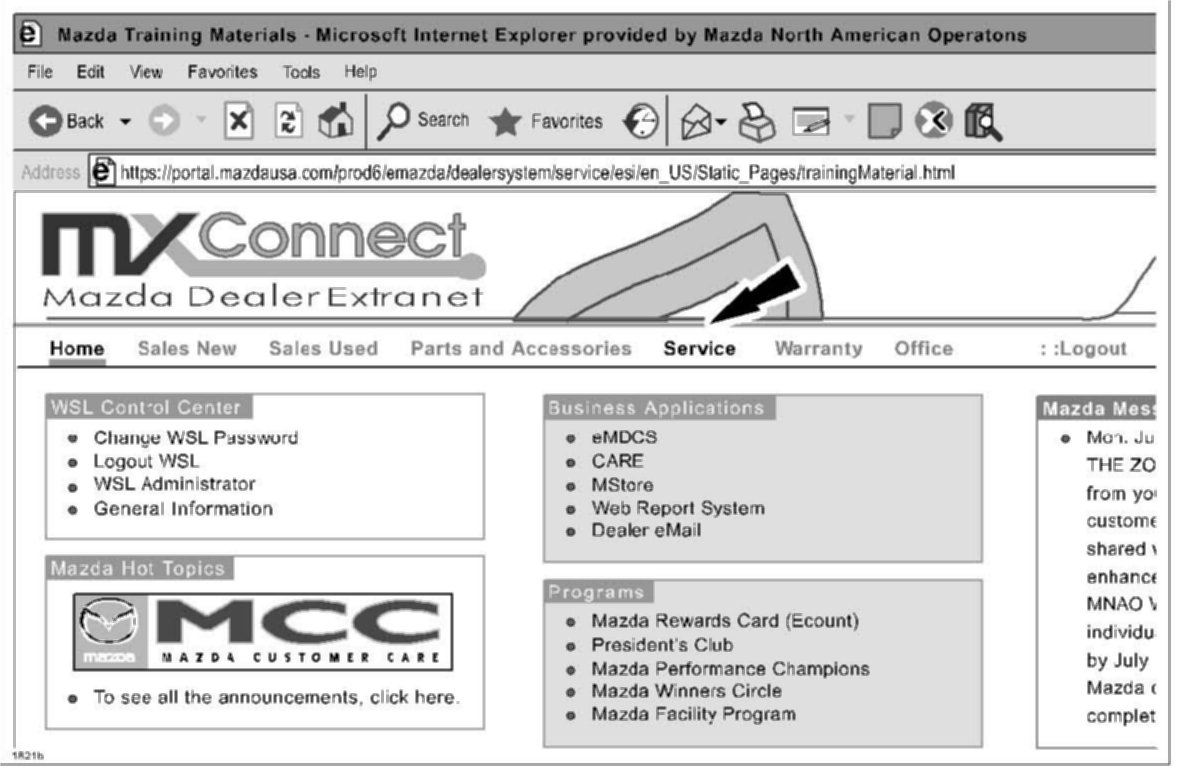

3. Select "Service

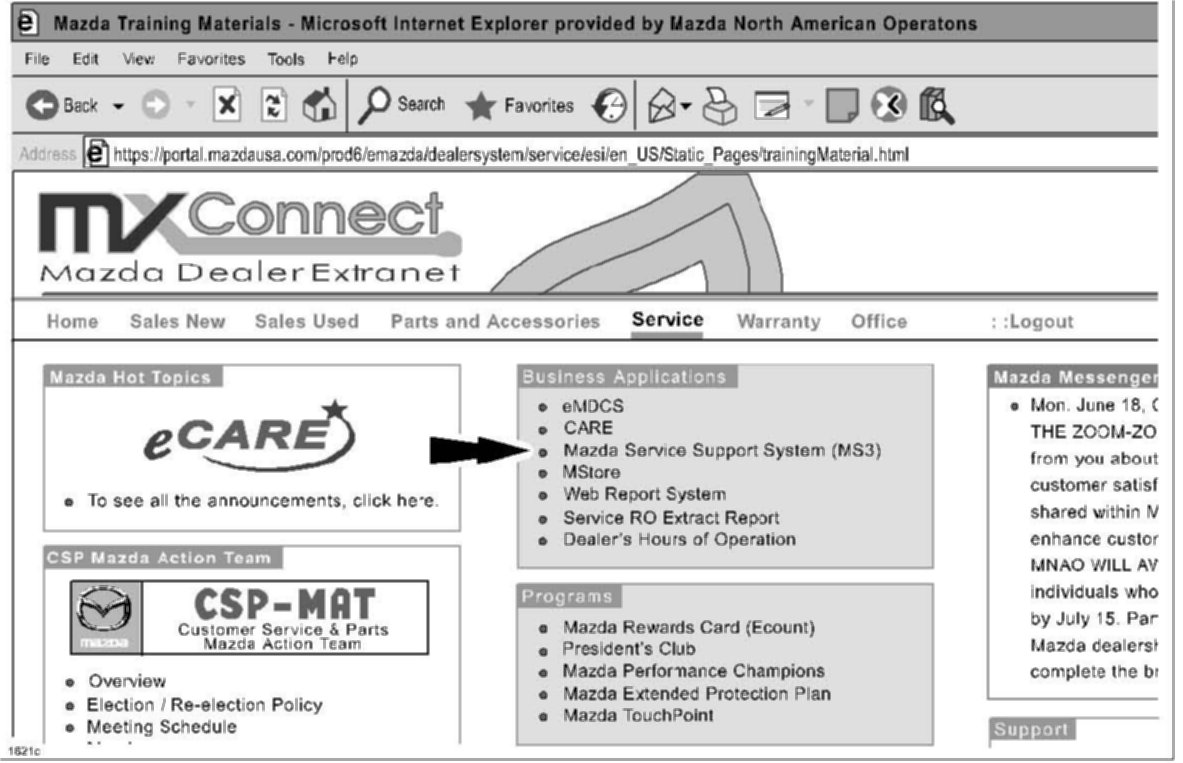

4. Select "Mazda Service Support System (MS3)"

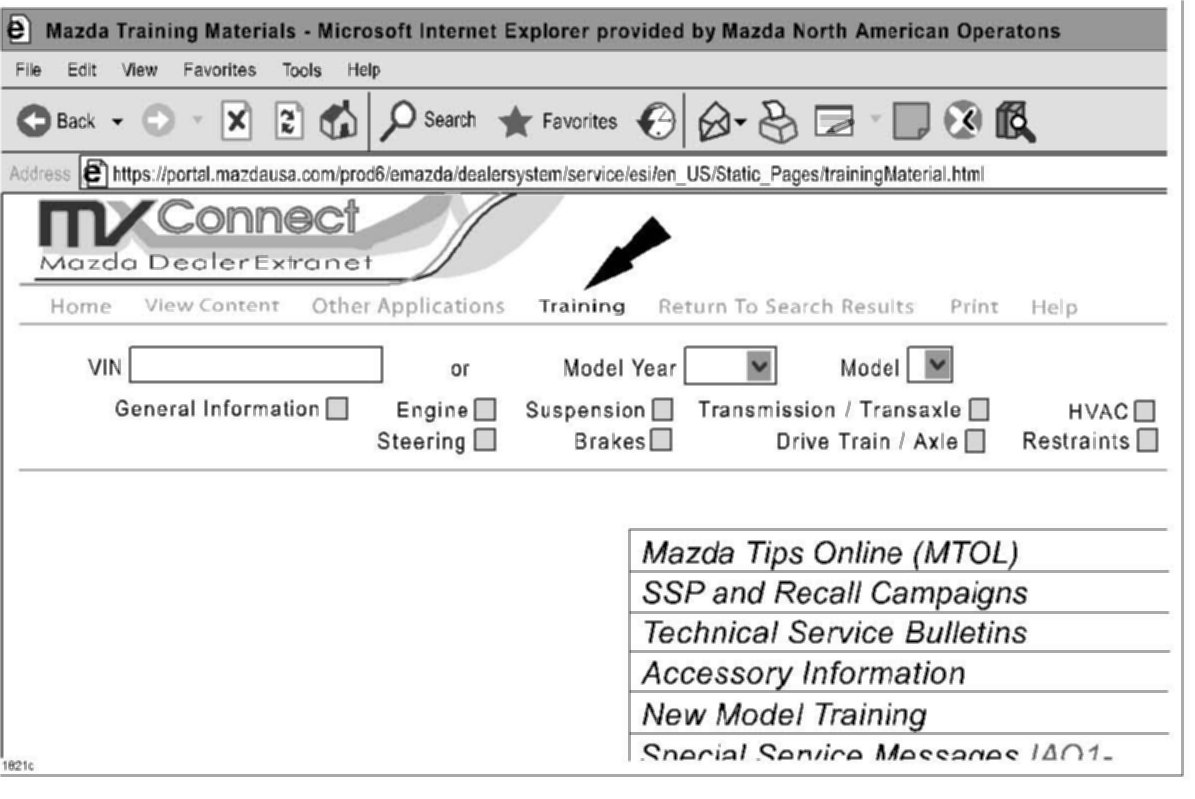

5. Select "Training".

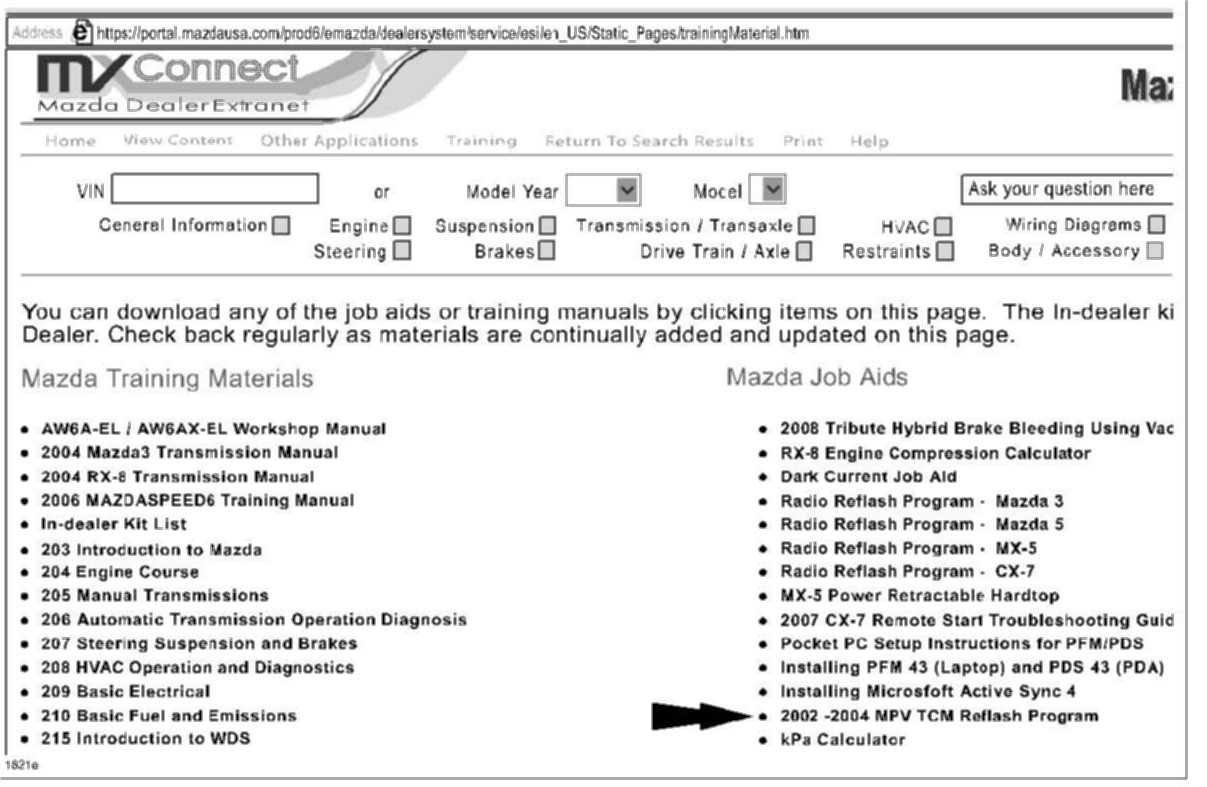

6. Select "2002-2004 MPV TCM Reflash Program".

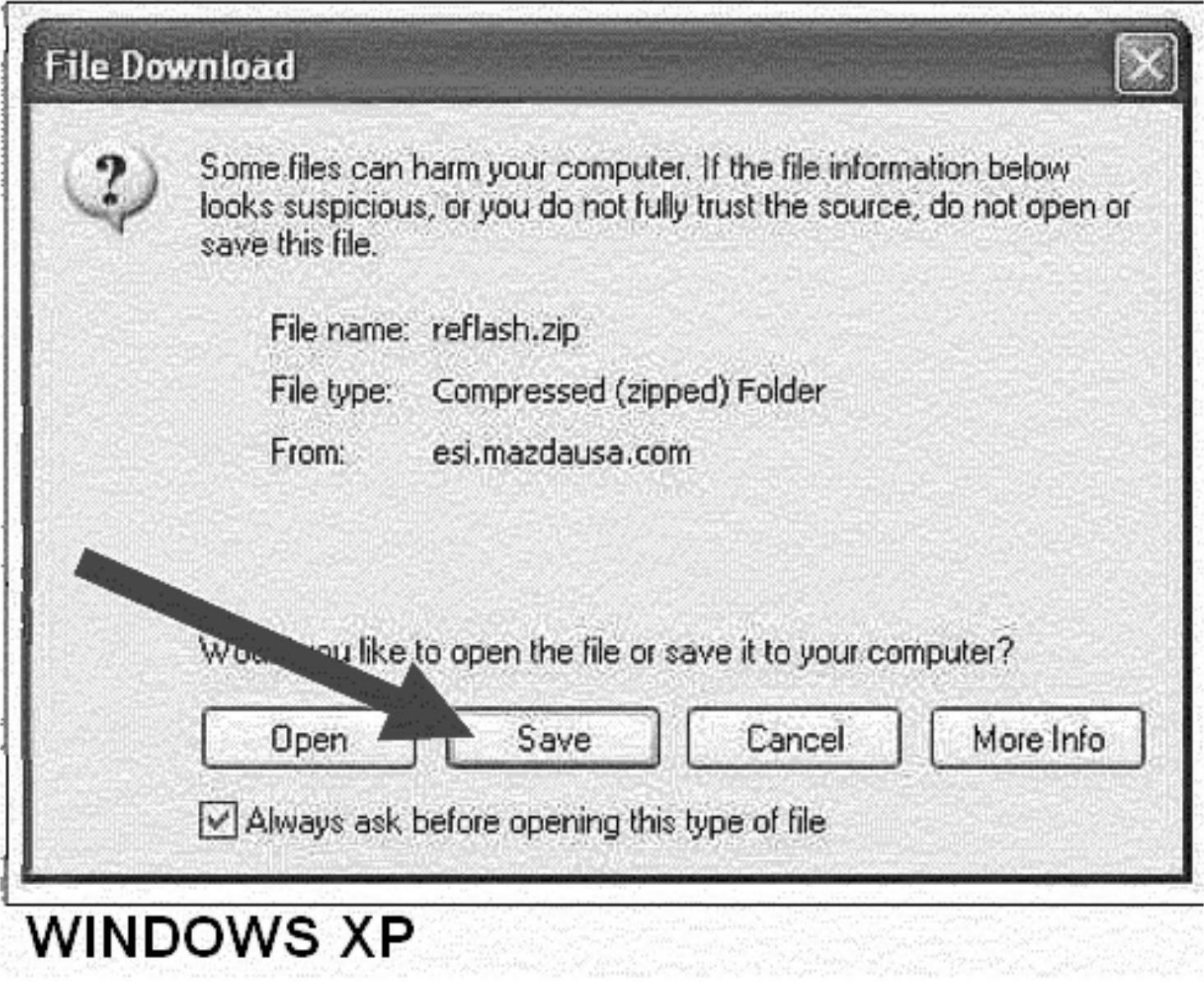

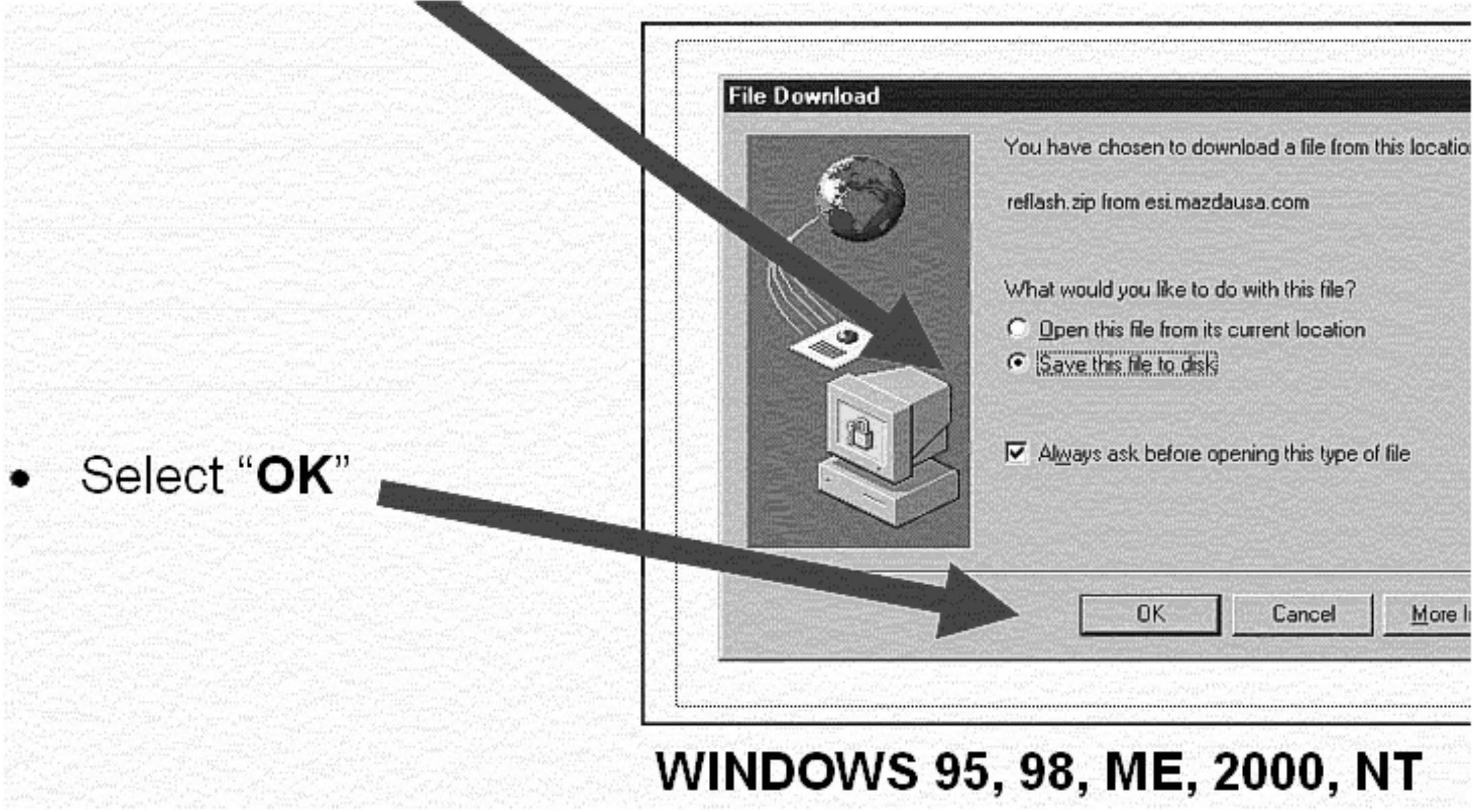

7. Select "Save this file to disc".

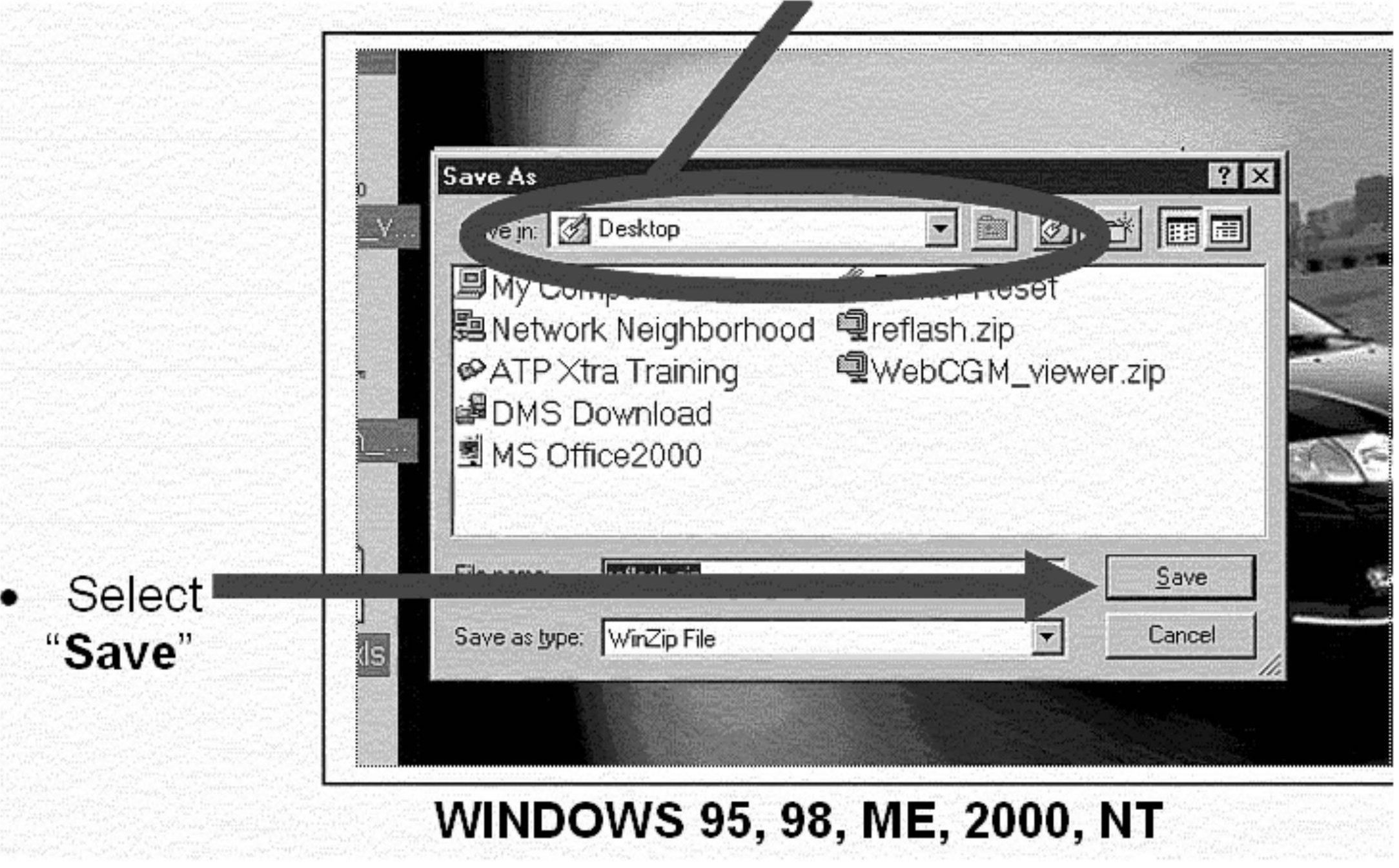

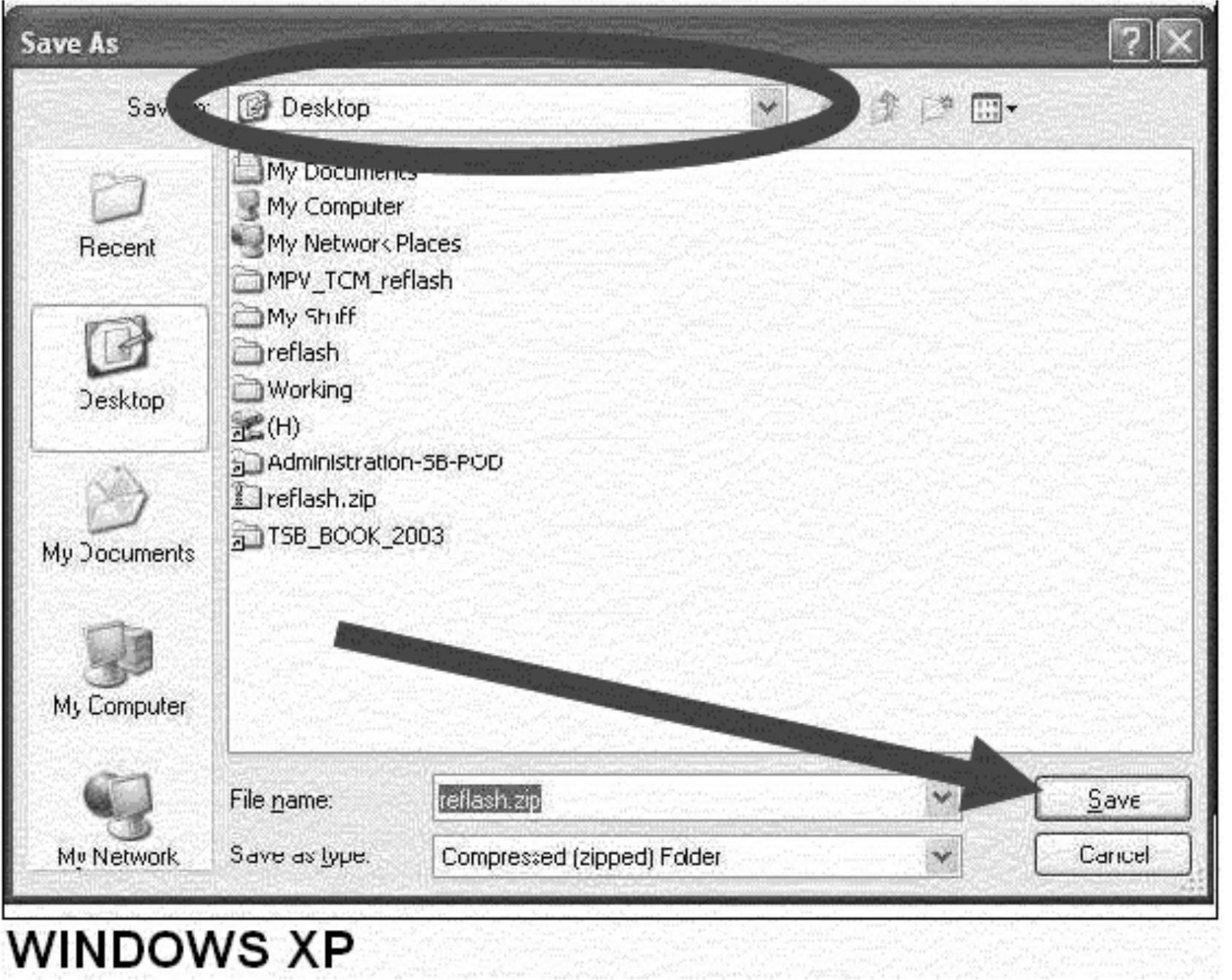

8. Make sure to save to "Desktop".

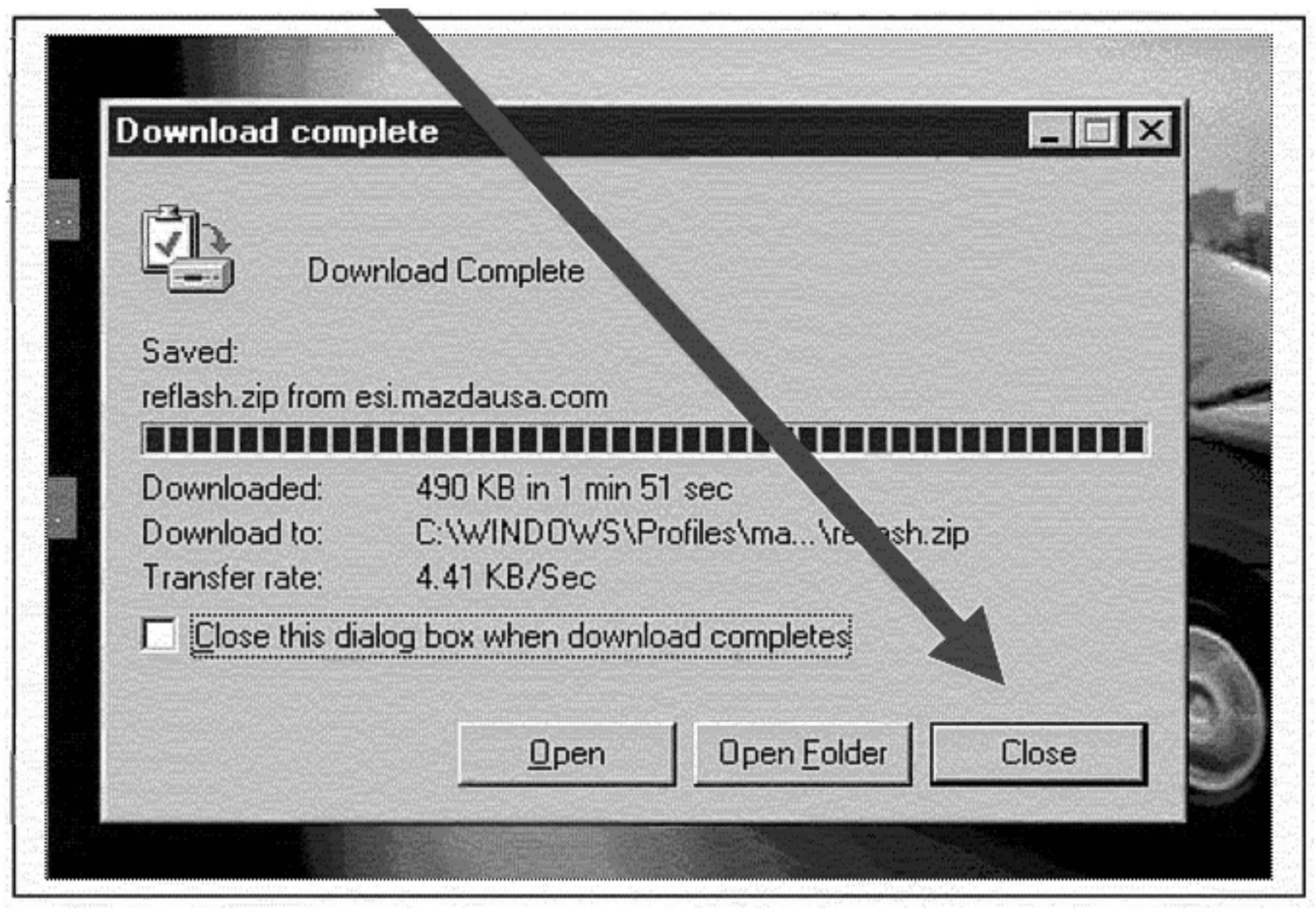

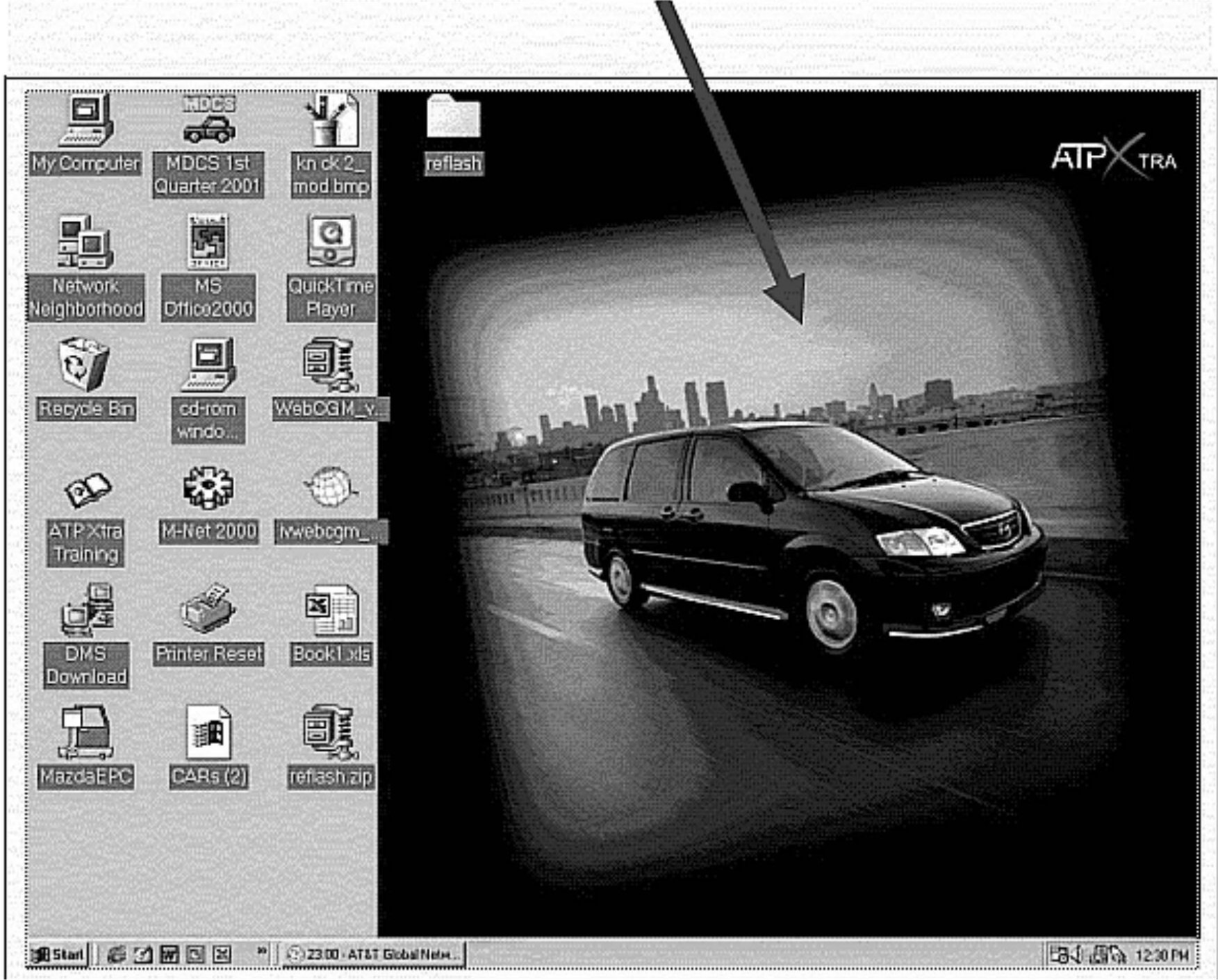

9. Select "Close".

10. IMPORTANT: If you have a phone dialer program or any other programs open, make sure to close them now.

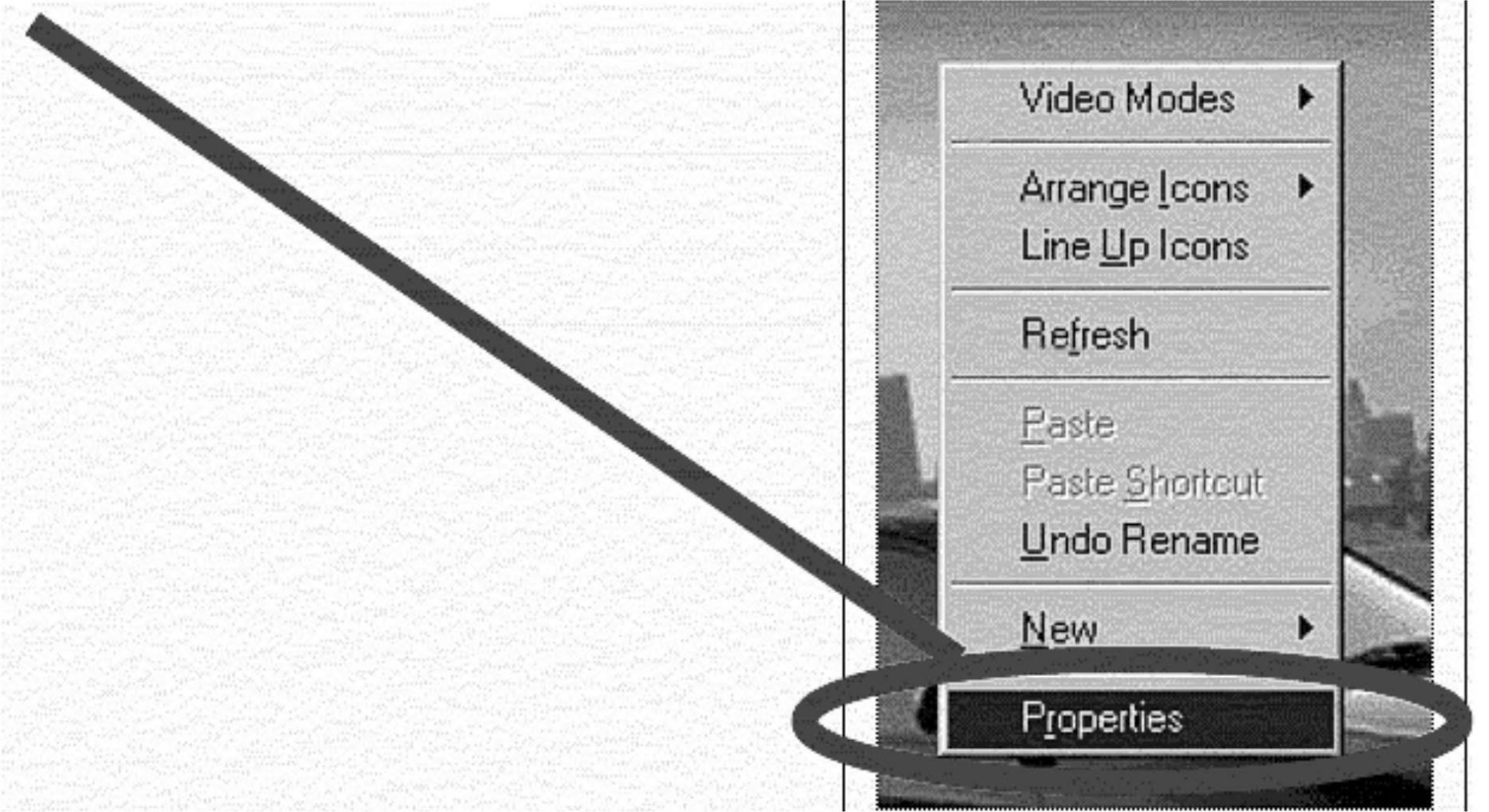

11. Click the "right" mouse button on an open area of the desktop.





12. Select "Properties" from the drop down menu.

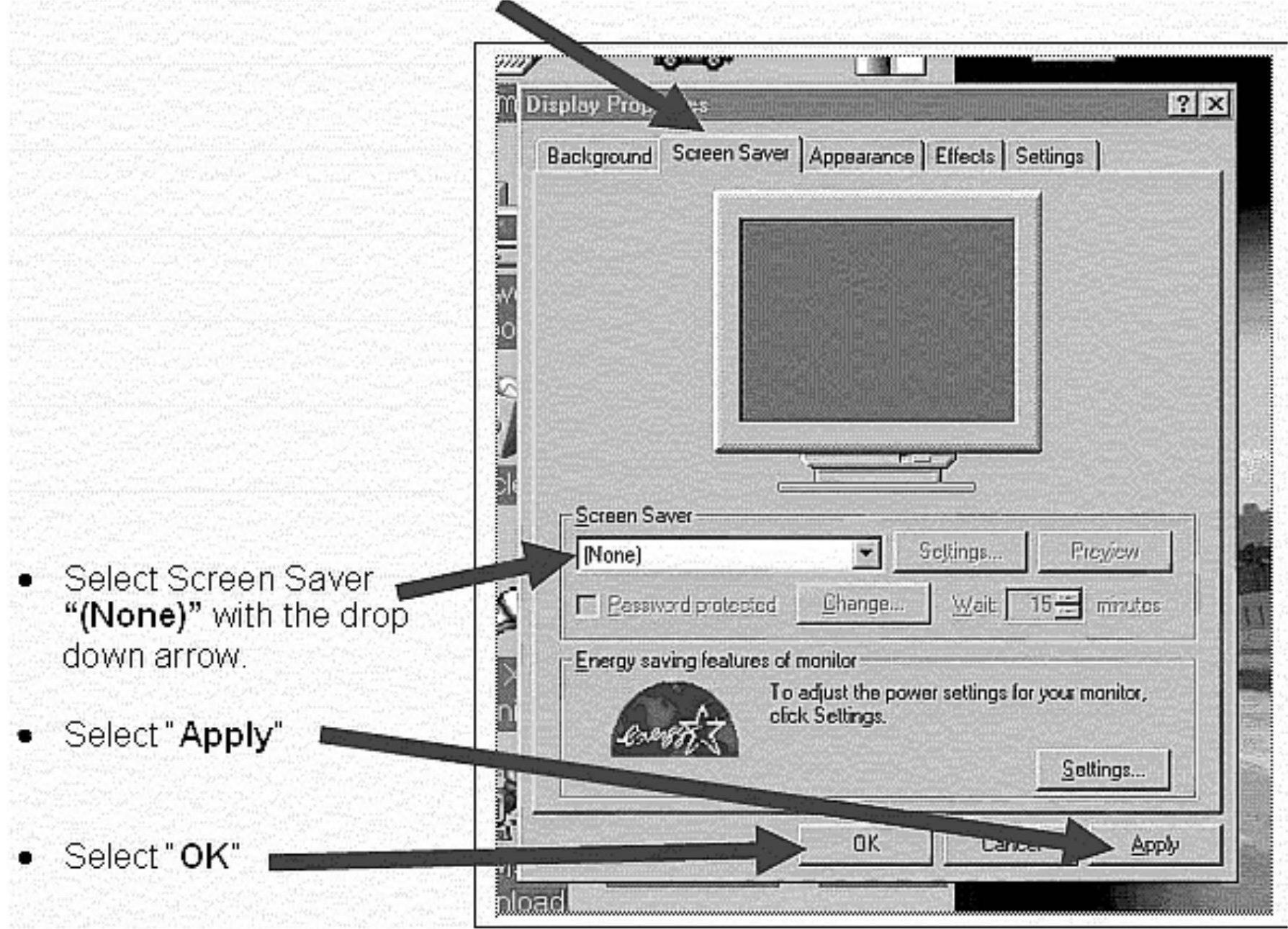

13. Select the "Screen Saver" tab.

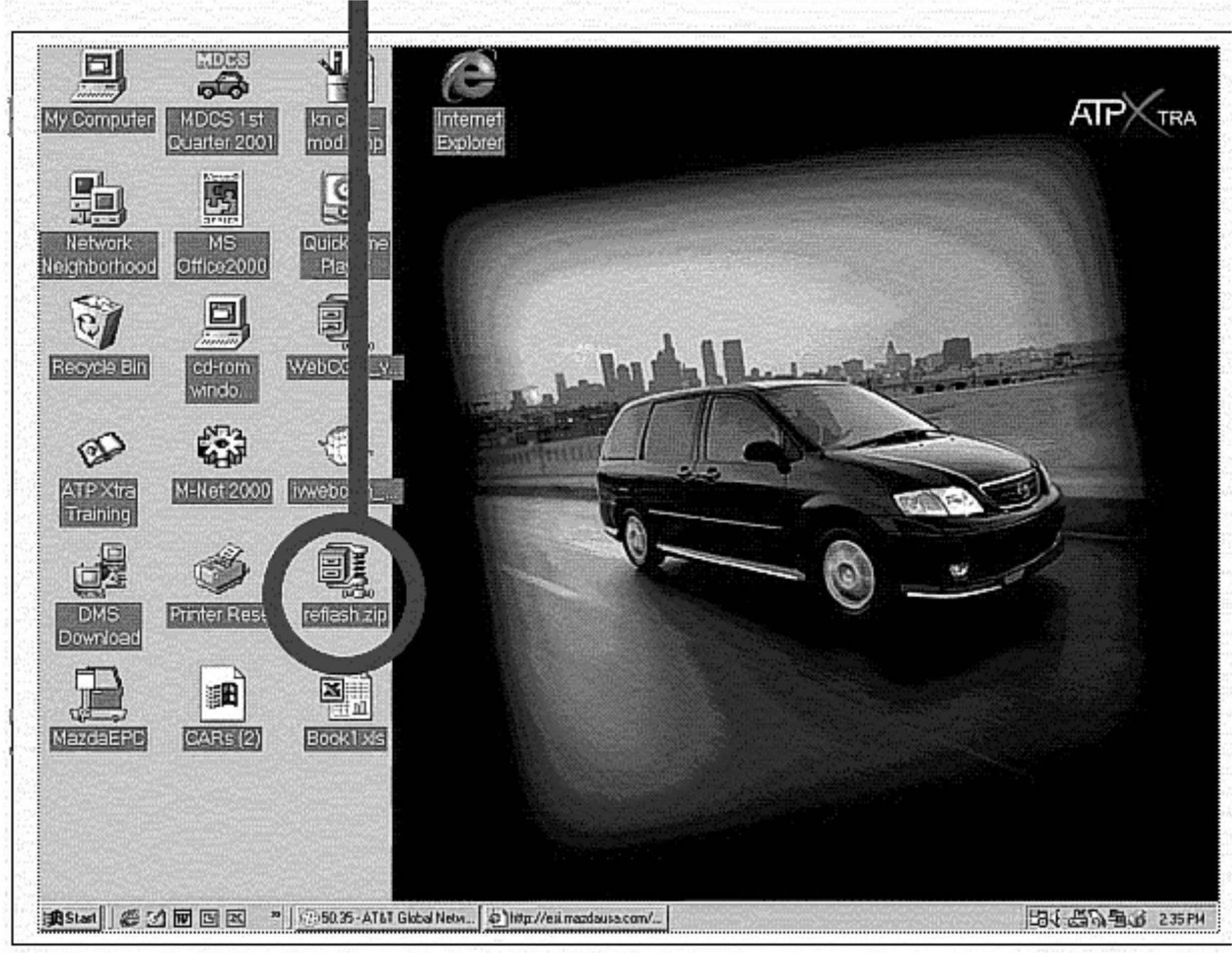

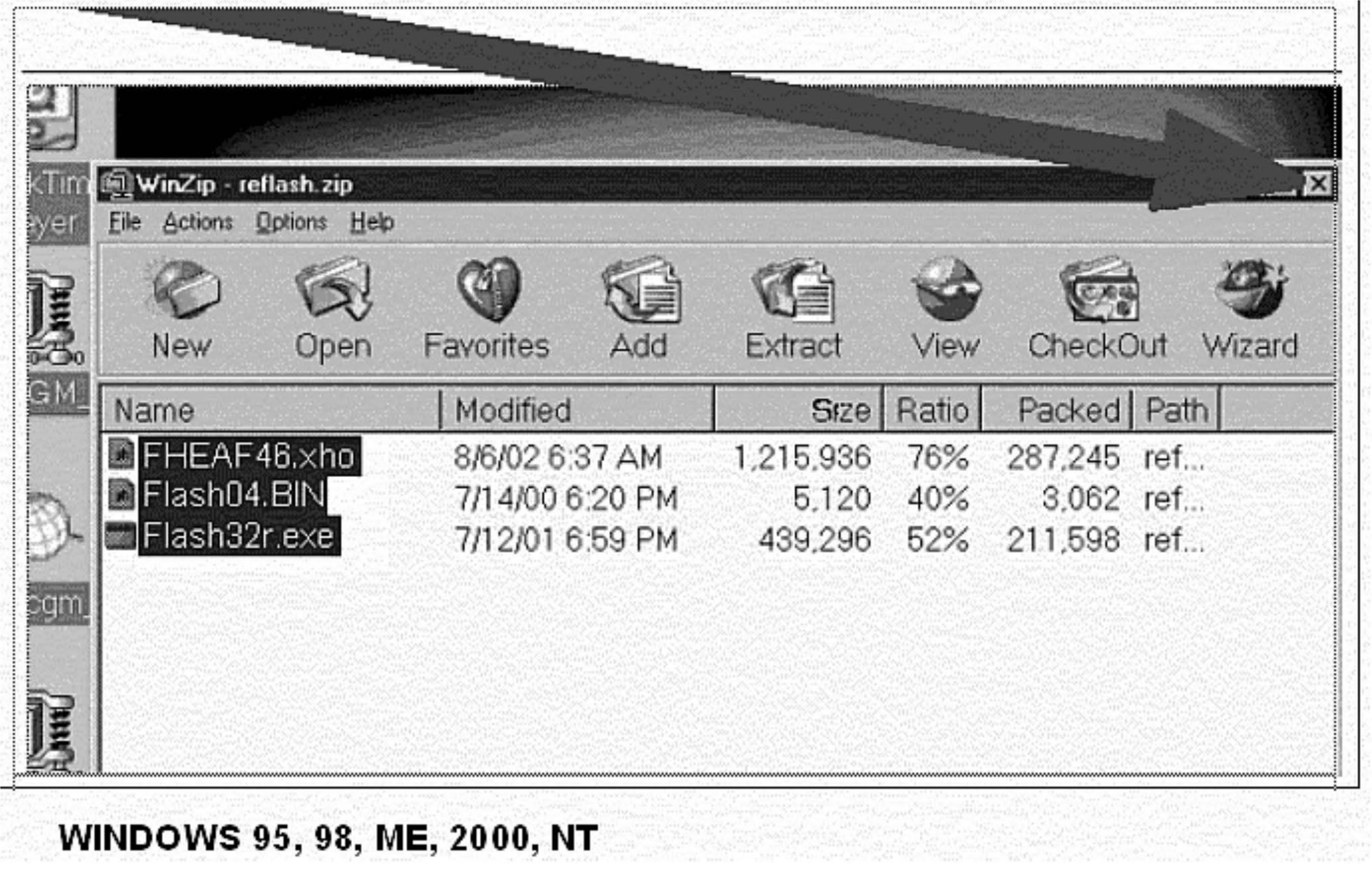

14. Locate the file "reflash.zip" on your desktop and open it.

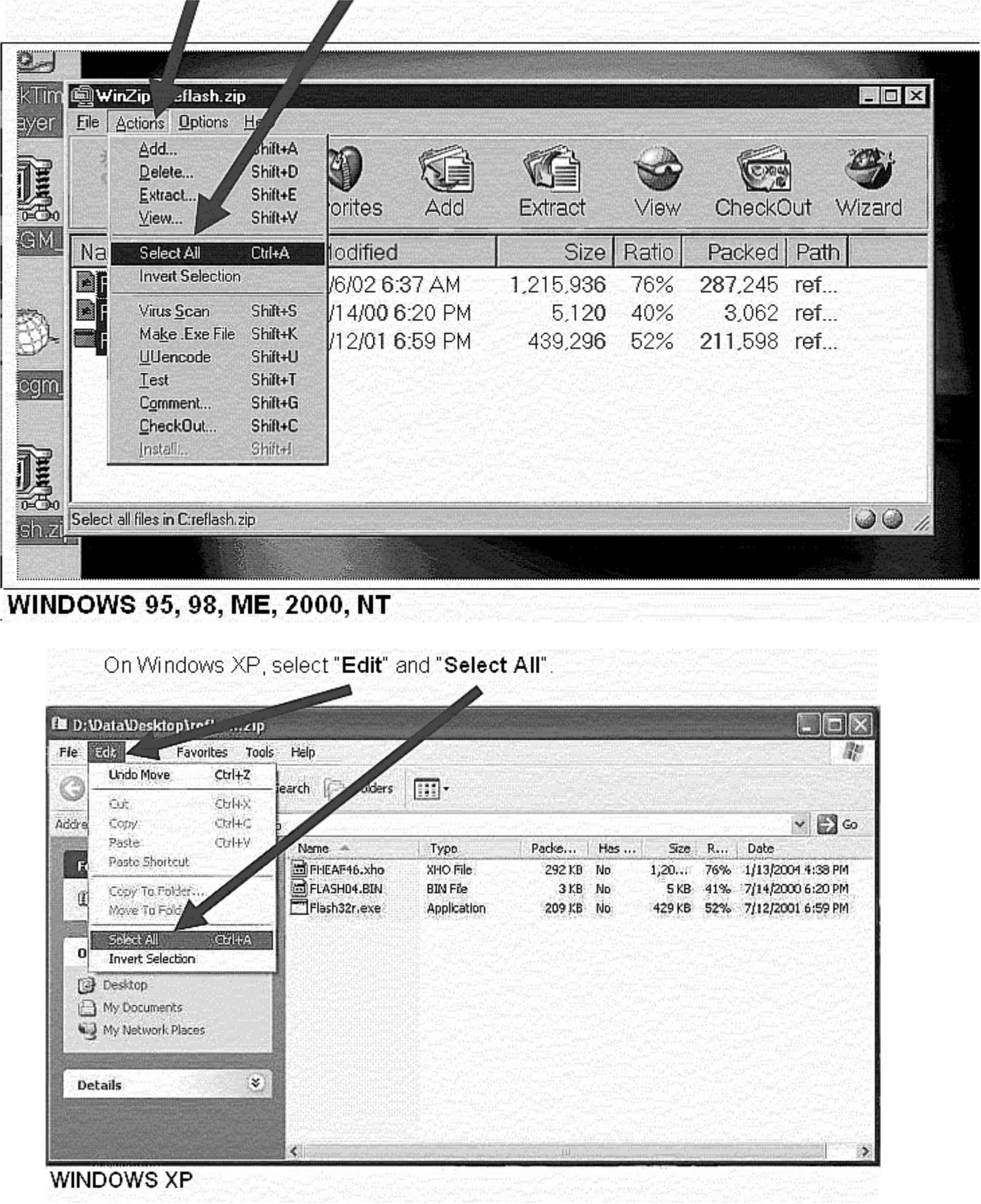

15. On Windows 95, 98, ME, 2000 and NT, select "Actions" and "Select All".

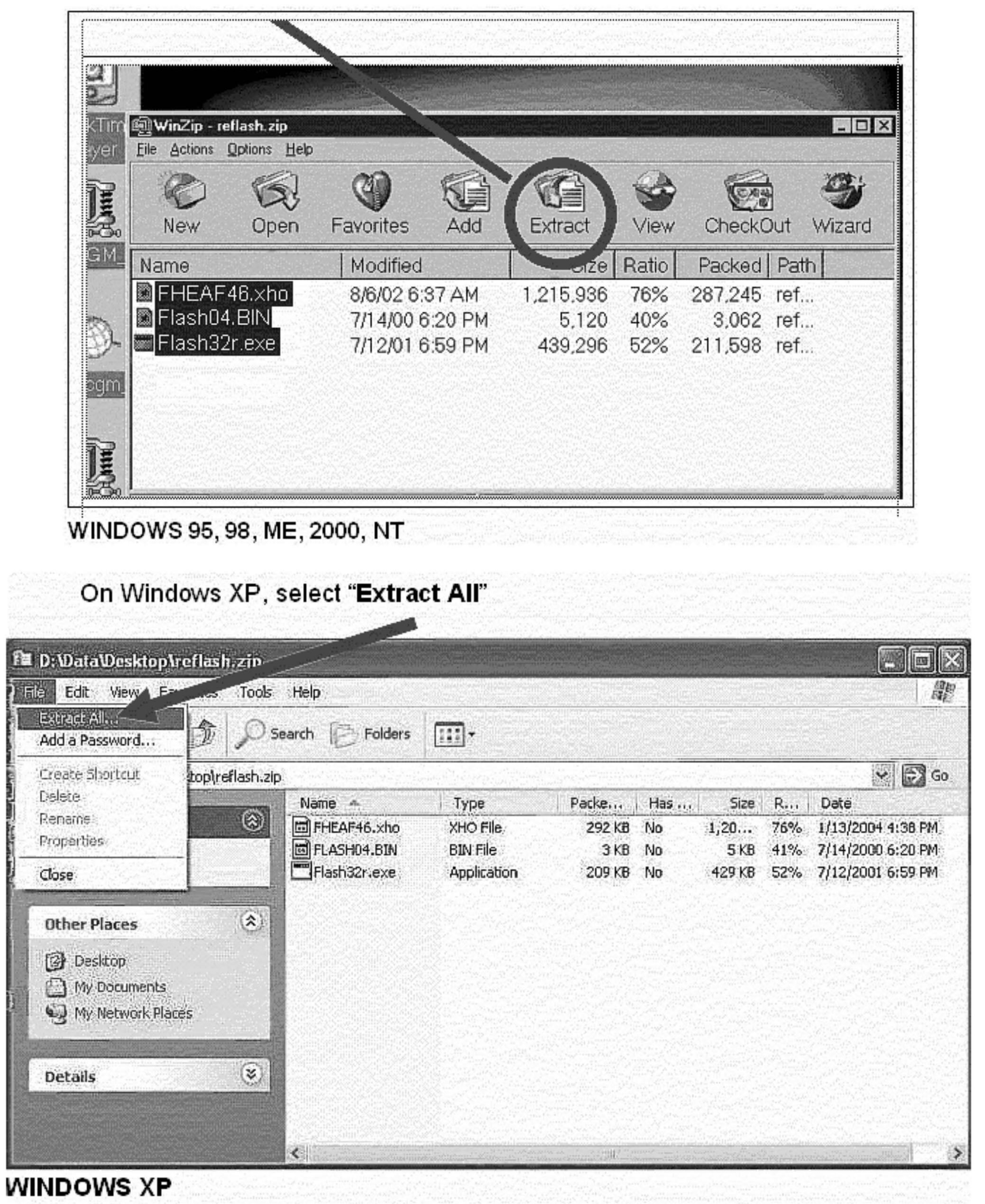

16. On Windows 95, 98, ME, 2000 and NT, select "Extract".

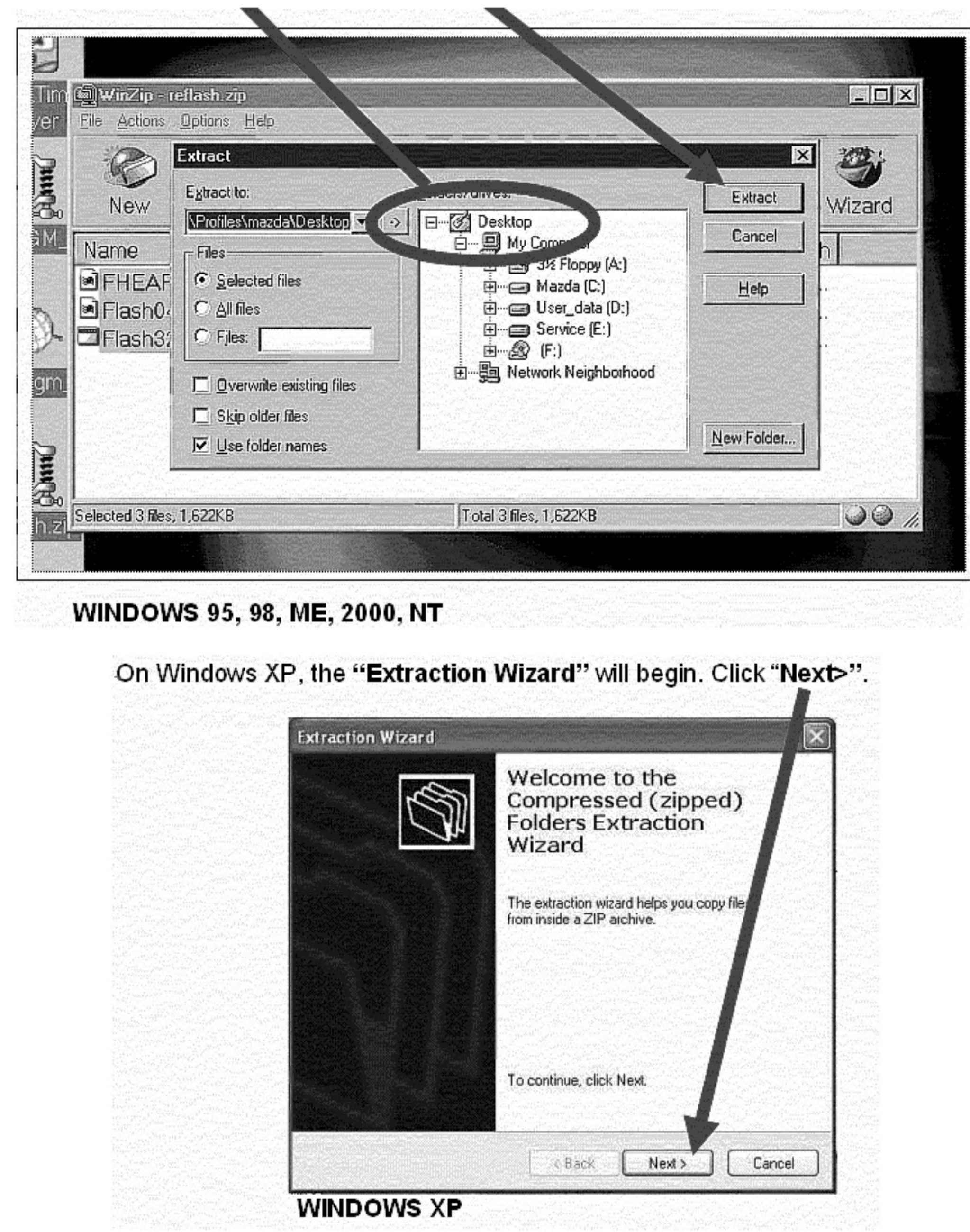

17. On Windows 95, 98, ME, 2000 and NT, select "Desktop" and then select "Extract".

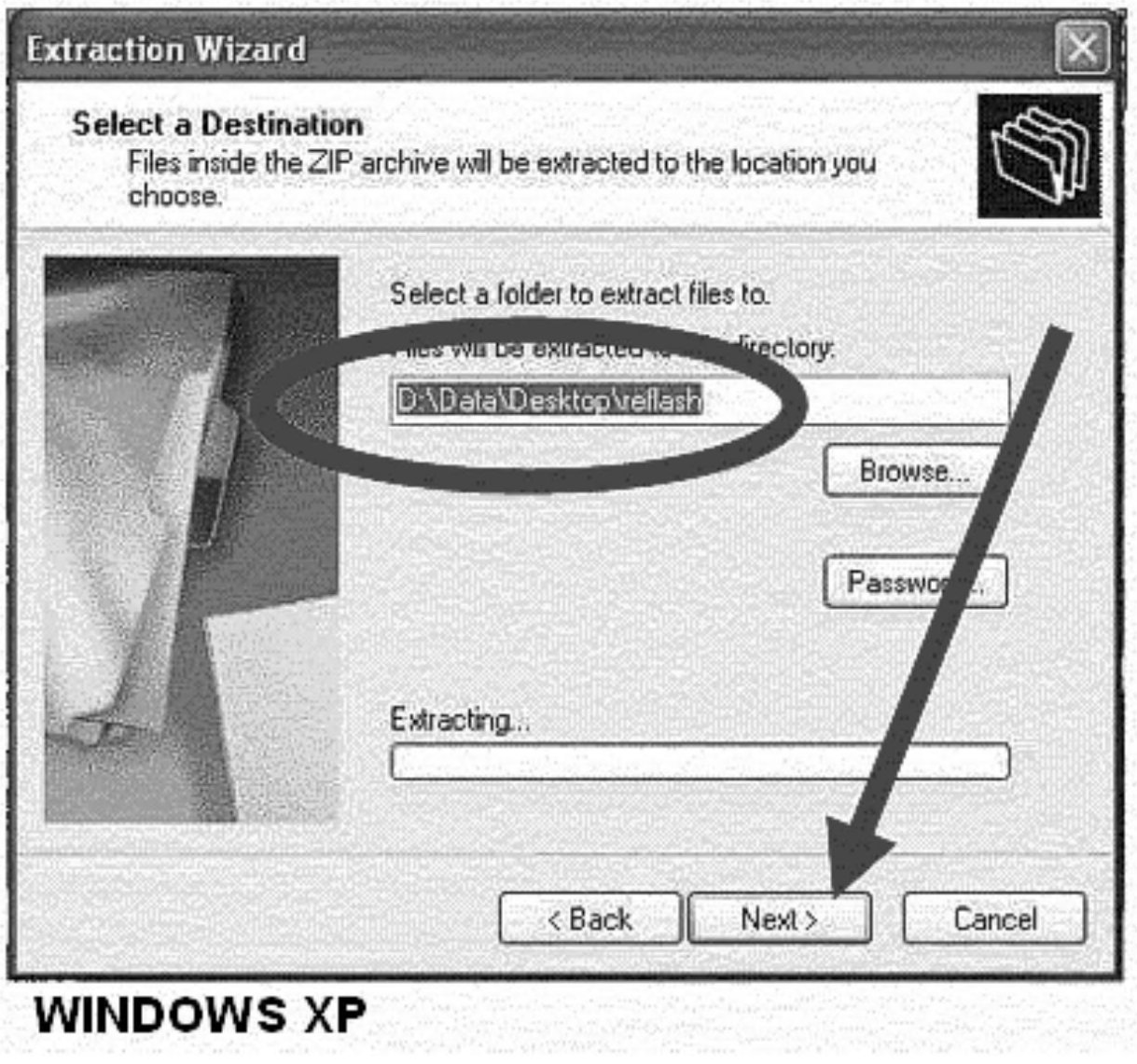

On Windows XP locate the "Desktop" and then select "Next>". The files will automatically be saved in a folder called "reflash" on your desktop.





18. On Windows 95, 98, ME, 2000 and NT, select "X" to close the window.

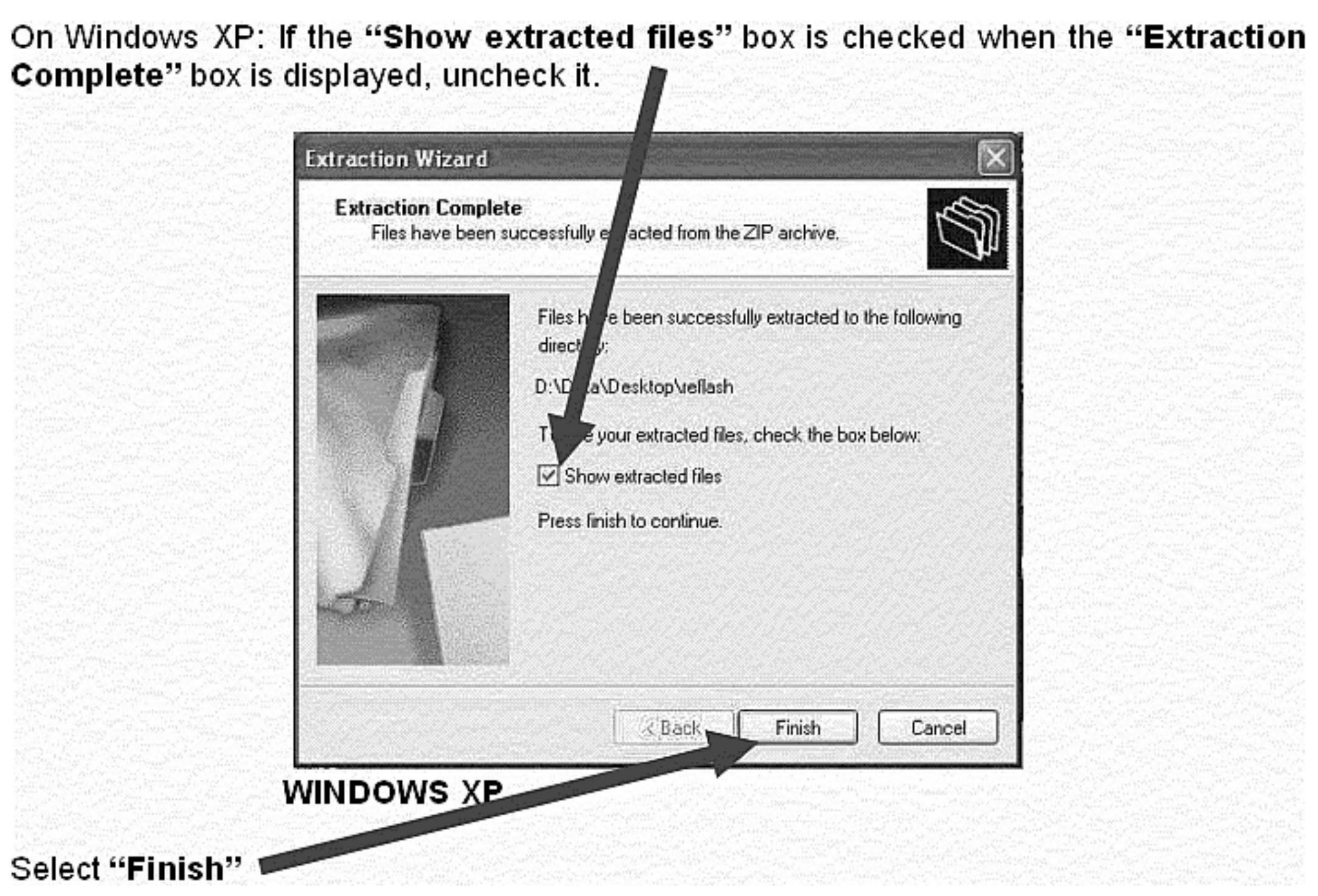

On Windows XP: If the "Show extracted files" box is checked when the "Extraction Complete" box is displayed" uncheck it.

19. The reflash software is now installed.

20. Proceed to "PROCEDURE 2: FIRST TIME TCM RE-FLASH".
