Intermediate Sensor Inspection

On-Vehicle Inspection





1. Disconnect the terminal component No. 2 connector.





2. Measure resistance between the terminals C and D.
^ If not as specified, inspect the intermediate sensor.
Resistance (ATF temperature: 20°C {68°F}) 513 - 627 ohms
3. Connect the terminal component No. 2 connector.

Inspection of Individual Part
1. Remove the intermediate sensor.

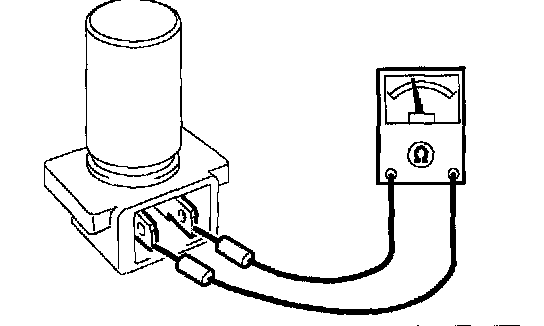

2. Measure resistance between the terminals of the input/output speed sensor.
^ If not as specified, replace the intermediate sensor.
^ If it is normal, replace the harness.
Resistance (ATF temperature: 20°C {68°F}) 513 - 627 ohms
3. Install the intermediate sensor.
