Transmission Temperature Sensor/Switch: Testing and Inspection

TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION
1. Disconnect the coupler component.
2. Remove the oil dipstick.

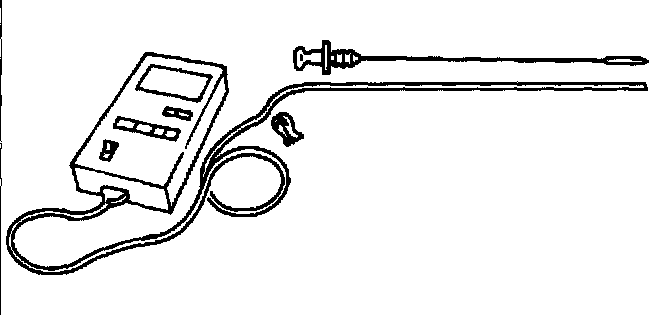

3. Insert the thermistor probe into the filler tube.
4. Start the engine.

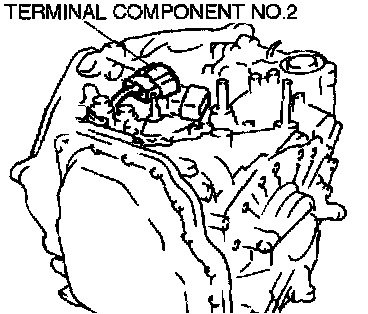

Connector Location

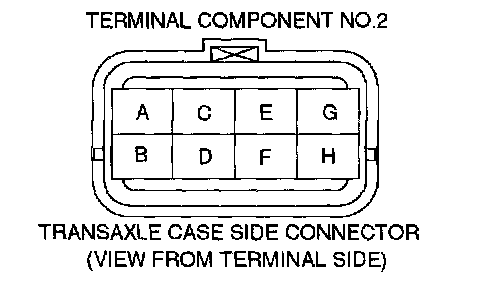

Connector View

5. Measure resistance between the terminals G and F.
^ If not as specified, replace the TFT sensor.

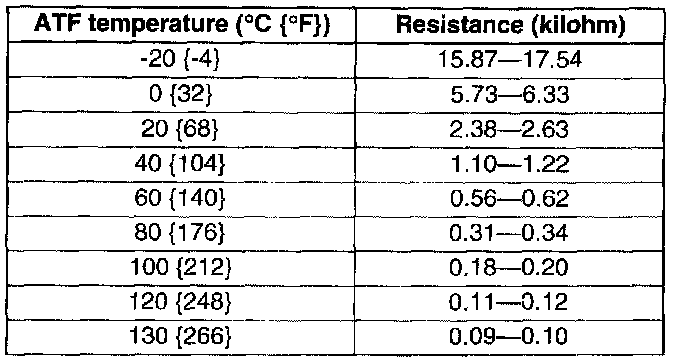

Temperature/Resistance Table

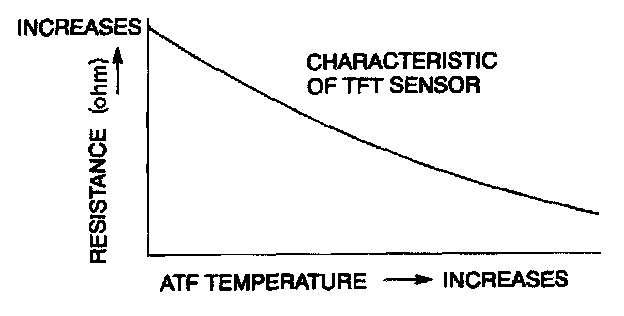

Temperature/Resistance Graph

6. Connect the coupler component.
