Anti-Lock Brake Control Module Parameter Identification Index

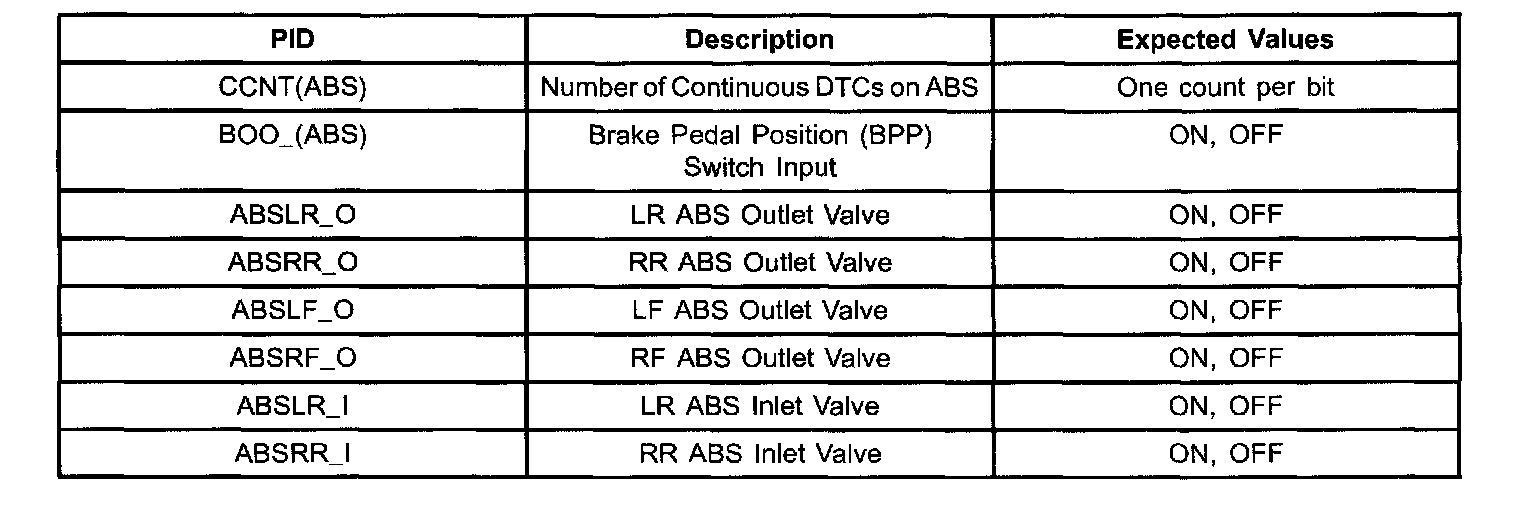

Part 1 Of 2. Anti-Lock Brake Control Module Parameter Identification (PID) Index:

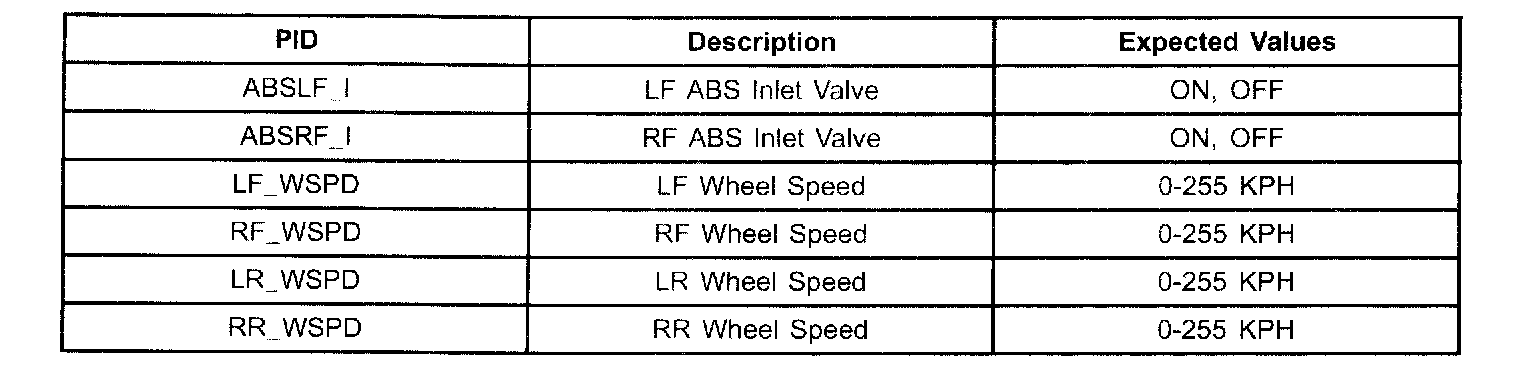

Part 2 Of 2:
