Engine

General Specifications-3.0L Duratec (4V)

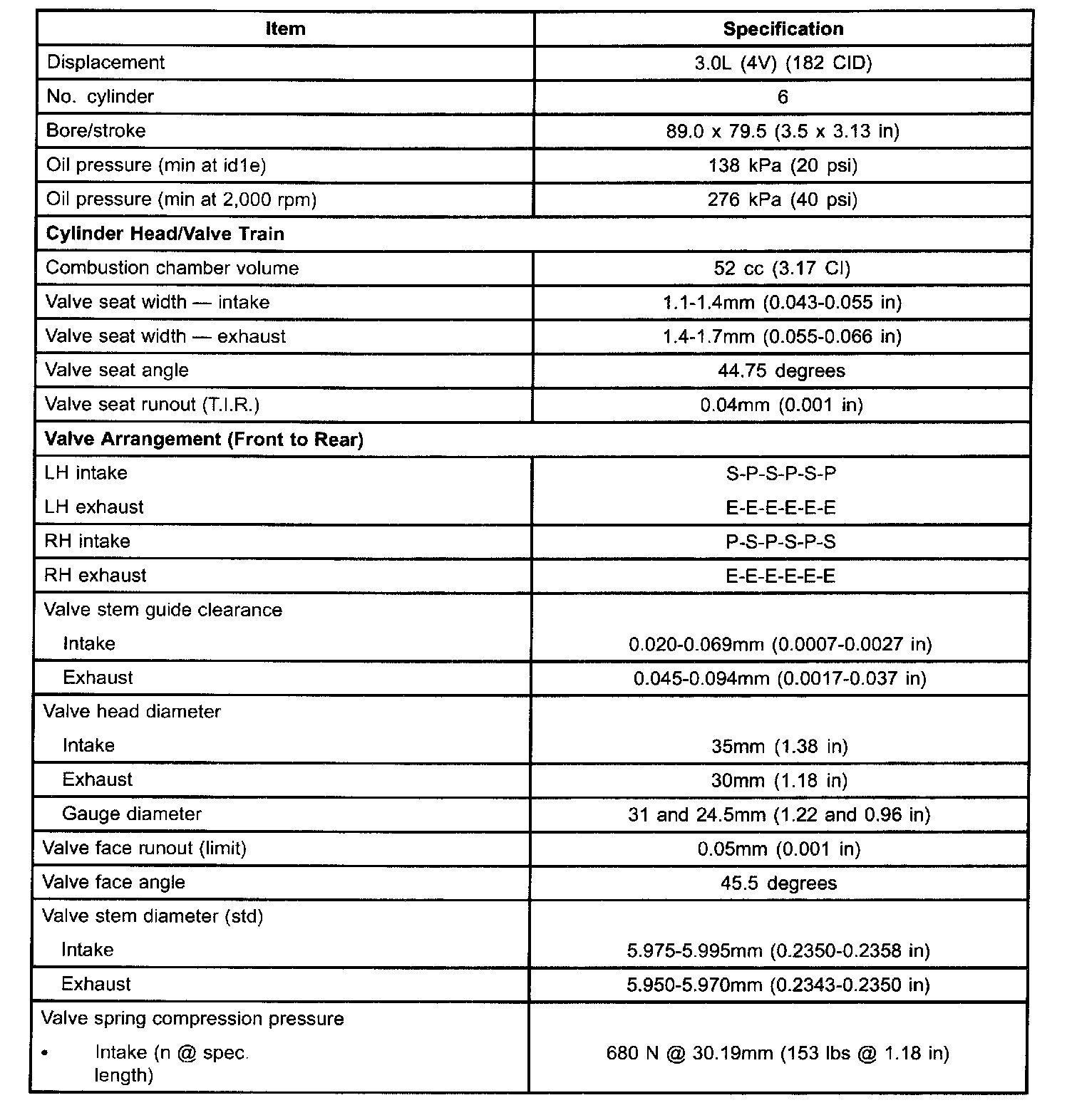

1 Of 5:

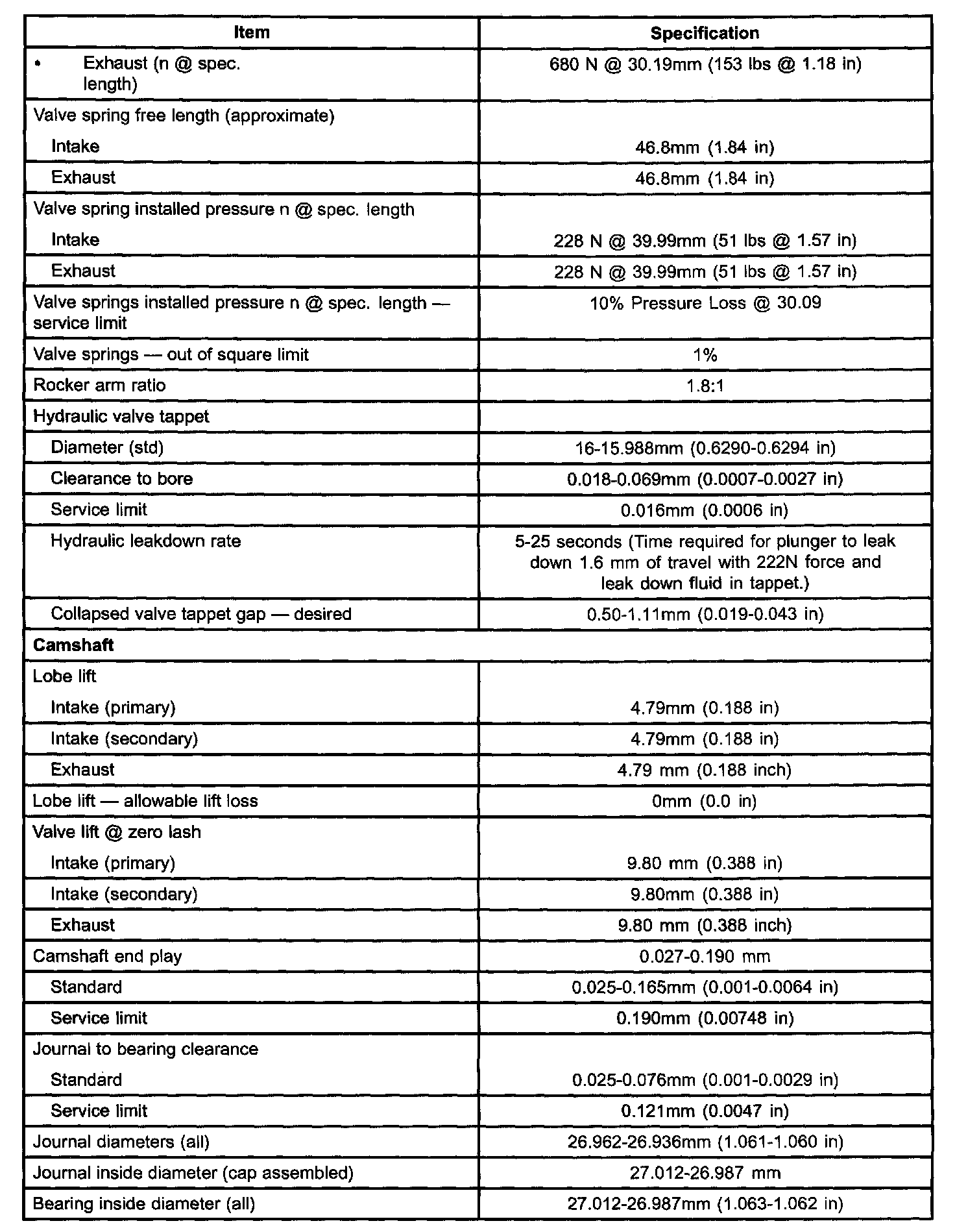

2 Of 5:

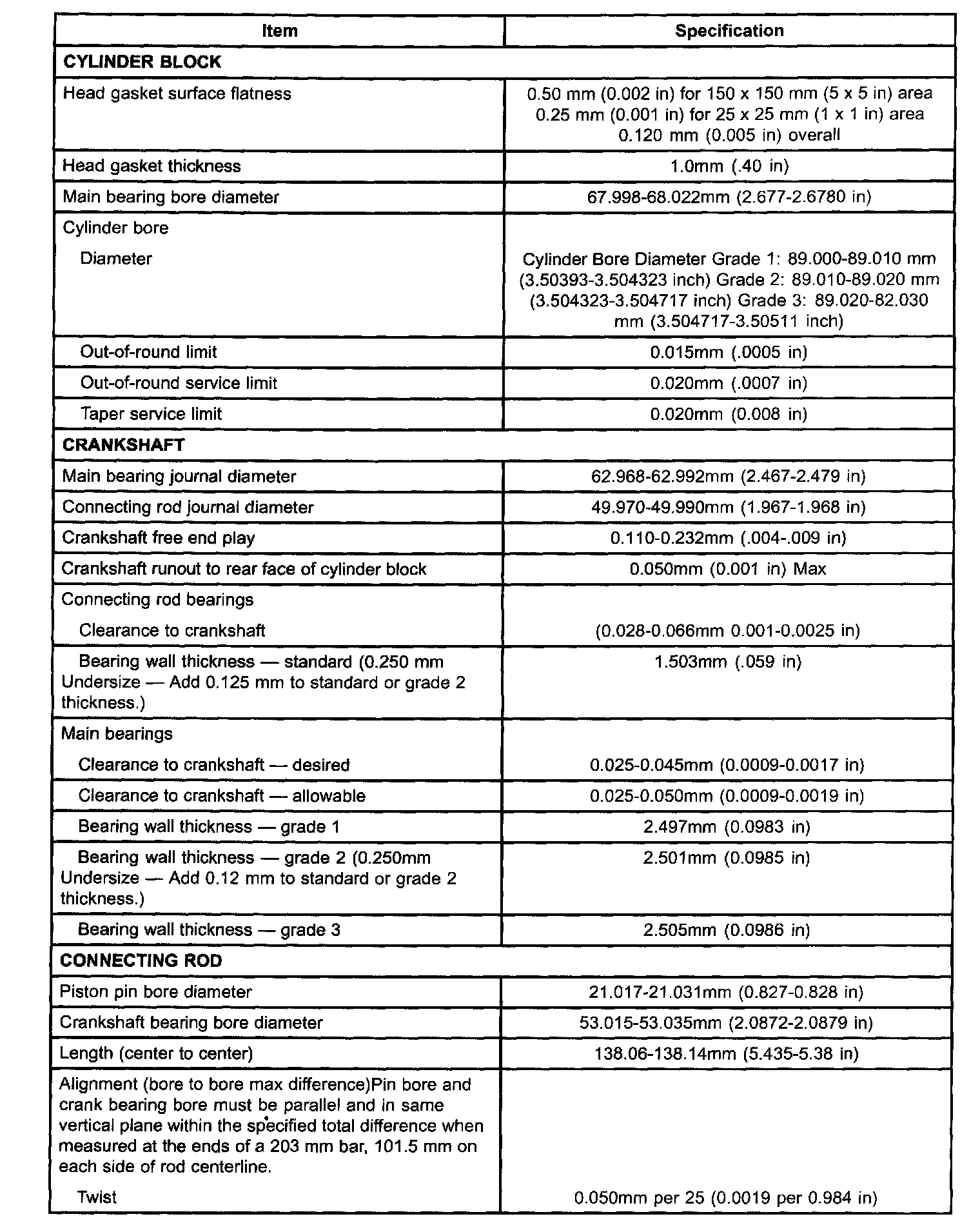

3 Of 5:

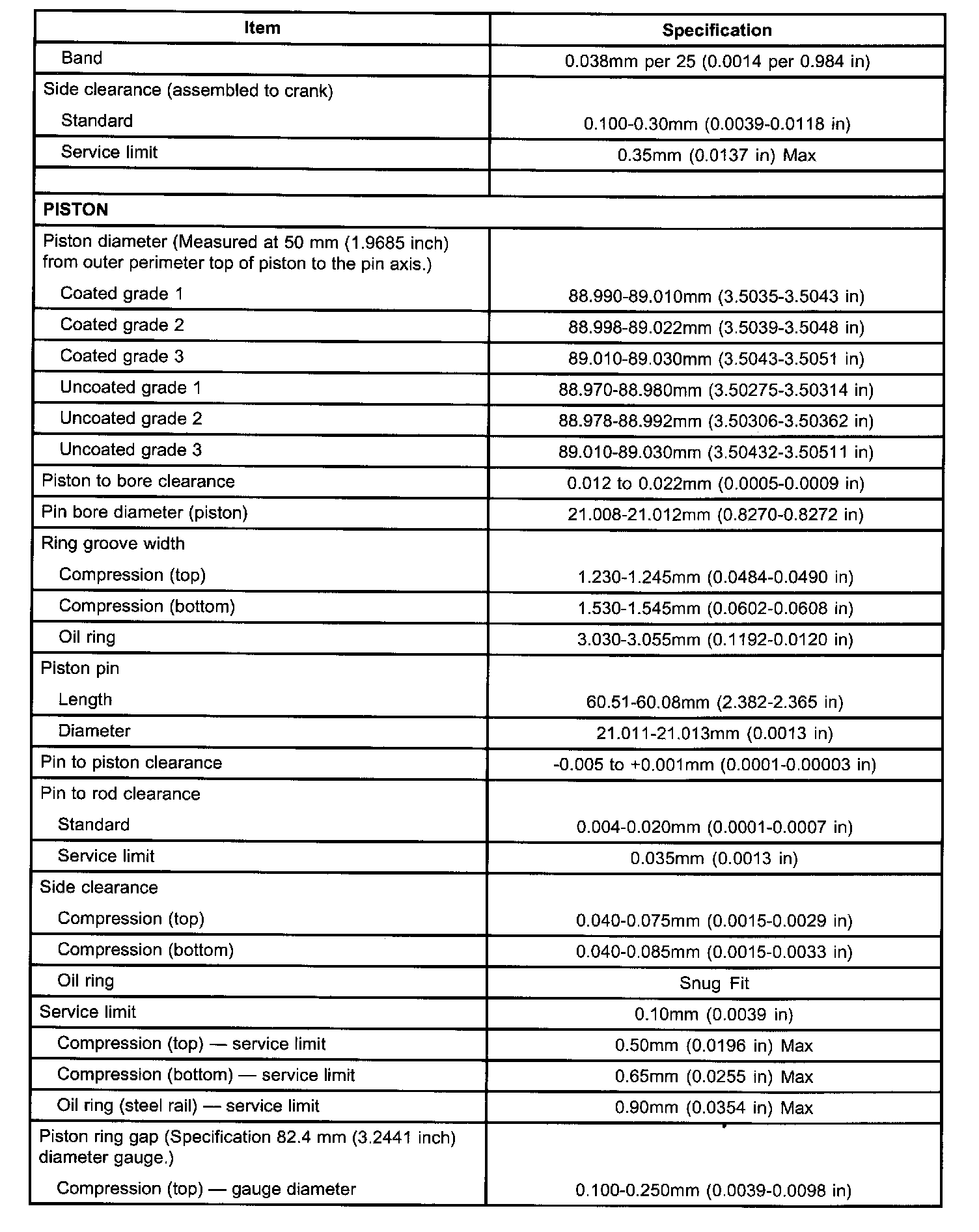

4 Of 5:

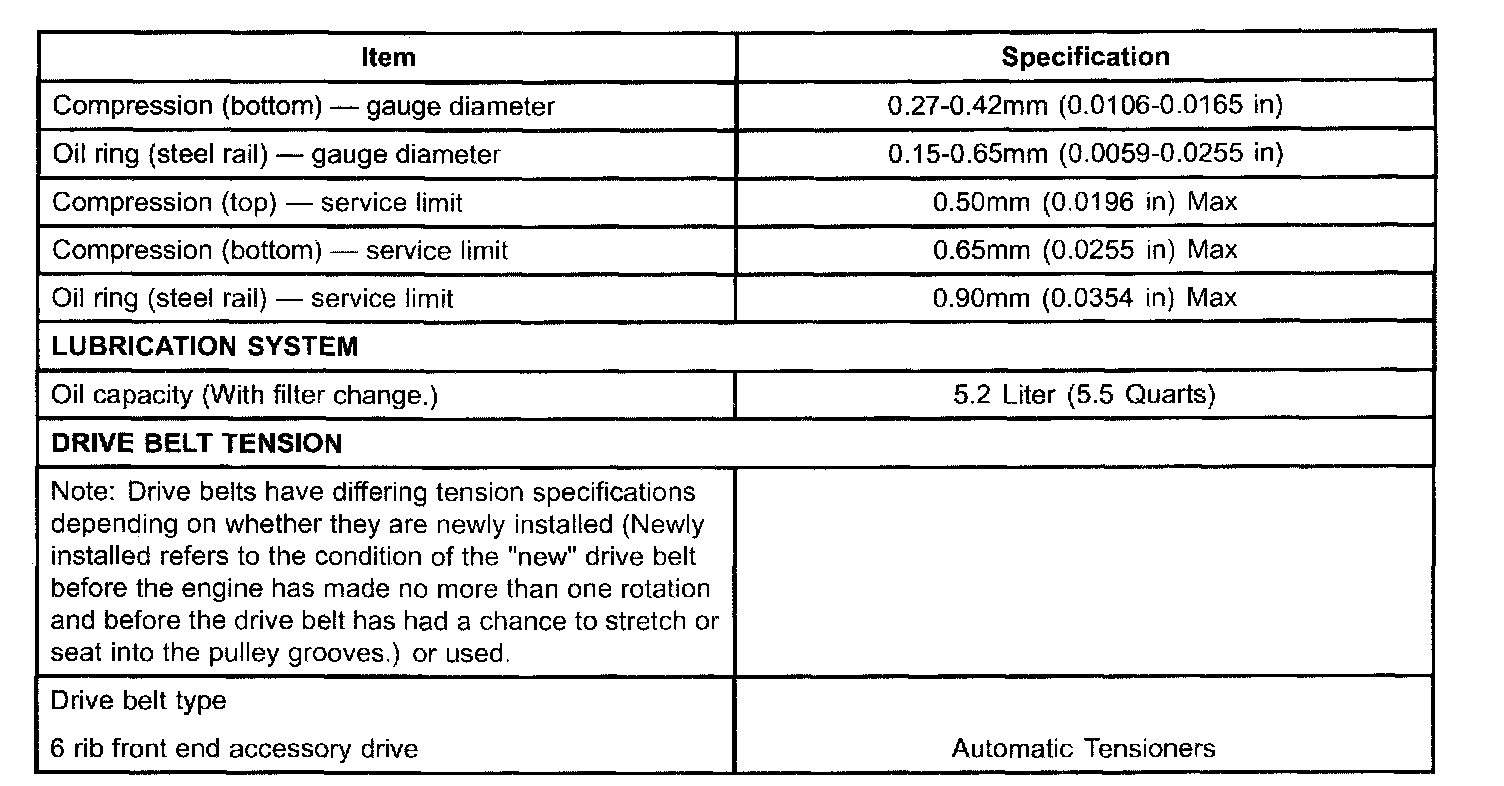

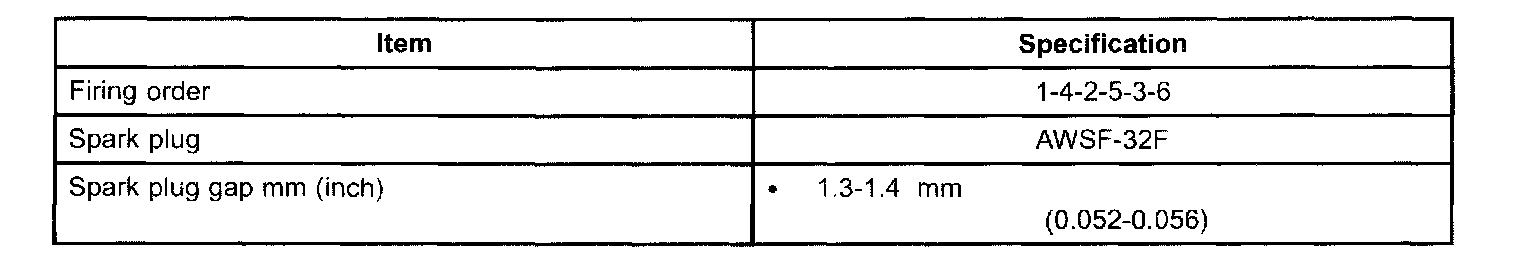

5 Of 5:

Fuel System Specifications

Torque Specifications
For specifications regarding Cylinder Head bolts, refer to service procedure. Assembly (1 - 50)
Lower intake manifold bolts 10 Nm (1.0 kgf-m, 89 inch lbs.)





Upper intake manifold bolts

LH:

RH:

Camshaft Bearing Cap bolts
For specifications regarding Main Bearing Cap bolts, refer to service procedure. Assembly (1 - 50)
For specifications regarding Rod Bearing Cap bolts, refer to service procedure. Assembly (1 - 50)
For specifications regarding Crankshaft Pulley bolt, refer to service procedure. Service and Repair





Oil Pump bolts.
Flex Plate bolts 80 Nm (59 ft. lbs.)
Flywheel bolts 112 Nm (11.4 kgf-m, 83 ft. lbs.)

LH:

RH:

Exhaust Manifold bolts
Water Pump bolts 10 Nm (1.0 kgf-m, 89 inch lbs.)

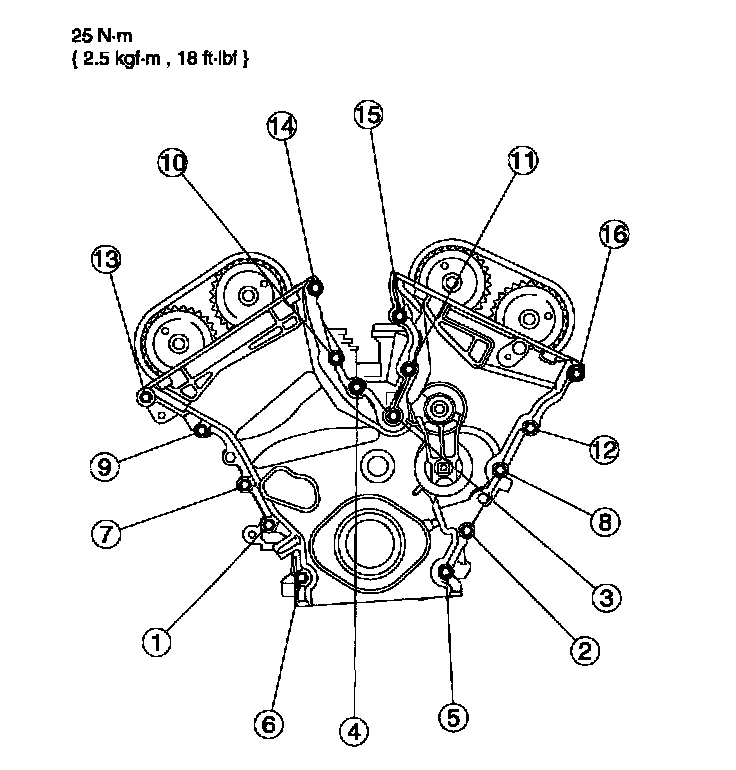

Engine Front Cover bolts.
