Normal Scan Data Values

PID/Data Monitor Reference Value (3.0L A/T) Part 1:

PID/Data Monitor Reference Value (3.0L A/T) Part 2:

Typical Diagnostic Reference Values Part 1:

Typical Diagnostic Reference Values Part 2:

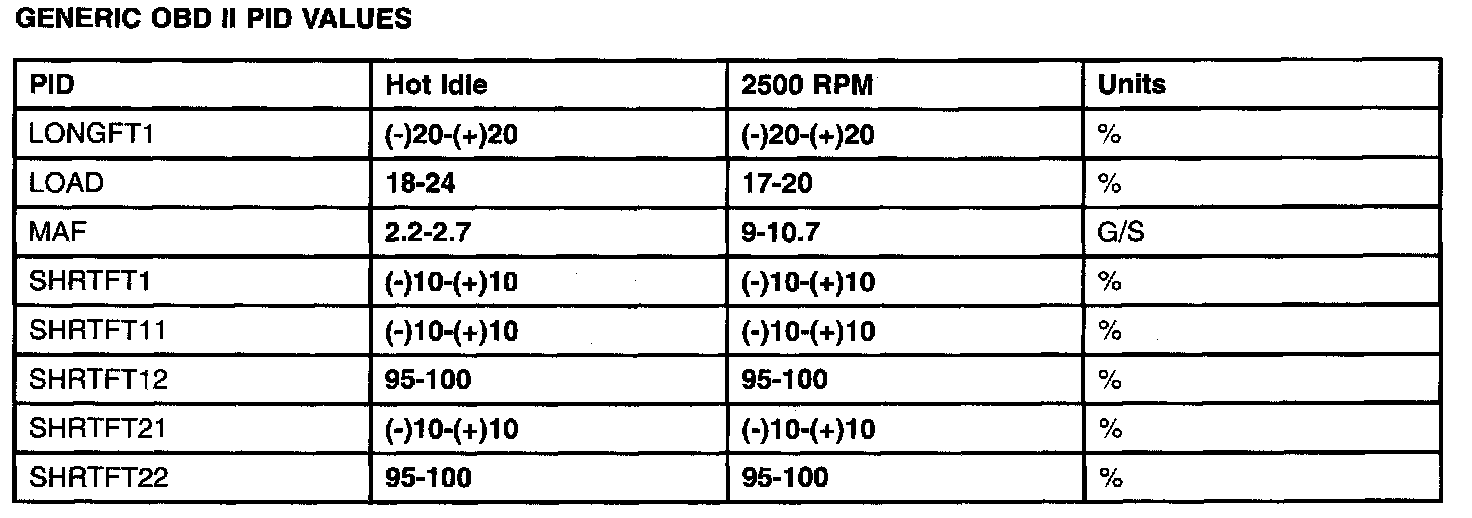

Generic OBD II PID Values:

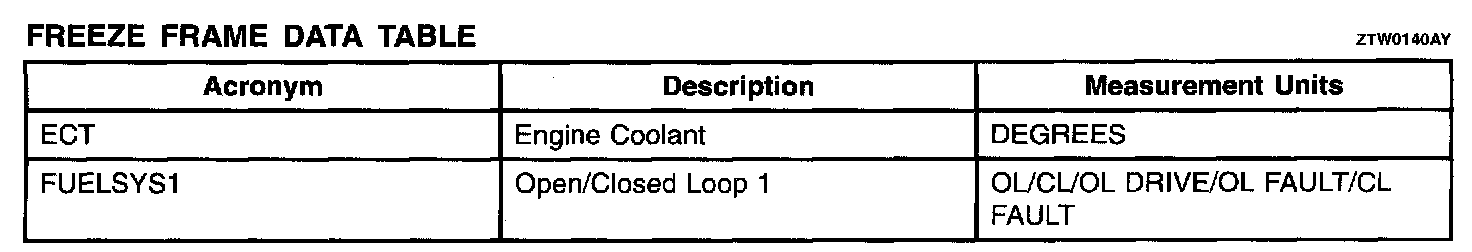

Freeze Frame Data Table Part 1:

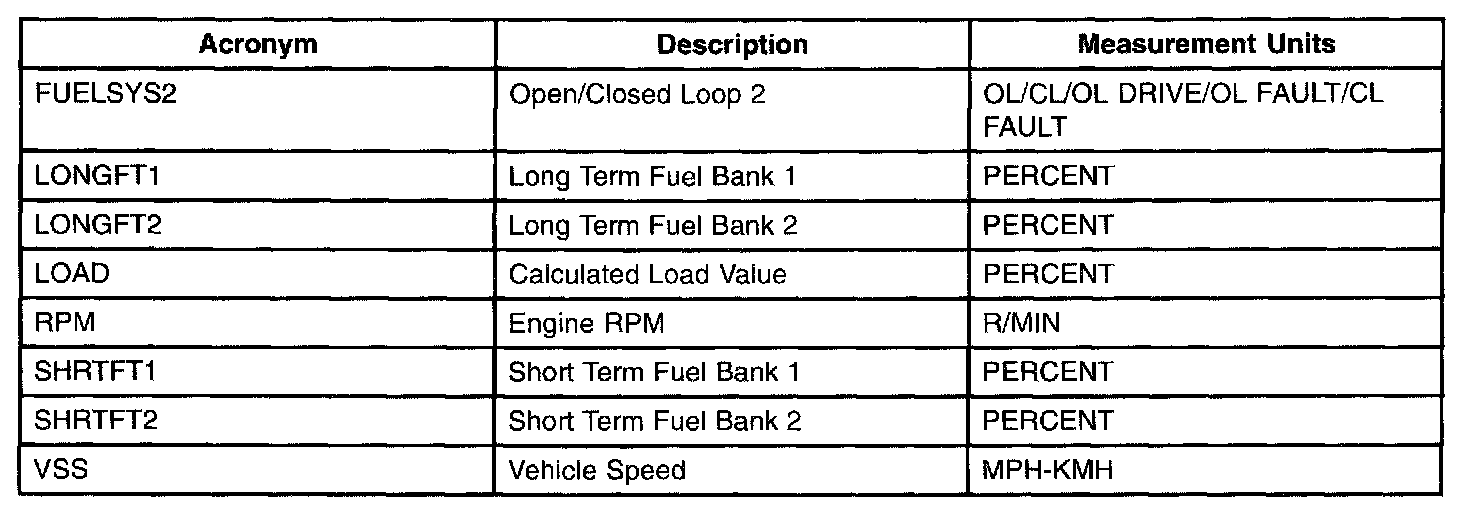

Freeze Frame Data Table Part 2:
