Grille: Service and Repair

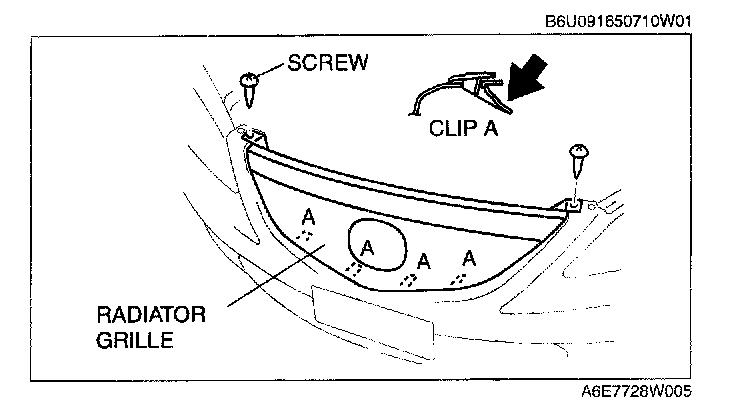

RADIATOR GRILLE REMOVAL/INSTALLATION

1. Remove the screws.
2. Press clips A in the direction of the arrow, pull the radiator grille outward, and remove it from the front bumper.
3. Install in the reverse order of removal.
