Power Outside Mirror Disassembly/Assembly

POWER OUTSIDE MIRROR DISASSEMBLY/ASSEMBLY

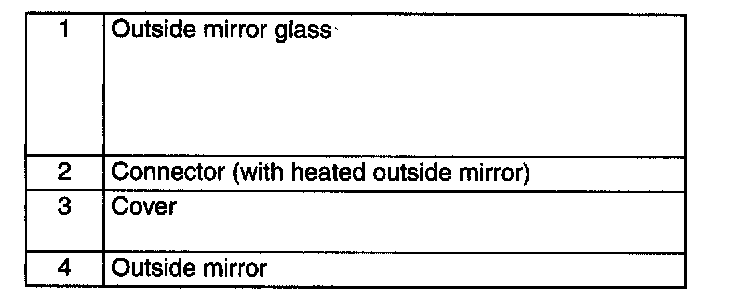

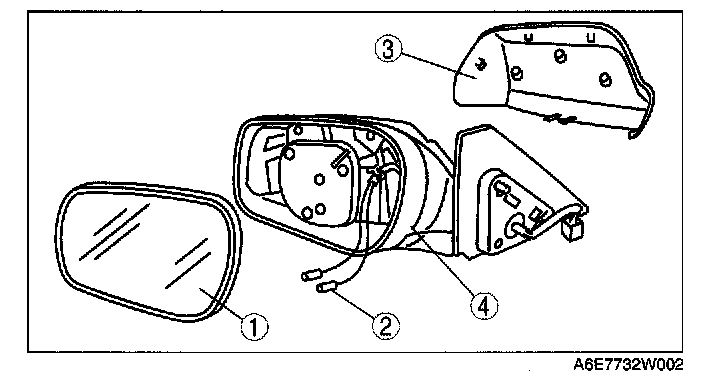

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

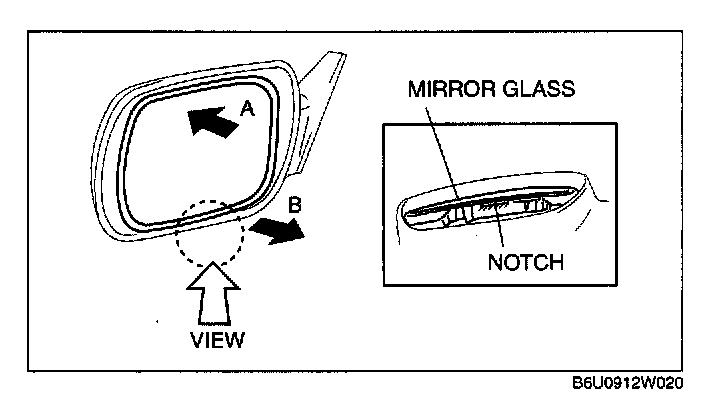

Outside Mirror Glass Disassembly Note




1. Press area A of the glass so that area B moves outward.
2. Insert a screwdriver into the notch and remove the glass from the mirror base.

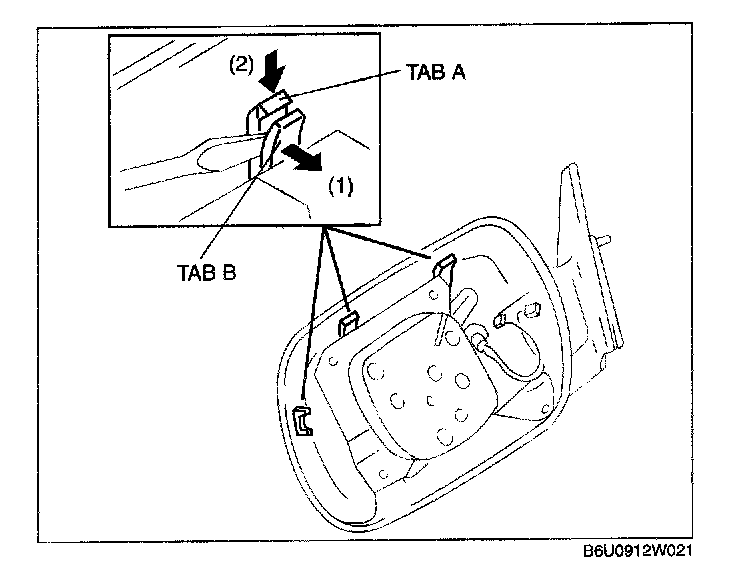

Cover Disassembly Note




1. Pull off the tab A with a screwdriver and press the tab B downward.

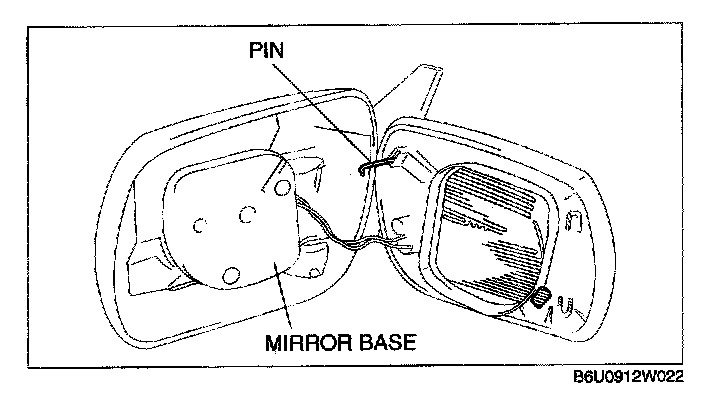

Outside Mirror Glass Assembly Note




1. Press the outside mirror into the base so that the pin does not dislodge.
