Removal and Replacement

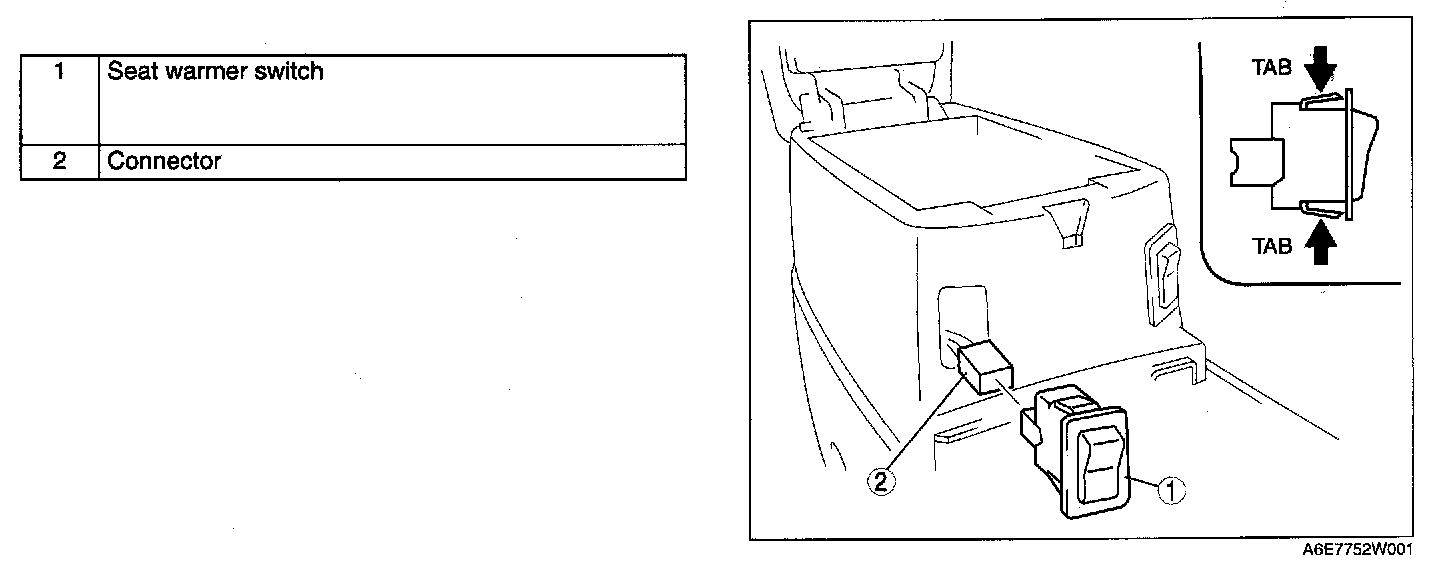

SEAT WARMER SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the panel No.1.
3.
Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
Seat Warmer Switch Removal Note 1.
Squeeze the tabs of seat warmer switch and pull it outward to remove it.
