Rear Seat [Sedan]

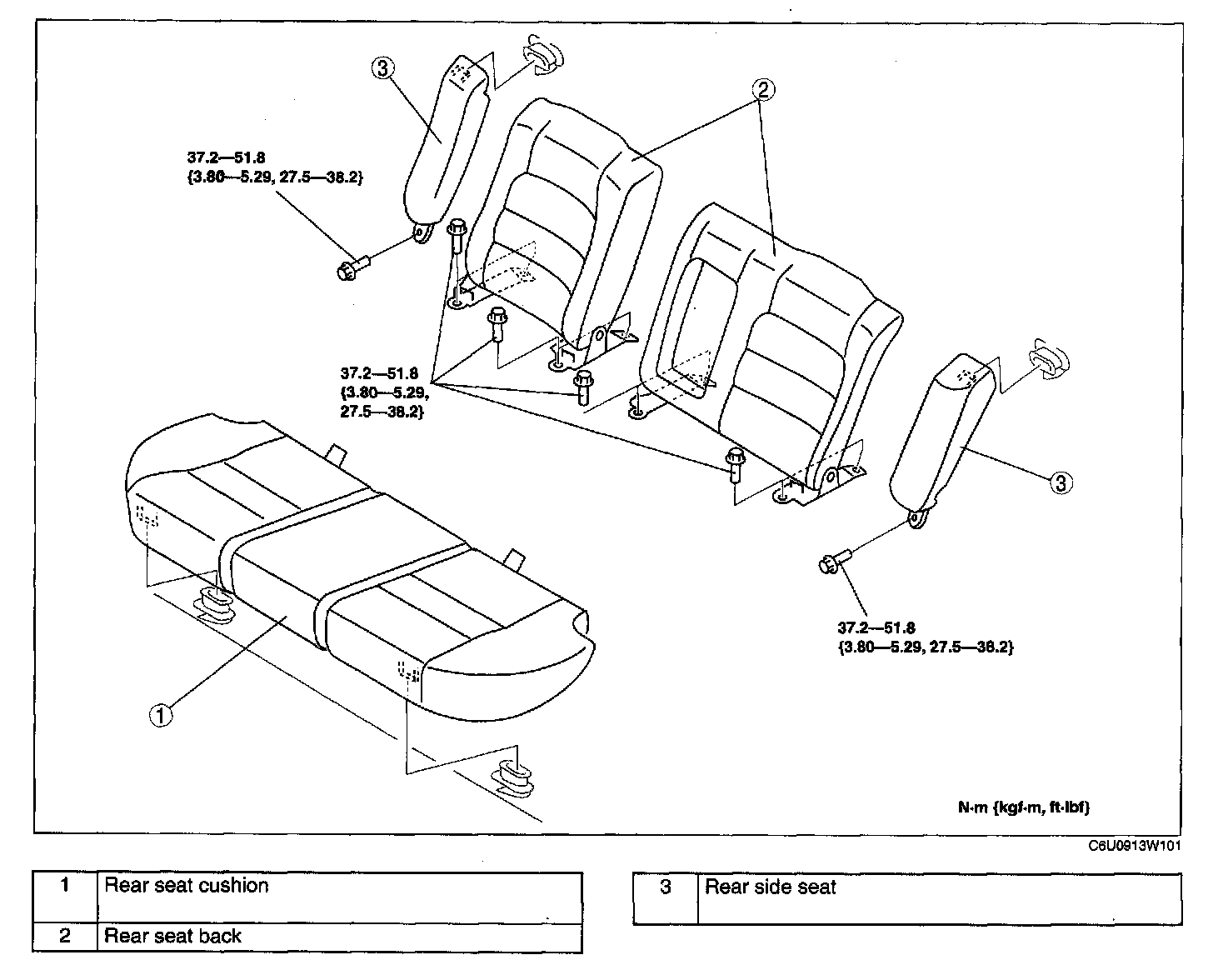

REAR SEAT REMOVAL/INSTALLATION [SEDAN]




1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

Rear Seat Cushion Removal Note

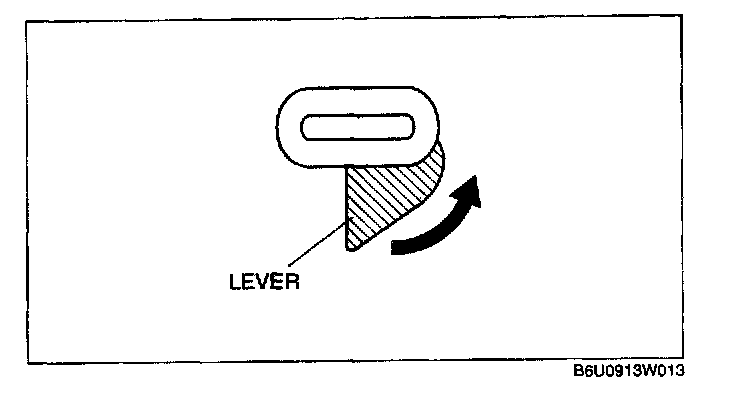

1. Remove the rear seat cushion while pushing the lever in the direction of the arrow.

Rear Side Seat Removal Note




1. Partially peel back the trunk side trim.

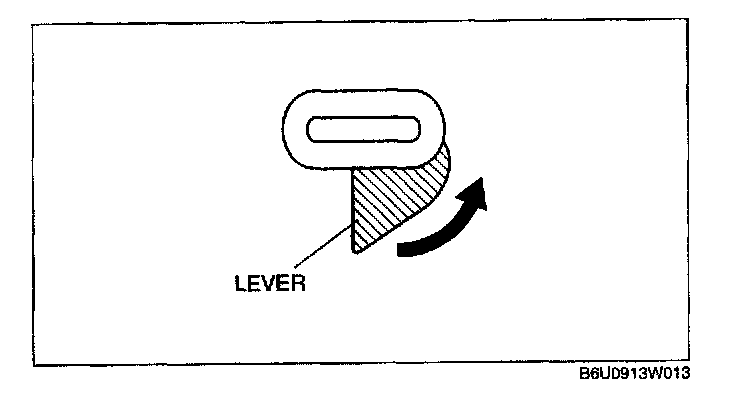

2. Remove the rear side seat while pushing the lever in the direction of the arrow.

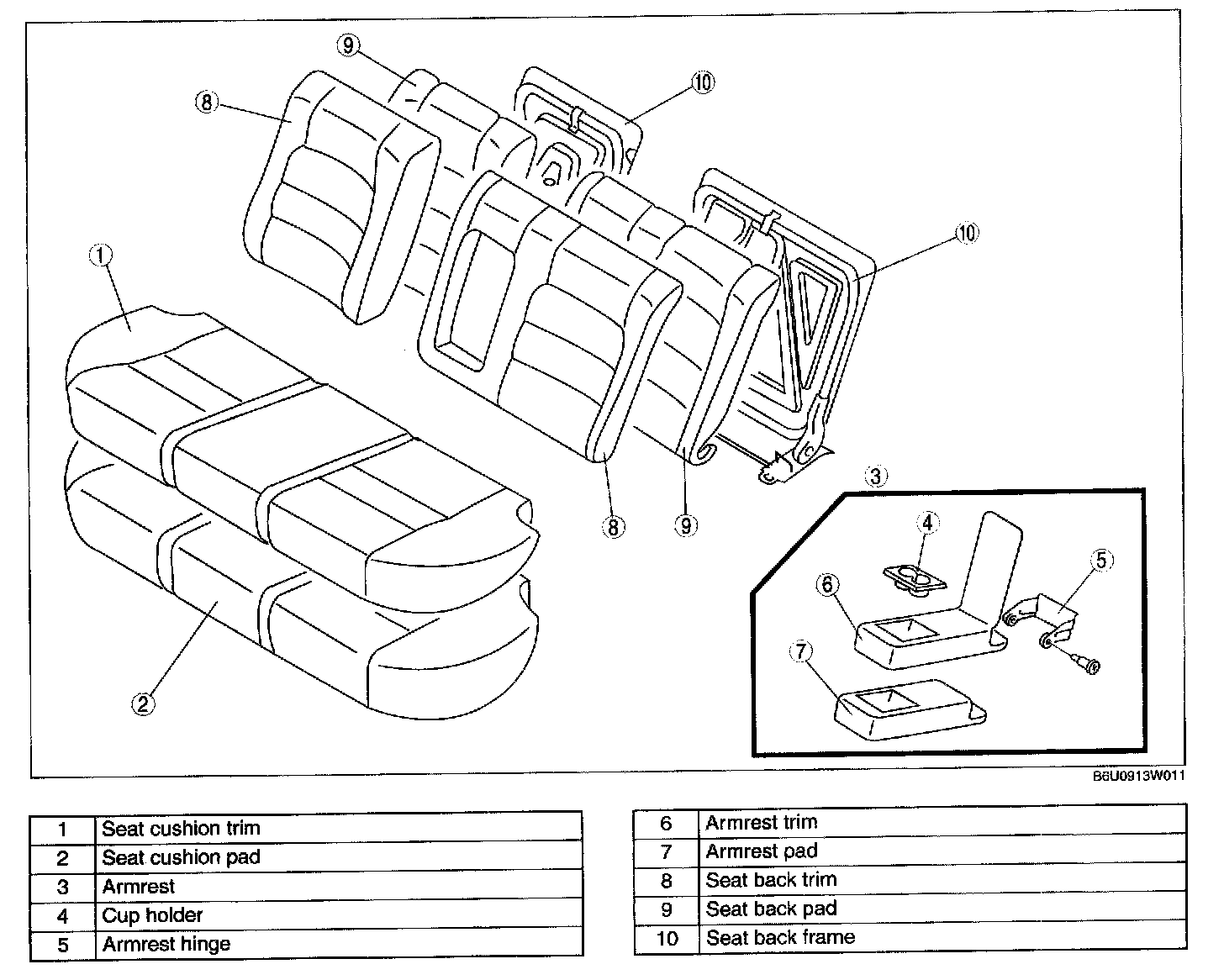

REAR SEAT DISASSEMBLY/ASSEMBLY [SEDAN]




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
