Front Seat Removal/Installation

FRONT SEAT REMOVAL/INSTALLATION

WARNING: Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat (with a side air bag).

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.

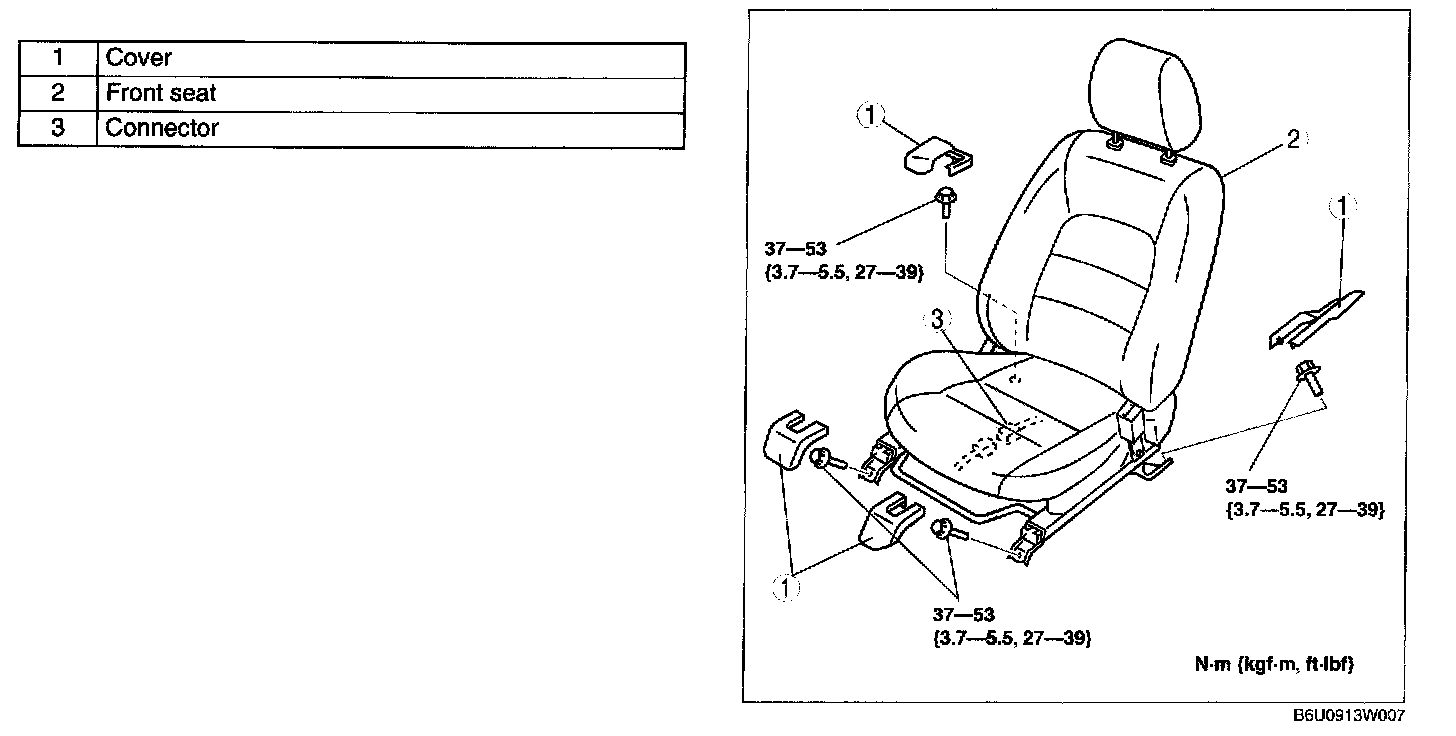

3. Remove in the order indicated in the table.






4. Install in the reverse order of removal.
