Brake Fluid Level Sensor/Switch: Testing and Inspection

FLUID LEVEL SENSOR INSPECTION
1. Disconnect the negative battery cable.
2. Disconnect the sensor connector.

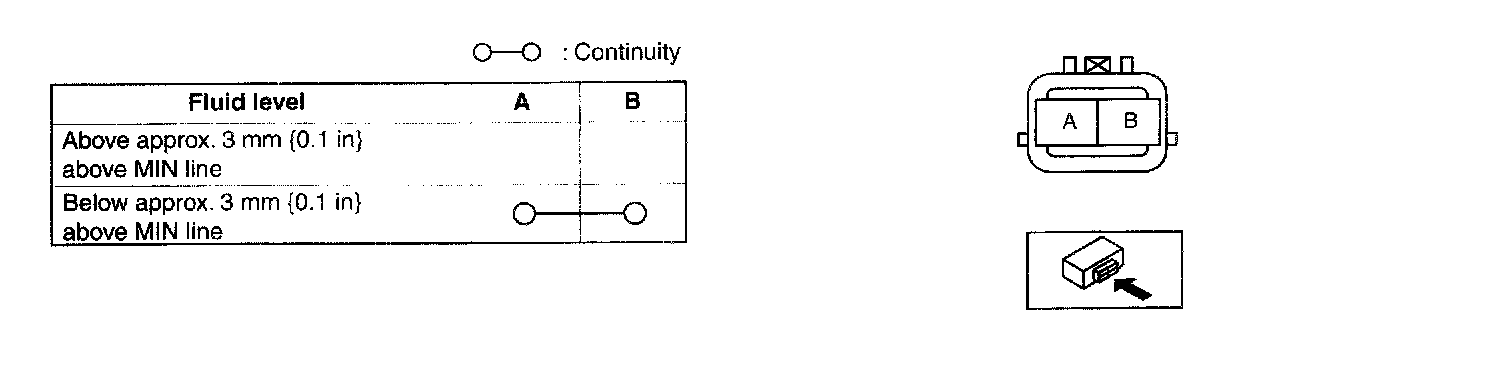

3. Inspect for continuity between terminals of fluid level sensor.
^ If not as specified, replace the fluid level sensor.
