Engine Oil Control Valve: Service and Repair

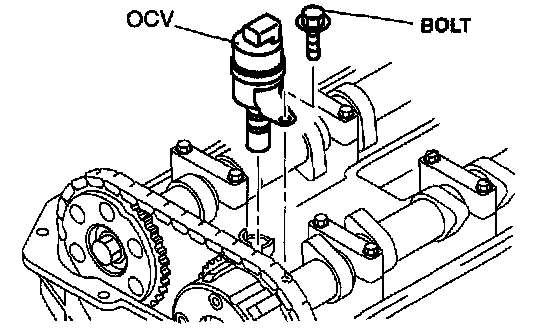

OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the plug hole plate.
3. Remove the high-tension lead.
4. Remove the OCV connector.
5. Remove the ventilation hose.
6. Remove the cylinder head cover.





7. Remove the OCV.
8. Install the OCV.
Tightening torque 8.0 - 11.5 Nm (81.6 - 117.2 kgf-cm, 70.2 - 101.7 inch lbs.)
9. Install the cylinder head cover.
10. Install the ventilation hose.
11. Install the OCV connector
12. Install the high-tension lead.
13. Install the plug hole plate.
