Connecting Rod Bearing Assembly Note

Connecting Rod Bearing Assembly Note

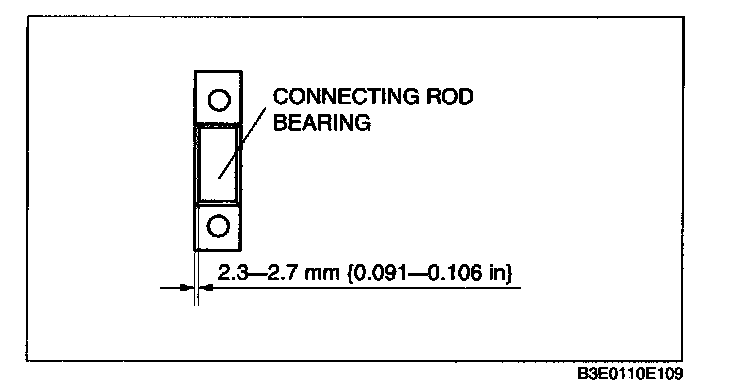

1. Install the connecting rod bearing to the connecting rod and connecting rod caps, as shown in the figure.
