Timing Chain Disassembly

TIMING CHAIN DISASSEMBLY





1. Disassemble in the order indicated in the table.

Crankshaft Pulley Lock Bolt Disassembly Note

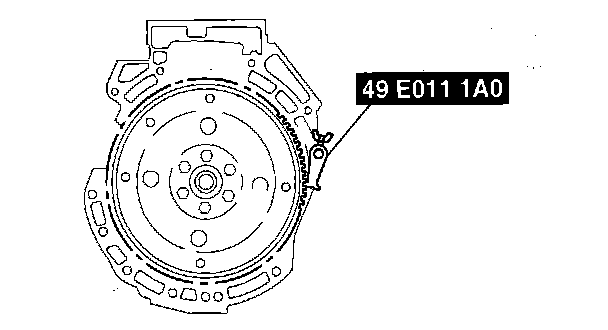

1. Hold the crankshaft using the SST.





2. Remove the crankshaft pulley lock bolt.

Front Oil Seal Disassembly Note

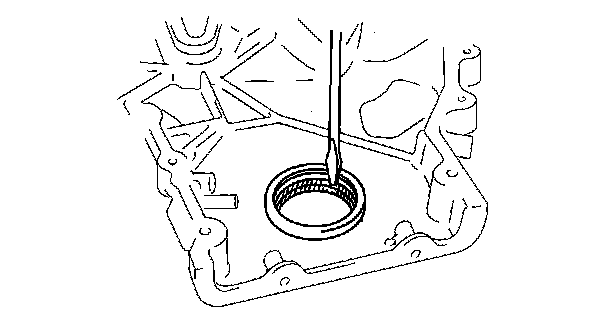

1. Remove the oil seal using a screwdriver.

Chain Tensioner Disassembly Note

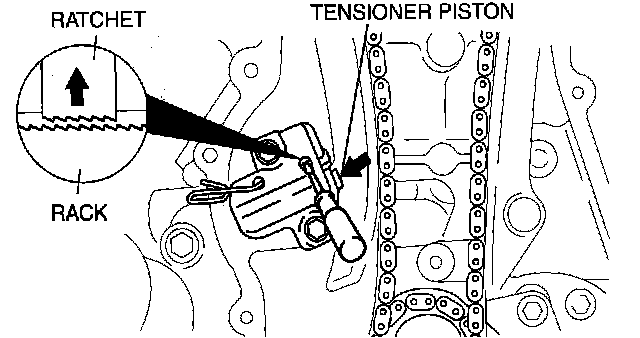

1. Unlock the chain tensioner ratchet using a suitable screw driver or equivalent tool.
2. Slowly press the tensioner piston.
3. Hold the chain tensioner piston with a 1.5 mm {0.06 inch} wire or paper clip.

Oil Pump Sprocket Disassembly Note

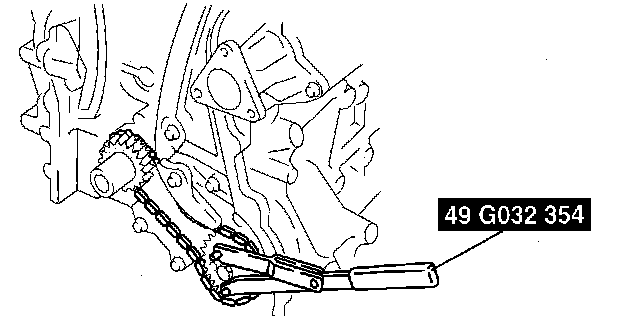

1. Hold the oil pump sprocket using the SST.
