Front Map Light

FRONT MAP LIGHT INSPECTION

1. Remove the front map light.

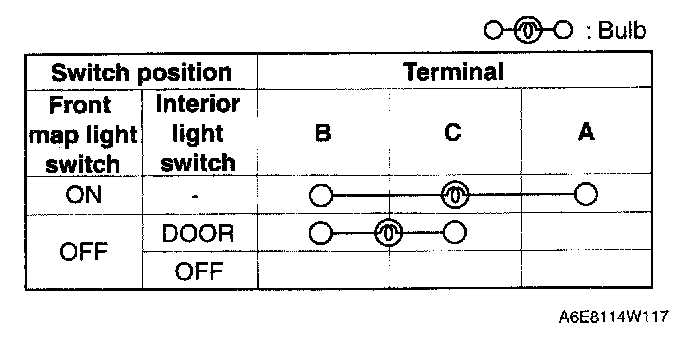

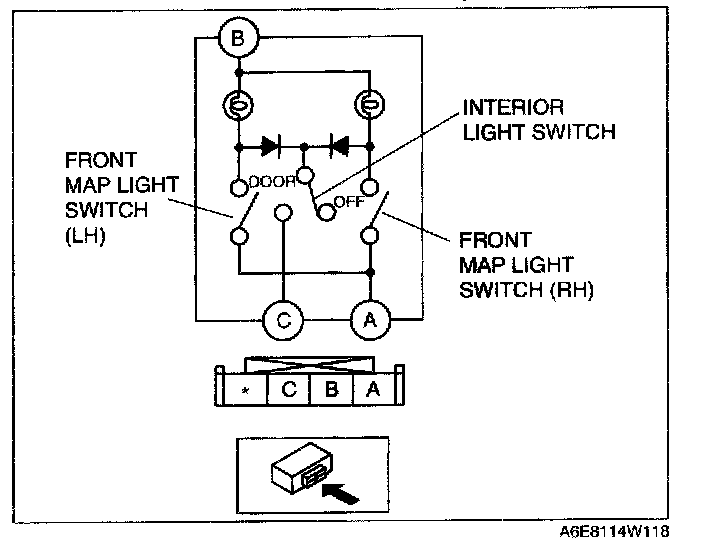

2. Inspect for continuity between the front map light terminals using an ohmmeter.
- If not as specified, replace the front map light.
