Removal/Installation

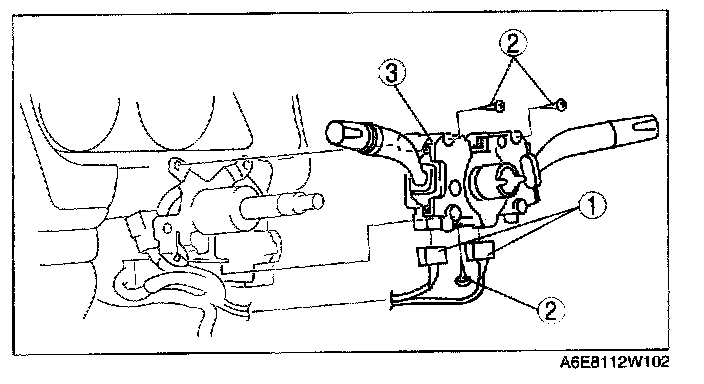

COMBINATION SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module.
3. Remove the steering wheel.
4. Remove the column cover.
5. Remove the clock spring.

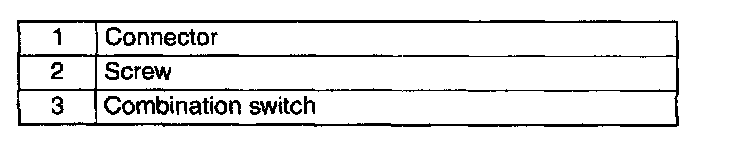

6. Remove in the order indicated in the table.
7. Install in the reverse order of removal.
