Turn Signals: Service and Repair

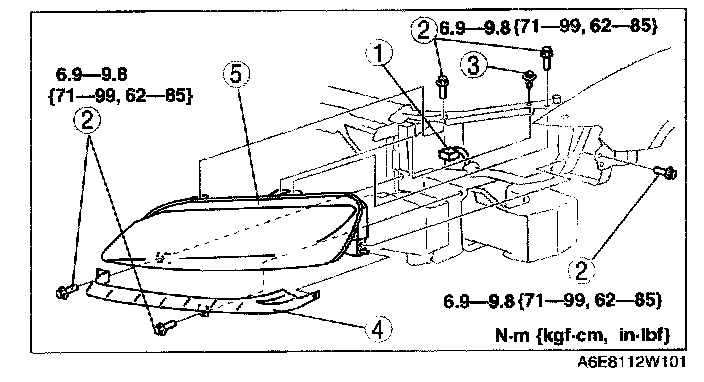

FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the front bumper.

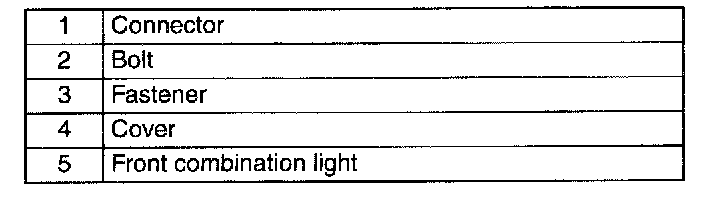

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Adjust the headlight aiming.
6. Adjust the front fog light aiming.
