Auxiliary Power Outlet: Testing and Inspection
ACCESSORY SOCKET INSPECTION 1.
Remove the accessory socket.
2.

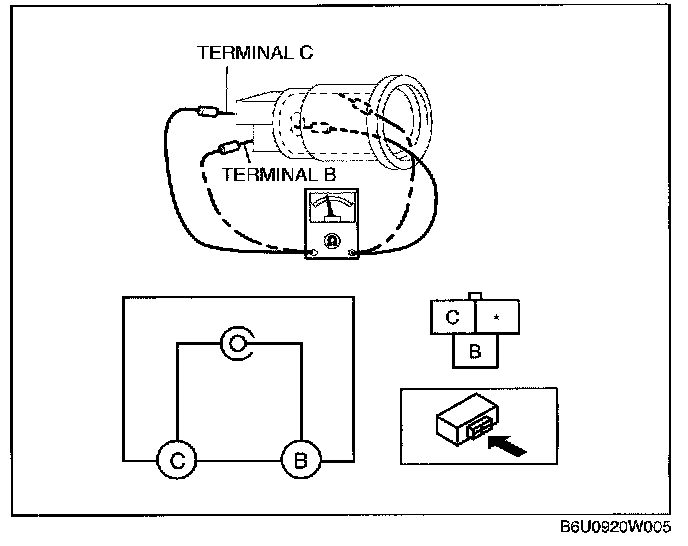

Inspect for continuity between the accessory socket terminals B and C using an ohmmeter as shown in the figure.
-
If not as specified, replace the accessory socket.
