Except California Emission Regulation Applicable ATX Model

Inspection Using An Oscilloscope (Reference) (Except for California emission regulation applicable ATX model)

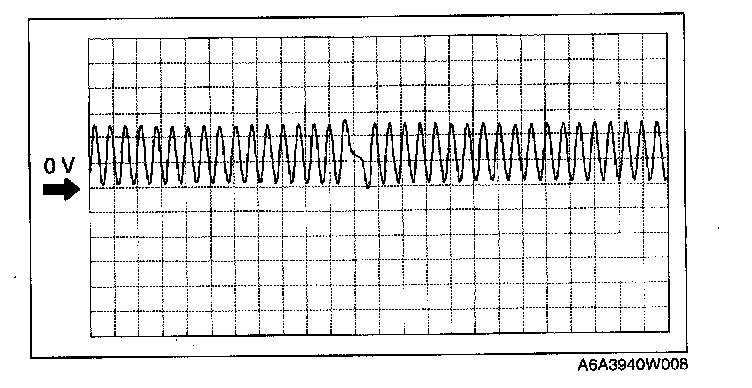

CKP sensor signal




(+)
- PCM terminals: 2D(+) - 2H(-)
- Oscilloscope setting: 2 V/DIV (Y), 4 ms/DIV (X), DC range
- Vehicle condition: Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)




(-)

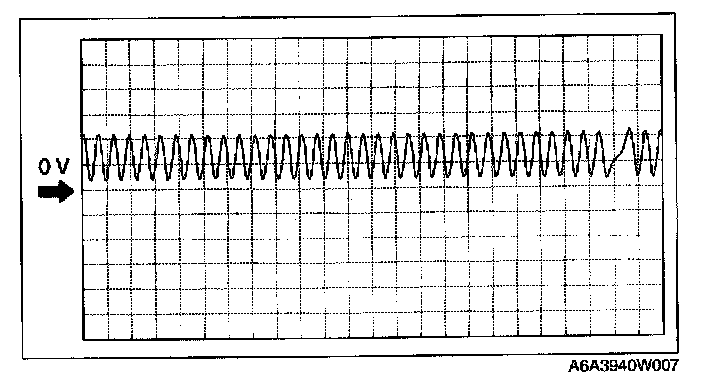

- PCM terminals: 2G(+) - 2H(-)
- Oscilloscope setting; 2 V/DIV (Y), 4 ms/DIV (X), DC range
- Vehicle condition: Idle after warm up (engine speed approx. 700 rpm, no load, P/S off, A/C off)
