Monitoring System and Control System Device Relationship Chart

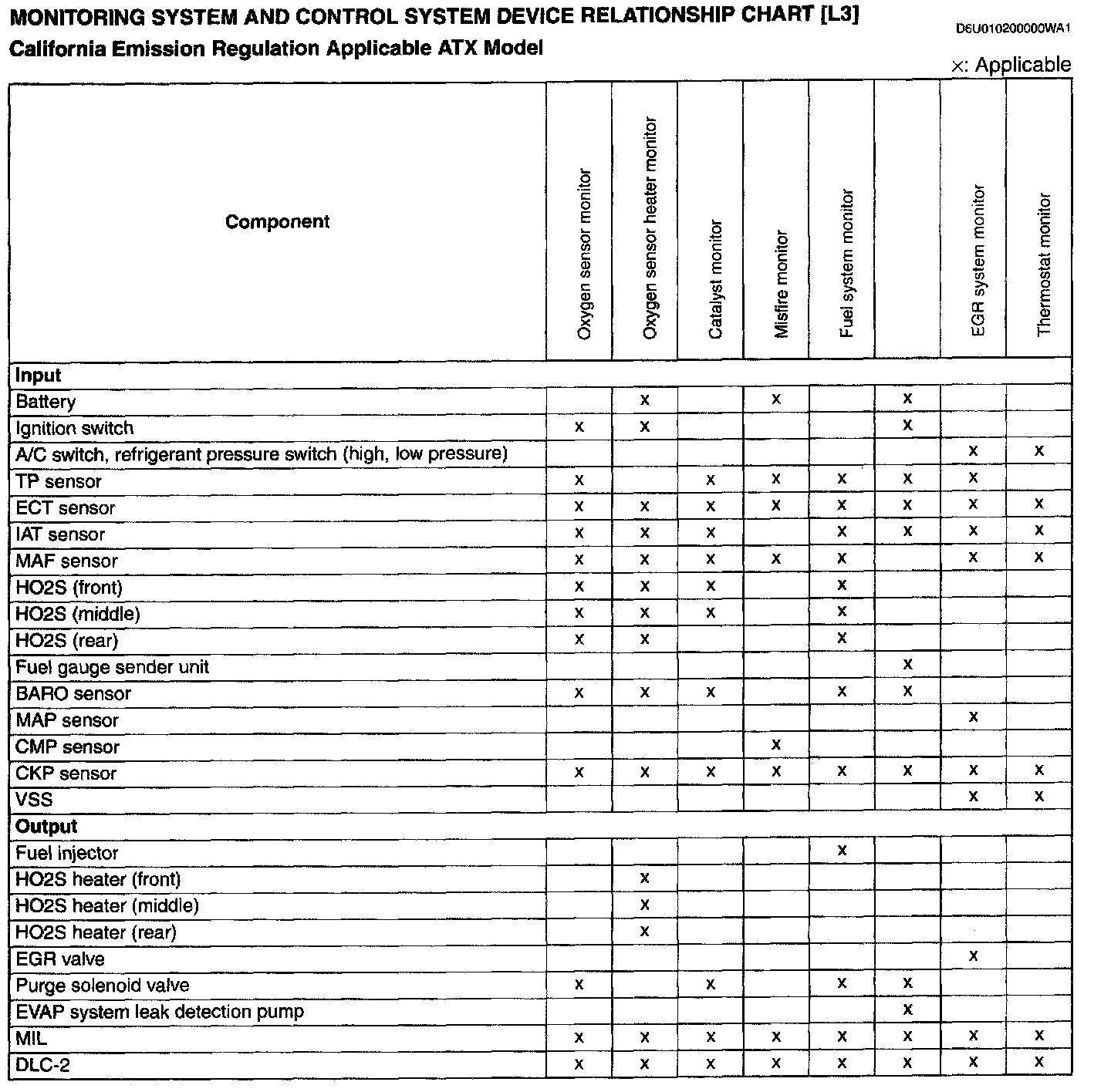

Monitoring System And Control System Device Relationship Chart:

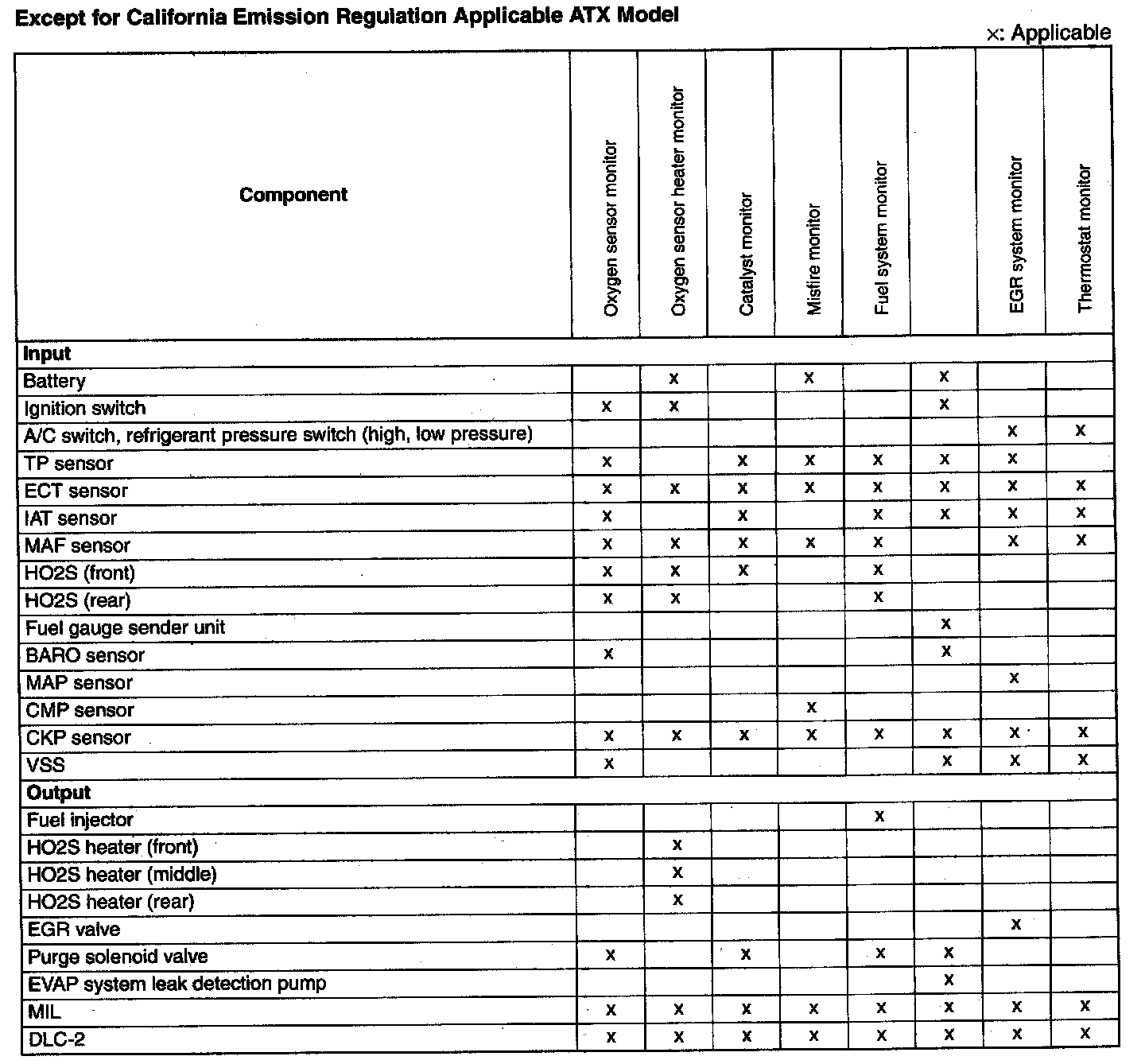

Monitoring System And Control System Device Relationship Chart:
