Vehicle Speedometer Sensor Inspection (Without ABS)

VEHICLE SPEEDOMETER SENSOR INSPECTION (WITHOUT ABS) [G35M-R]








1. Remove the vehicle speedometer sensor.

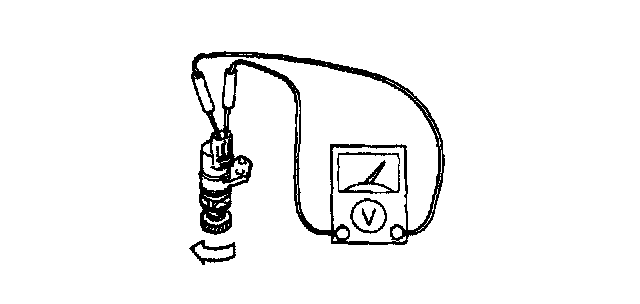

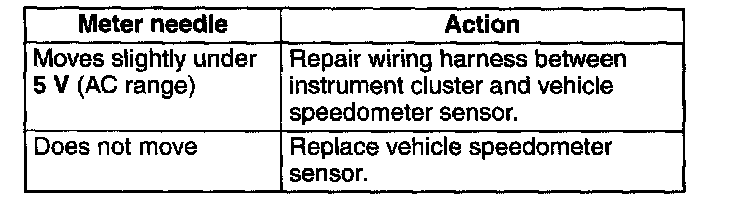

2. Measure voltage (AC range) between terminals of the vehicle speedometer sensor while the gear is turning.
3. Install the vehicle speedometer sensor.
