Except California Emission Regulation Applicable ATX Model

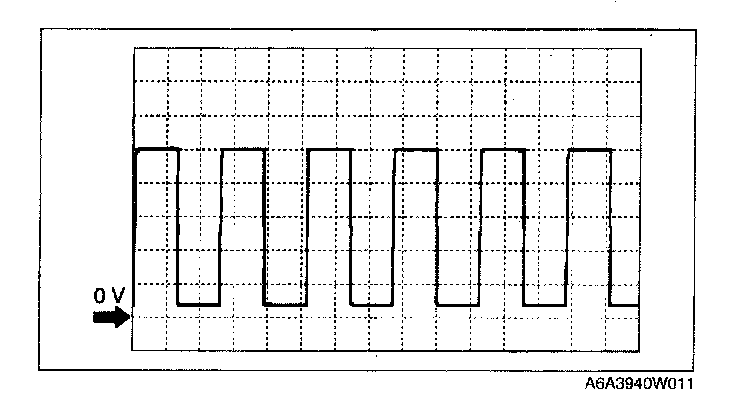

Inspection Using An Oscilloscope (Reference) (Except for California emission regulation applicable ATX model)VSS signal
- PCM terminals: 21(+) - 2AC(-)
- Oscilloscope setting: 1 V/DIV (Y), 10 ms/DIV (X), DC range
- Vehicle condition: Drive the vehicle with approx. 10 km/h {6.2 mph}
